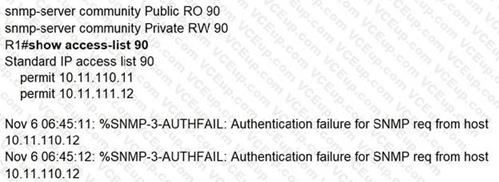

Refer to the exhibit.
A network administrator notices these console messages from host 10.11.110.12 originating from interface E1/0. The administrator considers this an unauthorized attempt to access SNMP on R1.
Which action prevents the attempts to reach R1 E1/0?
Configure IOS control plane protection using ACL 90 on interface E1/0
Configure IOS management plane protection using ACL 90 on interface E1/0
Create an inbound ACL on interface E1/0 to deny SNMP from host 10.11.110.12
Add a permit statement including the host 10.11.110.12 into ACL 90

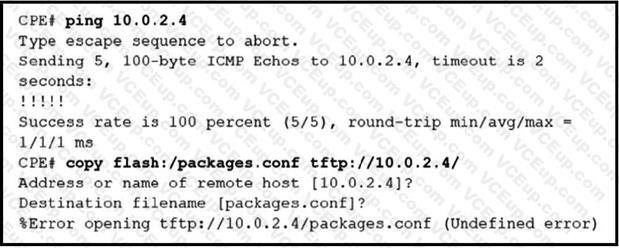

Refer to the exhibit.
The administrator is trying to overwrite an existing file on the TFTP server that was previously uploaded by another router. However, the attempt to update the file fails. Which action resolves this issue?
Make the packages.conf file executable by all on the TFTP server
Make the packages.conf file writable by all on the TFTP server
Make sure to run the TFTP service on the TFTP server
Make the TFTP folder writable by all on the TFTP server

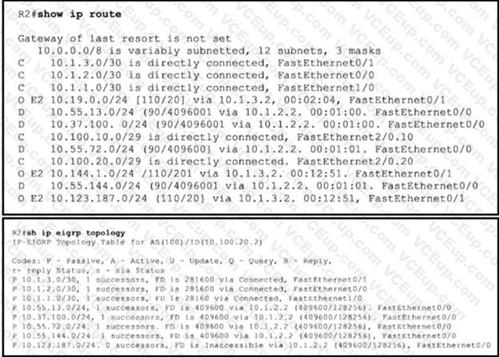

Refer to the exhibit.
Router R2 should be learning the route for 10.123.187.0/24 via EIGRP. Which action resolves the issue without introducing more issues?
Use distribute-list to modify the route as an internal EIGRP route
Redistribute the route in EIGRP with metric, delay, and reliability
Use distribute-list to filter the external router in OSPF
Remove route redistribution in R2 for this route in OSPF

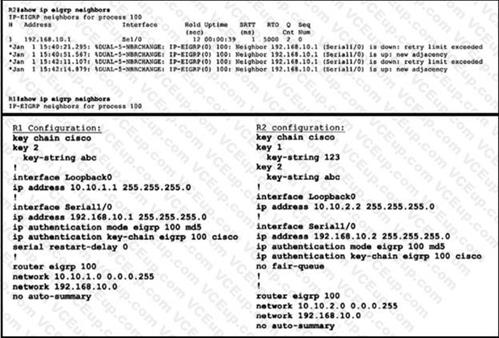

Refer to the exhibit.
R1 and R2 are configured for EIGRP peering using authentication and the neighbors failed to come up. Which action resolves the issue?
Configure a matching key-id number on both routers
Configure a matching lowest key-id on both routers
Configure a matching key-chain name on both routers
Configure a matching authentication type on both router

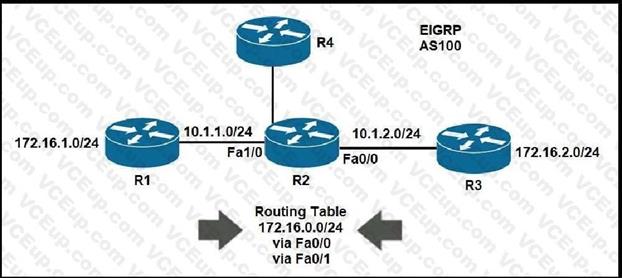

Refer to the exhibit.
R4 is experiencing packet drop when trying to reach 172.16.2.7 behind R2. Which action resolves the issue?
Insert a /16 floating static route on R2 toward R3 with metric 254
Insert a /24 floating static route on R2 toward R3 with metric 254
Enable auto summarization on all three routers R1, R2, and R3
Disable auto summarization on R2
Refer to the exhibit.
Packets arriving from source 209.165.200.215 must be sent with the precedence bit set to 1, and packets arriving from source 209.165.200.216 must be sent with the precedence bit set to 5. Which action resolves the issue?
set ip precedence critical in route-map Texas permit 10
set ip precedence critical in route-map Texas permit 20
set ip precedence immediate in route-map Texas permit 10
set ip precedence priority in route-map Texas permit 20

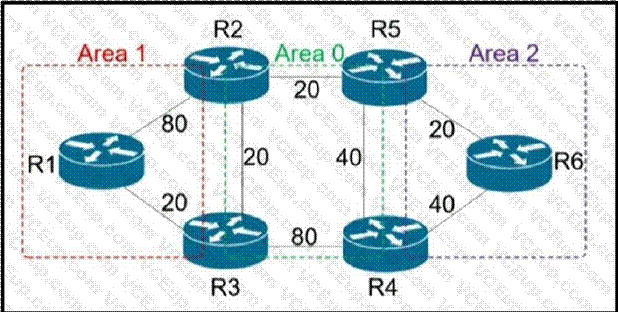

Refer to the exhibit.
R6 should reach R1 via R5>R2>R1. Which action resolves the issue?
Increase the cost to 61 between R2-R3-R1
Increase the cost to 61 between R2 and R3
Decrease the cost to 2 between R6-R5-R2
Decrease the cost to 41 between R2 and R1
Which method provides failure detection in BFD?
short duration, high overhead
short duration, low overhead
long duration, high overhead
long duration, low overhead

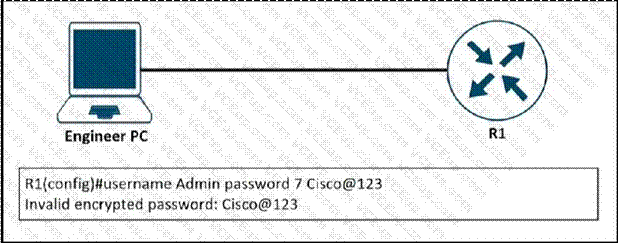

Refer to the exhibit.
An engineer is trying to add an encrypted user password that should not be visible in the router configuration. Which two configuration commands resolve the issue? (Choose two)
password encryption aes
username Admin password Cisco@maedeh motamedi
username Admin password 5 Cisco@maedeh motamedi
username Admin secret Cisco@maedeh motamedi
no service password-encryption
service password-encryption

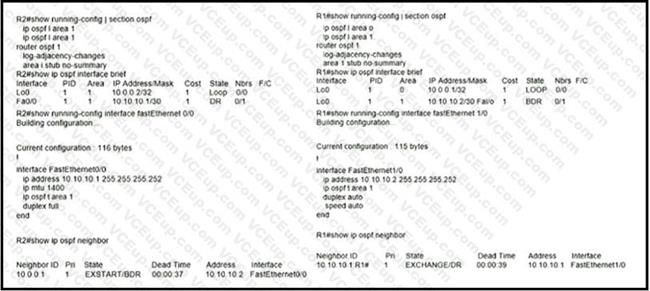

Refer to the exhibit.
Which action restores OSPF adjacency between R1 and R2?
Change the IP MTU of R1 Fa1/0 to 1300
Change the IP MTU of R2 Fa0/0 to 1300
Change the IP MTU of R1 Fa1/0 to 1500
Change the IP MTU of R2 Fa0/0 to 1500
