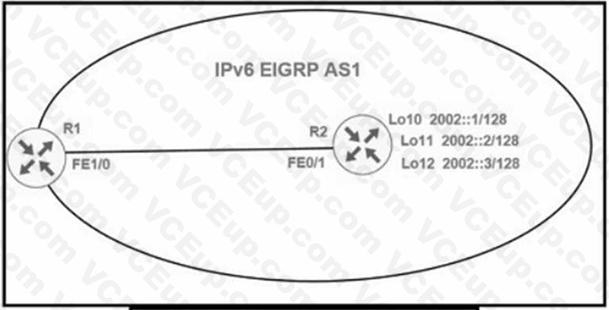

Refer to the exhibit.

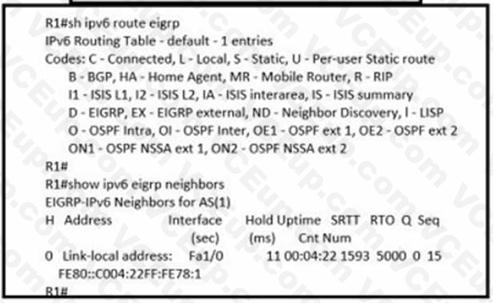

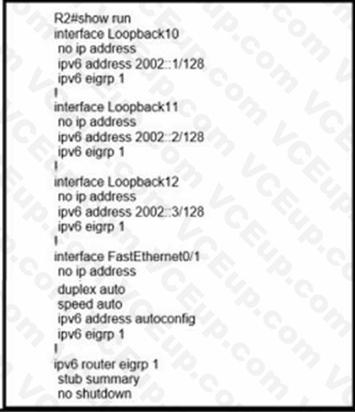

R1 cannot receive the R2 Interfaces with individual prefixes. What must be reconfigured to advertise R2 Interfaces to R1?
EIGRP process on R2 by removing the stub command Keyword summary
interface FastEthernet0/1 on R2 with an EIGRP summary for all three loopback prefixes
EIGRP process on R2 with the command stub summary receive-only
ElGRP process on R2 with the command stub summary connected
What is a characteristic of IPv6 RA Guard?
RA messages are allowed from the host port to the switch
It is unable to protect tunneled traffic
It filters rogue RA broadcasts from connected hosts
It is supported on the egress direction of the switch
Refer to the exhibit.

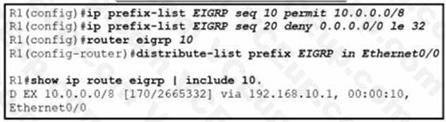

An engineer applies a prefix-list filter that filters most of the network 10 prefixes instead of allowing them. Which action resolves the issue?
Modify the ip prefix-list ElGRP seq 10 permit 10.0.0.0/8 le 9 command.
Modify the command Modify the Ip prefix-list ElGRP seq 10 permit 10.0.0.0/8 le 32 command.
Modify the Ip prefix-list ElGRP seq 20 permit 0.0.0.0/0 le 32 command.
Modify the ip prefix-list ElGRP seq 20 permit 10.0.0.0/8 ge 9 command
Refer to the exhibit.
Which action makes 10.1.3.2 the feasible successor to reach 10. 200. 1 0/24 for location S42T447E33F95?
Increase path bandwidth lower than 1011 2 and lower than 1012 2 between RtrA and the destination
Increase path bandwidth higher than 10.1 2 2 and lower than 101.1.2 between RtrA and the destination.
Increase path bandwidth higher than 1011 2 and lower than 1012 2 between RtrA and the destination
Increase path bandwidth higher than 10.1 2 2 and higher than 10.1.1.2 between RtrA and the destination

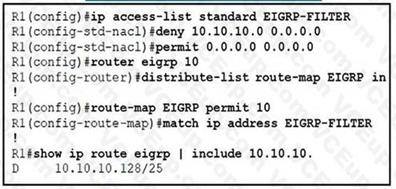

Refer to the exhibit.
Refer to lhe exhibit An engineer must filter EIGRP updates that are received to block all 10 10 10.0/24 prefixes The engineer tests the distribute list and finds one associated prefix. Which action resolves the issue?
There is a permit in the route map that allows this prefix A deny 20 statement is required with a match condition to match a new ACL that denies all prefixes
There is a permit in the ACL that allows this prefix into EI6RP. The ACL should be modified to deny 10.10.10.0 0.0.0.255.
There is a permit in the route map that allows this prefix A deny 20 statement is required with no match condition to block the prefix.
There is a permit in the ACL that allows this prefix into EIGRP. The ACL should be modified to deny 10.10.10.0 255.255.255.0.
Refer to the exhibit.

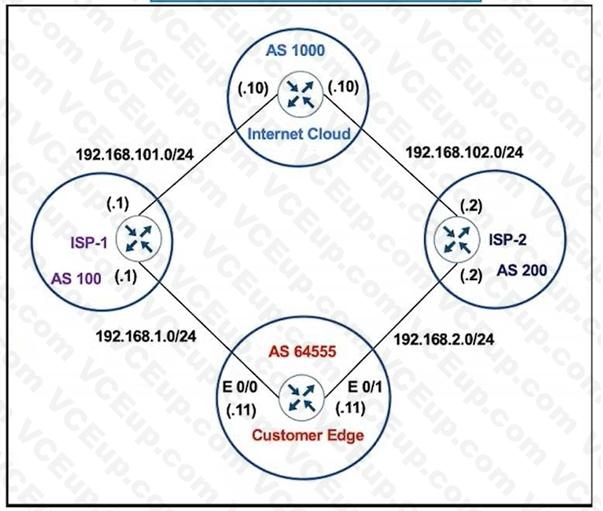

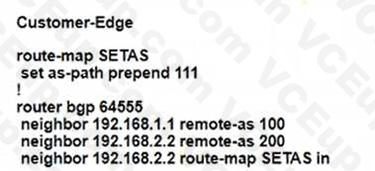

Refer lo lhe exhibit. The Customer Edge rouler wants to use AS 100 as the preferred ISP for all external routes and ISP-2 as a backup.
After this configuration, all the backup routes have disappeared from the BGP table on the Customer Edge router. Which set of configurations resolves the issue on the Customer Edge router?
Refer to the exhibit.

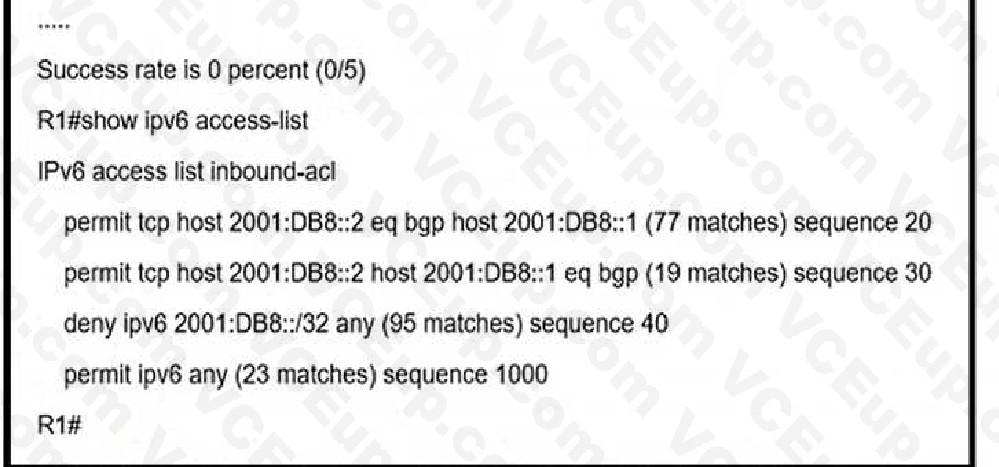

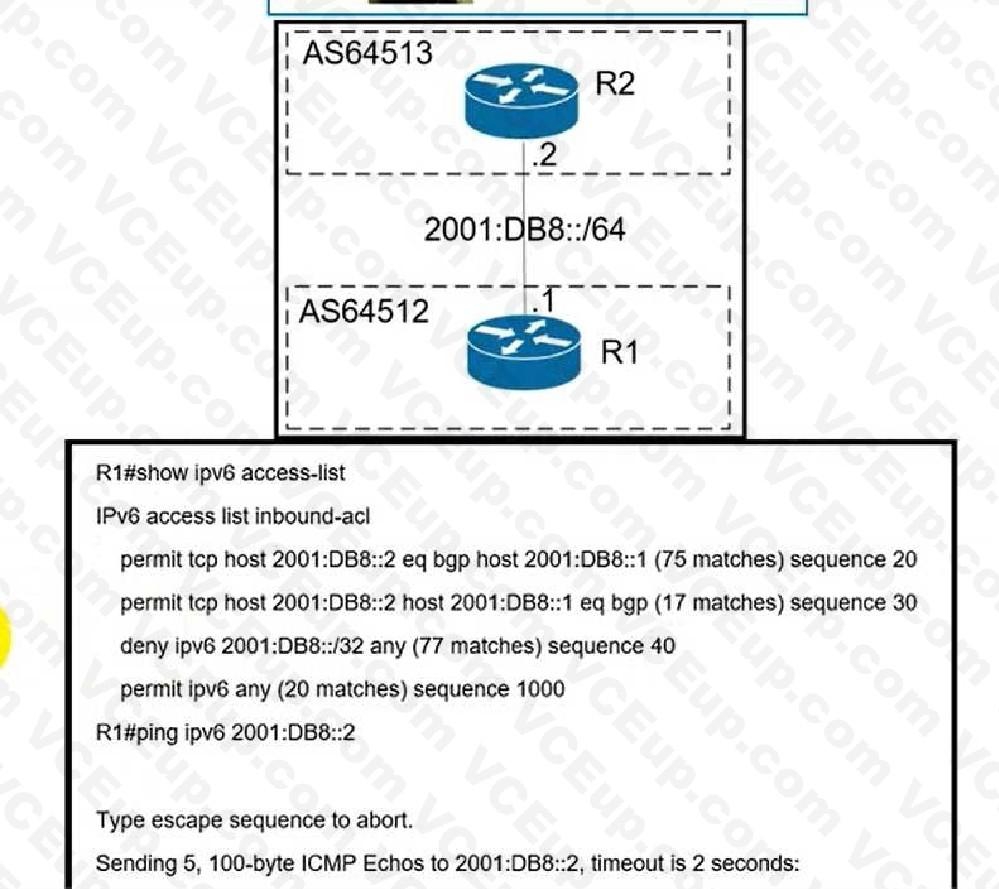

Refer to the exhibit. An engineer applied filter on R1 The interface flapped between R1 and R2 and cleaning the BGP session did not restore the BGP session and failed Which action must the engineer take to restore the BGP session from
R2 to R1?
Apply the IPv6 traffic filter in the outbound direction on the interface
ICMPv6 must be permitted by the IPv6 traffic filter
Enable the BGP session, which went down when the session was cleared.
Swap the source and destination IP addresses in the IPv6 traffic filter
What is the purpose of an OSPF sham-link?
to allow intra-area routing when OSPF is used as the PE-CE connection protocol in an MPLS VPN network
to correct OSPF backdoor routing when OSPF is used as the PE-CE connection protocol *i an MPLS VPN network
to correct OSPF backdoor routing when OSPF is used as the PE-PE connection protocol m an MPLS VPN network
to allow inter-area routing when OSPF is used as the PE-CE connection protocol in a MPLS VPN network

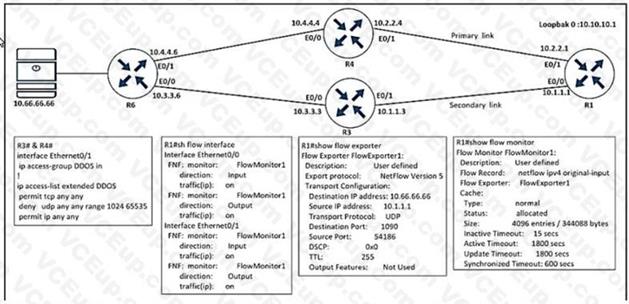

Refer to the exhibit.
Refer to the exhibit An engineer configured NetFlow but cannot receive the flows from R1 Which two configurations resolve the issue? (Choose two )
Refer to the exhibit.

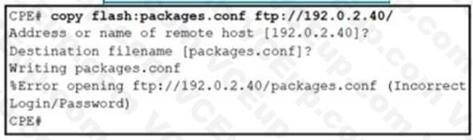

Refer to the exhibit. An administrator must upload the packages conf Me to an FTP server. However, the FTP server rejected anonymous service and required users to authenticate What are the two ways to resolve the issue? (Choose two.)
Use is ftp username and ip ftp password configuration commands to specify valid FTP server credentials.
Use the copy flash:packages.conf scp: command instead and enter the FTP server credentials when prompted.
Enter the FTP server credentials directly In the FTP URL using the ftp://username:passwordQ192.0.2.40/ syntax .
Create a user on the rooter matching the username and password on the FTP server and log in before attempting the copy
Use the copy flash-packages conf ftp: command instead and enter the FTP server credent-ais when prompted.
