Refer to the exhibit.
A network administrator is troubleshooting OSPF adjacency issue by going through the console logs in the router, but due to an overwhelming log message stream it is impossible to capture the problem Which two commands reduce console log messages to relevant OSPF neighbor problem details so that the issue can be resolved? (Choose two)
debug condition interface
debug condition ip
debug condition ospf neighbor
debug condition session-id ADJCHG
debug condition all
Refer to the exhibit.

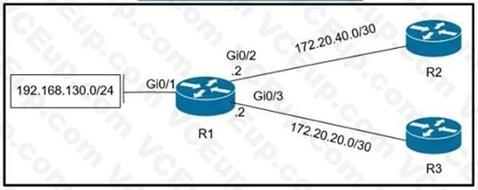

Which policy configuration on R1 forwards any traffic that is sourced from the 192 168 130 0'24 network to R2?
Refer to the exhibit.

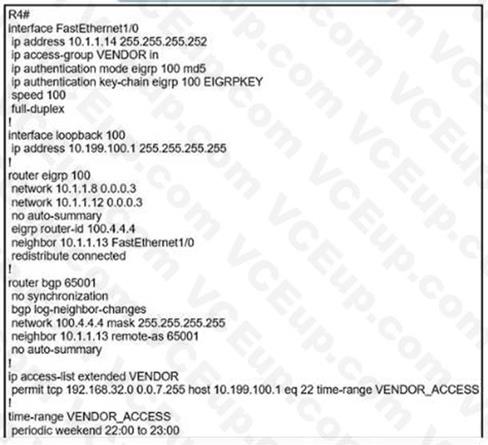

Refer to the exhibit A network engineer received a call from the vendor for a failed attempt to remotely log in to their managed rooter loopback interface from 192 168.40 15 Which action must the network engineer take to resolve the issue?
The IP access list VENDOR must be applied to interface loopback 100
The time-range configuration must be changed to use absolute instead of periodic
The EIGRP configuration must be updated to include a network statement for loopback 100
The source IP summarization must be updated to include the vendor source IP address
Refer to the exhibit.

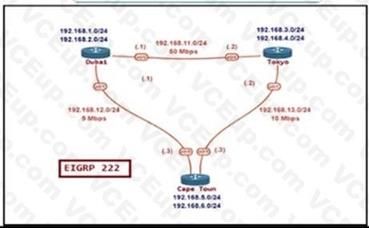

The network administrator must configure Cape Town to reach Dubai via Tokyo based on the speeds provided by the service provider. It was noticed that Cape Town is reaching Dubai directly and failed to meet the requirement. Which configuration fixes the issue?

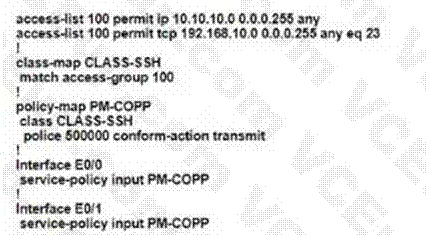

The network administrator configured the router for Control Plane Policrg so that inbound SSH traffic is policed to 500 kbps This policy must apply to traffic coming in from 101010 0<24 and 192 168 10.0/24 networks
The Control Rane Policing is not applied to SSH traffic and SSH is open to use any bandwidth available. Which configuration resolves this issue?
Refer to the exhibit.

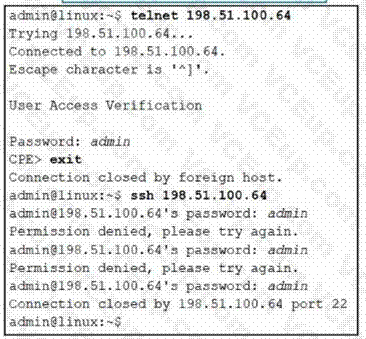

Refer to the exhibit. An administrator can log in to the device using Telnet but the attempts to log in to the same device using SSH with the same credentials fail Which action resolves this issue?
Configure SSH service on the router
Configure transport input all on the VTY lines to allow SSH
Configure to use the Telnet user database for SSH as well
Configure the VTY lines with login local
Refer to the exhibit.

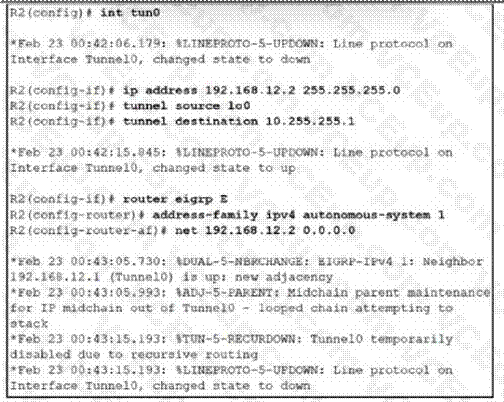

An administrator is configuring a GRE tunnel to establish an EIGRP neighbor to a remote router. The other tunnel endpoint is already configured. After applying the configuration as shown, the tunnel started flapping. Which action resolves the issue?
Stop sending a route matching the tunnel destination across the tunnel.
Modify the network command to use the Tunne10 Interface netmask.
Advertise the Loopback0 interface from R2 across the tunnel.
Readdress the IP network on the Tunne10 on both routers using the /31 netmask.
A network administrator is troubleshooting a failed AAA login issue on a Cisco Catalyst c3560 switch.
When the network administrator tries to log in with SSH using TACACS+ username and password credentials, the switch is no longer authenticating and is failing back to the local account. Which action resolves this issue?
Configure ip tacacs source-interface GigabitEthernet 1/1
Configure ip tacacs source-ip 192.168.100.55
Configure ip tacacs-server source-ip 192.168.100.55
Configure ip tacacs-server source-interface GigabitEthernet 1/1
Refer to the exhibit.

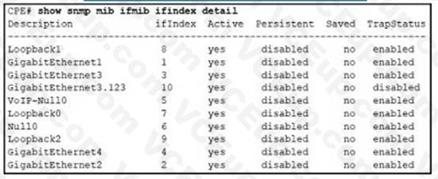

Refer to the exhibit. After reloading the router an administrator discovered that the interface utilization graphs displayed inconsistencies with their previous history in the NMS. Which action prevents this issue from occurring after another router reload in the future?
Rediscover all the router interfaces through SNMP after the router is reloaded
Save the router configuration to startup-config before reloading the router
Configure SNMP to use static OlDs referring to individual router interfaces
Configure SNMP interface index persistence on the router
Refer to the exhibit.

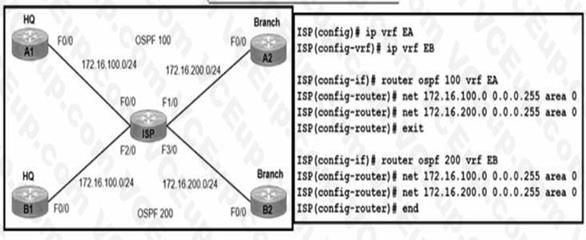

Refer to the exhibit. A network engineer is provisioning end-to-end traffic service for two different enterprise networks with these requirements The OSPF process must differ between customers on HQ and Branch office routers, and adjacencies should come up instantly.
The enterprise networks are connected with overlapping networks between HO and a branch office Which configuration meets the requirements for a customer site?
