Home / Cisco / 300-410

Cisco 300-410 Practice Test - Questions Answers, Page 45

Question list

List of questions

Question 441

(0)

Refer to the exhibit. Refer to the exhibit. A network engineer cannot remote access R3 using Telnet from switch S1. Which action resolves the issue?

Question 442

(0)

Refer to the exhibit. Refer to the exhibit. A customer reports that networks in the 10.0.1.0/24 space do not appear in the RIP database. What action resolves the issue?

Question 443

(0)

Refer to the exhibit. Refer to the exhibit. R1 must advertise all loopback interfaces IP addresses to neighbors, but EIGRP neighbors receive a summary route. Which action resolves the issue?

Question 444

(0)

Refer to the exhibit. Refer to the exhibit. An engineer cannot determine the time of the problem on R1 due to a mismatch between the router local clock and legs. Which command synchronizes the ti

Question 445

(0)

Refer to the exhibit. Refer to the exhibit. An engineer is investigating an OSPF issue reported by the Cisco DNA Assurance Center. Which action resolves the issue?

Question 446

(0)

What action is performed for untagged outgoing labels in an MPLS router?

Question 447

(0)

Refer to the exhibit. Routers R1, R2, R3, and R4 use EIGRP However, traffic always prefers R1 to R5 backup links in nonfailure scenarios. Which configuration resolves the issue?

Question 448

(0)

Refer to the exhibit. Refer to the exhibit. An engineer configured two ASBRs, 10.4.17.6 and 10.4.15.5, in an OSPF network to redistribute identical routes from BGR However, only prefixes from 10.

Question 449

(0)

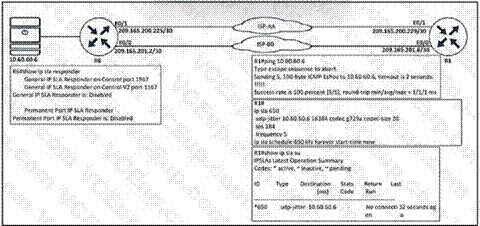

Refer to the exhibit. Refer to the exhibit. Which configuration resolves the IP SLA issue from R1 to the server?

Question 450

(0)

Refer to the exhibit. Refer to the exhibit. The IT manager received reports from users about slow application through network x. which action resolves the issue?

Question 441

Refer to the exhibit.

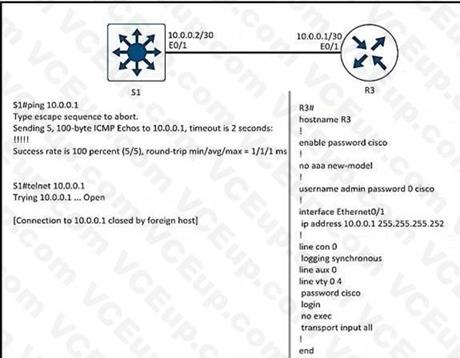

Refer to the exhibit. A network engineer cannot remote access R3 using Telnet from switch S1. Which action resolves the issue?

Allow the inbound connection via the exec command on R3.

Add the transport input telnet command on R3.

Allow to use the ssh -I admin 10.0.0.1 command on the switch.

Add the login admin command on the switch.

Show Answer Comment (0)

Question 442

Refer to the exhibit.

Refer to the exhibit. A customer reports that networks in the 10.0.1.0/24 space do not appear in the RIP database. What action resolves the issue?

Remove summarization of 10.0.0.078.

Permit 10.0.1.0/24 address in the ACL.

Remove ACL on R1 blocking 10.0.1.0/24 network.

Configure 10.0.1.0/24 network under RIP.

Show Answer Comment (0)

Question 443

Refer to the exhibit.

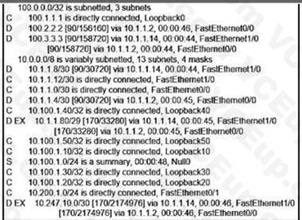

Refer to the exhibit. R1 must advertise all loopback interfaces IP addresses to neighbors, but EIGRP neighbors receive a summary route. Which action resolves the issue?

Redistribute connected routes into EIGRP Enable

EIGRP on loopback Interfaces.

Disable auto summarization on R1.

Remove the 10.100.1.0/24 static route.

Show Answer Comment (0)

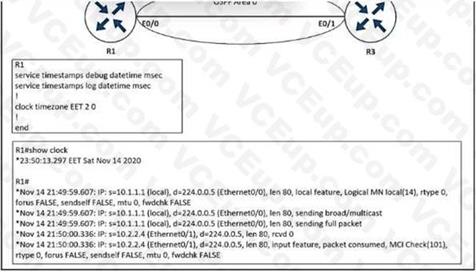

Refer to the exhibit. An engineer cannot determine the time of the problem on R1 due to a mismatch between the router local clock and legs. Which command synchronizes the time between new log entries and the local clock on R1?

service timestamps debug datetime msec show.timezone

service timestamps log datetime locatetime msec

service timestamps datebug datetime localtime msec

service timestamps log datetime msec show-timezone

Show Answer Comment (0)

Question 445

Refer to the exhibit.

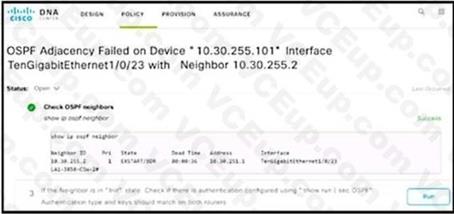

Refer to the exhibit. An engineer is investigating an OSPF issue reported by the Cisco DNA Assurance Center. Which action resolves the issue?

One of the neighbor links is down Bring the interface up by running shut and no shut

One of the interfaces is using the wrong MTU Match interface MTU on both links

An ACL entry blocking multicast on the interfaces Allow multicast through the interface ACL

One of the interfaces is using the wrong authentication Match interface authentication on both links

Show Answer Comment (0)

Question 446

What action is performed for untagged outgoing labels in an MPLS router?

Convert the incoming MPLS packet to an untagged packet and then do a FIB lookup

Convert the incoming MPLS packet to an untagged packet and then do a RIB lookup.

Convert the untagged packet to a labeled packet and forward it to the next router

Convert the incoming MPLS packet to an IP packet and forward it to the next router.

Show Answer Comment (0)

Question 447

Refer to the exhibit.

Routers R1, R2, R3, and R4 use EIGRP However, traffic always prefers R1 to R5 backup links in nonfailure scenarios. Which configuration resolves the issue?

Show Answer Comment (0)

Question 448

Refer to the exhibit.

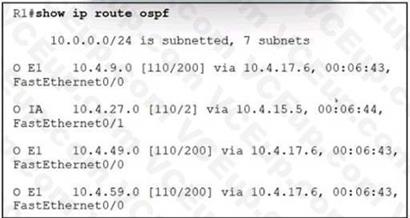

Refer to the exhibit. An engineer configured two ASBRs, 10.4.17.6 and 10.4.15.5, in an OSPF network to redistribute identical routes from BGR However, only prefixes from 10.4.17.6 are installed into the routing table on R1. Which action must the engineer take to achieve load sharing for the BGPoriginated prefixes?

The ASBRs are advertising the redistributed prefixes with the iBGP metric and must be modified to Type 1 on ASBR 10.4.17.6.

The ASBRs are advertising the redistributed prefixes with a different admin distance and must be changed to 110 on ASBR 10.4.15.5.

The admin distance of the prefixes must be adjusted to 20 on ASBR 10.4.15.5 to advertise prefixes to R1 identically from both ASBRs.

The ASBRs are advertising the redistributed prefixes as Type 1 and must be modified to Type 2

Show Answer Comment (0)
