An engineer is trying to log in to R1 via R3 loopback address. Which action resolves the issue?
Add transport input SCP
Add transport input none
Remove the IPv6 traffic filter from R1, which is blocking the Telnet.
Remove the IPv6 traffic from R1, which is blocking the SSH
Refer to the exhibit.
A network administrator configured name resolution for IPv6 traffic to be allowed through an inbound access list. After the access list is applied to resolve the issue, name resolution still did not work. Which action does the network administrator take to resolve the name resolution problem?
Remove ipv6 inspect ipv6-firewall in from interface gi0/1
Add permit udp any eq domain any log in the access list.
inspect ipv6 inspect name ipv6-firewall udp 53 in global config.
Add permit any eq domain 53 any log in the access list.
Refer to the exhibit.
The administrator configured the network devices for end reachability, but the ASBRs are not propagating routes to each other. Which set of configuration resolved this issue?

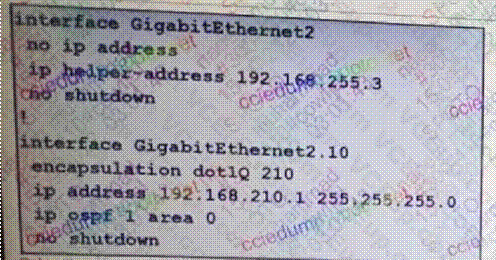

Refer to the exhibit.
With the partial configuration of a router-on-a-stick. Clients in VLAN 10 on Gi2 cannot obtain IP configuration from the central DHP server is reachable by a successful ping from the route. Which action resolves the issue?
Configure the ip/ip/dhcp pool f and network 192.168..210.0.255.255/0 commands.
Configure the ip header-address 192-168.265.3 command on the Gi2 10 subinterface.
Configure a valid IP address on the Gi2 interface so that DHCP requests can be forwarded.
Configure the Ip dhcp excluded-address 192.168.255.3 command on the Gi1.10 subinterface.
Exhibit.
A network is configured for EIGR equal-cost balancing, but the traffic destined to the servers is not load balance. .....resolve the issue?
208 oon R3 E0/0
120 on R4 E0/1
120/on R3 E0/1
2200 on R4 E0/1
A network administrator successfully established a DMVPN tunnel with one hub and two spokes using EIGRP. One of the requirements was to enable spoke-to-spoke tunnels through the hub router using EIGRP. Which configuration command must the engineer configure to meet the requirement?
no ip eigrp 1 mode multipoint
no ip eigrp 1 split-horizon
no ip eigrp 1 tunnel-redirect
no ip eigrp 1 mode mgre

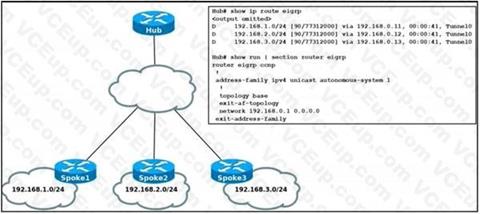

Refer to the exhibit.
Spoke routers do not learn about each other's routes in the DMVPN Phase2 network. Which action resolves the issue?
Remove default route from spoke routers to establish a spoke-to-spoke tunnel.
Configure a static route in each spoke to establish a spoke-to-spoke tunnel.
Rectify incorrect wildcard mask configured on the hub router network command.
Disable EIGRP split horizon on the TunnelO interface of the hub router.

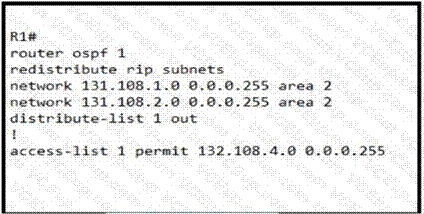

Refer to the exhibit.
The R1 OSPF neighbor is not receiving type 5 external LSAs for 132.108.2.0/24 and 132.108.3.0/24 networks. Which configuration command resolves the issue?
access-list 1 permit 132.108.0.0 0.0.1.255
access-list 1 permit 132.108.0.0 0.0.3.255
access-list 1 permit 132.108.2.0 0.0.0.255
access-list 1 permit 132.108.4.0 0.0.3.255

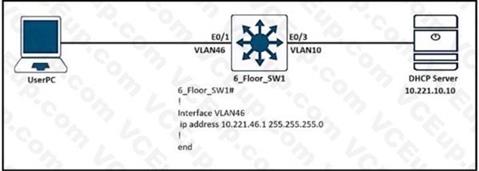

Refer to the exhibit.
Users in VLAN46 cannot get the IP from the DHCP server. Assume that all the parameters are configured properly in VLAN 10 and on the DHCP server Which command on interlace VLAN46 allows users to receive IP from the DHCP server?
ip dhcp-addreos 10.221.10.10
ip dhcp server 10.221.10.10
ip helper-addrets 10.221.10.10
ip dhcp relay information trust-all
Refer to the exhibit.
The none area 0 routers in OSPF still receive more specific routes of 10.1.1.0.10.1.2.0.10.1.3.0 from area 0. Which action resolves the issue?
Configure route summarization on OSPF-enabled interfaces.
Summarize by using the summary-address 10.1.0.0 255.255.252.0 command.
Summarize by using the area range command on ABRs
Configure the summary-address 10.1.0.0 255.255.252.0 command under OSPF process.
