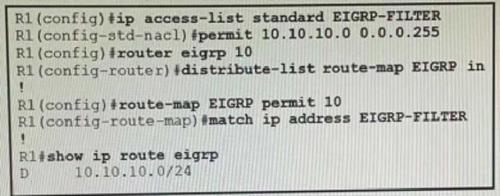

Refer to the exhibit.
An engineer must filter incoming EIGRP updates to allow only a set of specific prefixes. The distribute list is tested, and it filters out all routes except network 10.10.10.0/24. How should the engineer temporarily allow all prefixes to be learned by the routers again without adjusting the existing access list?
A permit 20 statement should be added before completing the ACL with the required prefixes, and then the permit 20 statement can be removed.
A permit any statement should be added before completing the ACL with the required prefixes and then the permit any statement can be removed.
A continue statement should be added within the permit 10 statement before completing the ACL with the required prefixes, and then the continue statement can be removed.
An extended access list must be used instead of a standard access list to accomplish the task
A network engineer receives a fault ticket about traffic drops from BANK SITE to BANK
Users can reach BANK SITE Y from router RA as a source.
Routers RB and RD are acting as route reflectors.
Which configuration resolves the issue?
RC(config)#router bgp 65201
RC(config-router)#neighbor 10.10.10.4 route-reflector-client
RF(config)#router bgp 65201
RF(config-router)#neighbor 10.10.10.6 route-reflector-client
RC(config)#router bgp 65201
RC(config-router)#neighbor 10.10.10.2 route-reflector-client
RB(config)router bgp 65201
RB(config-router)#neighbor 10.10.10.3 route-reflector-client

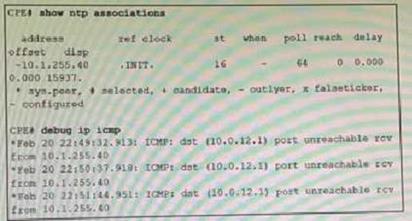

Refer to the exhibit.
An administrator is troubleshooting a time synchronization problem for the router time to another Cisco IOS XE-based device that has recently undergone hardening. Which action resolves the issue?
Allow NTP in the ingress ACL on 10.1.225.40 by permitting UDP destined to port 123.
Ensure that he CPE router has a valid route to 10.1.255. 40 for NTP and rectify if not reachable.
NTP service is disabled and must be enabled on 10.1.225.40.
Allow NTP in the ingress ACL on 10.1.255.40 by permitting TCP destined to port 123.

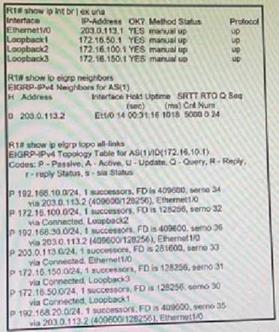

Refer to the exhibit.
Routers R1 and R2 have established a network adjacency using EIGRP, and both routers are advertising subnets to its neighbor. After issuing the show ip EIGRP topology all-links command in R1, some prefixes are no showing R2 as a successor. Which action resolves the issue?
Rectify the incorrect router ID in R2.
Enable split-horizon.
Configure the network statement on the neighbor.
Resolve the incorrect metric on the link.
How does LDP operate in an MPLS network?
When topology changes occur such as a router failure, LDP generates peer discovery messages that terminate the LDP season to propagate an LSP change.
When an adjacent LSR receives LDP discovery messages. TCP two-way handshake ensures that the LDP session has unidirectional connectivity.
Peer routers establish the LDP session, and the LDP neighbors maintain and terminate the session by exchanging messages
LDP notification messages allow LERs to exchange label information to determine the next hops within a particular LSP.

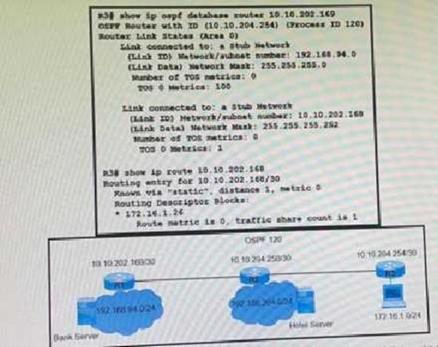

Refer to the exhibit.
A network engineer finds that PC1 is accessing the hotel website to do the booking but fails to make payment. Which action resolves the issue?
Allow stub network 10.10.202.168/30 on router R3 OSPF.
Decrease the AD to 5 OSPF route 192.168.94.0 on R1.
Increase the AD to 200 of static route 192.168.94.0 on R3.
Configure a reverse route on R1 for PC1 172.16.1.0/24.
Refer to the exhibit.
A customer reports that user traffic of bank XYZ to the AAA server is not using the primary path via the R3-R2 link. The network team observes:
No fiber is cut on links R2 and R3.
As101 and AS 201 routers established BGP peering.
Which configuration resolves the issue?

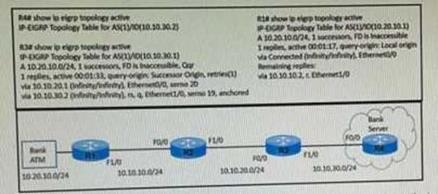

Refer to the exhibit.
A bank ATM site has difficulty connecting with the bank server. A network engineer troubleshoots the issue and finds that R4 has no active route to the bank ATM site. Which action resolves the issue?
Advertise 10.10.30.0/24 subnet in R1 EIGRP AS.
EIGRP peering between R3 and R4 to be fixed.
EIGRP peering between R1 and R2 to be fixed.
Advertise 10.10.30.0/24 subnet in R3 EIGRP AS.
Refer to the exhibit.
An engineer configures SW101 to send OSPFv3 interfaces state change messages to the server.
However, only some OSPFv3 errors are being recorded. which organization resolves the ..?
snmp-server enable traps ospfv3 state-change if-state-change
snmp-server-enable traps ospfv3 state-change restart-status-change
snmp-server-enable traps ospfv3 state-change neighbor-state-change.
snmp-server-enable traps ospfv3 state-change if-state-change neighbor-state-change
Refer to the exhibit.
The security department recently installed a monitoring device between routers R3 and R5, which a loss of network connectivity for users connected to R5. Troubleshooting revealed that the monitoring device cannot forward multicast packets. The team already updated R5 with the correct configuration. Which configuration must be implemented on R3 to resolve the problem by ensuring R3 as the DR for the R3-R5 segment?
