Users report issues with reachability between areas as soon as an engineer configured summary routes between areas in a multiple area OSPF autonomous system. Which action resolves the issue?
Configure the summary-address command on the ASBR.
Configure the summary-address command on the ABR.
Configure the area range command on the ABR.
Configure the area range command on the ASBR.
A network administrator is troubleshooting a high utilization issue on the route processor of a router that was reported by NMS The administrator logged into the router to check the control plane policing and observed that the BGP process is dropping a high number of routing packets and causing thousands of routes to recalculate frequently. Which solution resolves this issue?
Police the cir for BGP, conform-action transmit, and exceed action transmit.
Shape the pir for BGP, conform-action set-prec-transmit, and exceed action set-frde-transmit.
Shape the cir for BGP. conform-action transmit, and exceed action transmit.
Police the pir for BGP, conform-action set-prec-transmit, and exceed action set-clp-transmit.

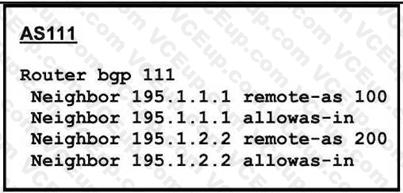

Refer to the exhibit.
AS111 is receiving its own routes from AS200 causing a loop in the network. Which configuration provides loop prevention?
Refer to the exhibit.
Which set of commands restore reachability to loopback0?
Refer to the exhibit.
When the FastEthemet0/1 goes down, the route to 172.29.0 0/16 via 192.168.253 2 is not installed in the RIB. Which action resolves the issue?
Configure reported distance greater than the feasible distance
Configure feasible distance greater than the successor's feasible distance.
Configure reported distance greater than the successor's feasible distance.
Configure feasible distance greater than the reported distance

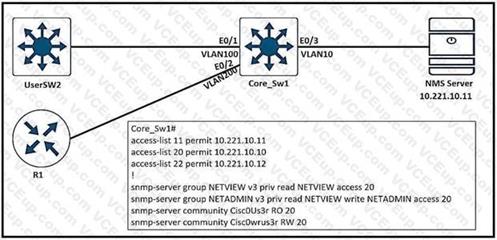

An engineer configured SNMP communities on the Core Sw1, but the SNMP server cannot obtain information from Core_Sw1.
Which configuration resolves this issue?
access-list 20 permit 10.221.10.12
snmp-server group NETVIEW v2c priv read NETVIEW access 20
snmp-server group NETADMIN v3 priv read NETVIEW write NETADMIN access 22
access-list 20 permit 10.221.10.11
IPv6 is enabled in the infrastructure to support customers with an IPv6 network over WAN and to connect the head office to branch offices in the local network. One of the customers is already running IPv6 and wants to enable IPv6 over the DMVPN network infrastructure between the headend and branch sites. Which configuration command must be applied to establish an mGRE IPv6 tunnel neighborship?
tunnel protection mode ipv6
ipv6 unicast-routing
ipv6 nhrp holdtime 30
tunnel mode gre multipoint ipv6
Refer to the exhibit.
An engineer is troubleshooting failed access by contractors to the business application server via Telnet or HTTP during the weekend. Which configuration resolves the issue?

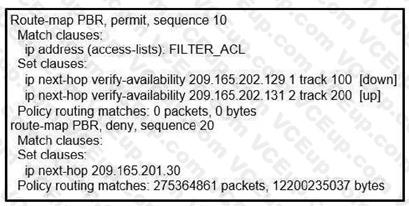

Refer to the exhibit.
An engineer has configured policy-based routing and applied the configured to the correct interface.
How is the configuration applied to the traffic that matches the access list?
It is sent to 209.165.202.131.
It is sent to 209.165.202.129.
It is dropped.
It is forwarded using the routing table lookup.
How is VPN routing information distributed in an MPLS network?
The top level of the customer data packet directs it to the correct CE device
It is established using VPN IPsec peers.
It is controlled using of VPN target communities.
It is controlled through the use of RD.
