Refer to the exhibit.

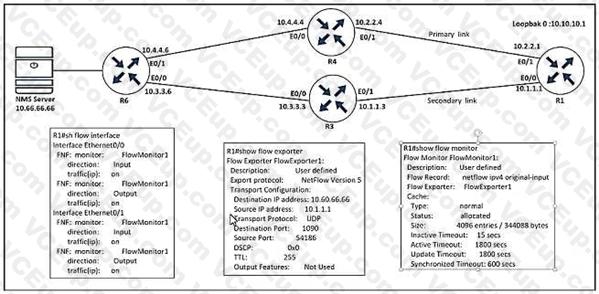

Refer to the exhibit. An engineer configured NetFlow on R1, but the flows do not reach the NMS server from R1. Which configuration resolves this Issue?
Option A
Option B
Option C
Option D
Refer to the exhibit.

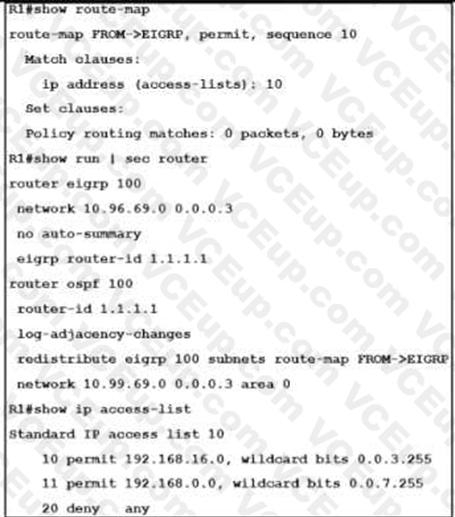

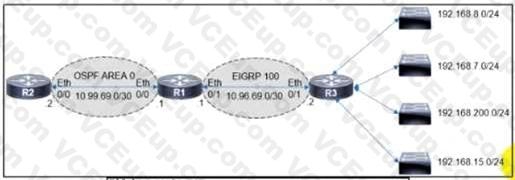

Refer to the exhibit The engineer configured route redistribution in the network but soon received reports that R2 cannot access 192 168 7 0/24 and 192 168 15 0/24 subnets Which configuration resolves the issue?
Option A
Option B
Option C
Option D
An engineer received a ticket about a router that has reloaded. The monitoring system graphs show different traffic patterns between logical and physical interfaces when the router is rebooted. Which action resolves the issue?
Configure the snmp ifindex persist command globally.
Clear the logical interfaces with snmp ifindex clear command
Configure the snmp ifindex persist command on the physical interfaces.
Trigger a new snmpwalk from the monitoring system to synchronize interface OlDs

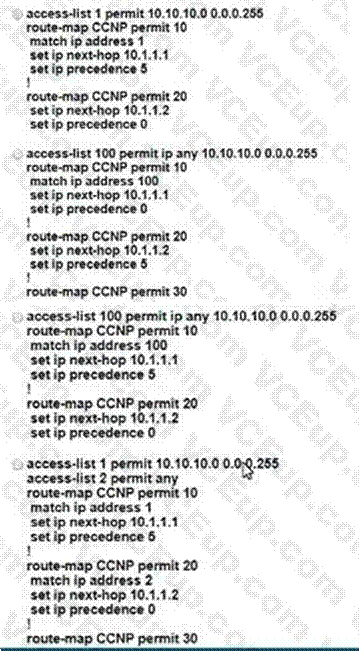

An engineer configures PBR en R5 and wants to create a policy that matches traffic destined toward 10.10.10.0/24 and forwards it toward 10.1.1 1. This traffic must also have its IP precedence set to 5.
All other traffic should be forwarded toward 10.1.1.2 and have its IP precedence set to 0. Which configuration meets the requirements?
Option A
Option B
Option C
Option D
Refer to the exhibit.

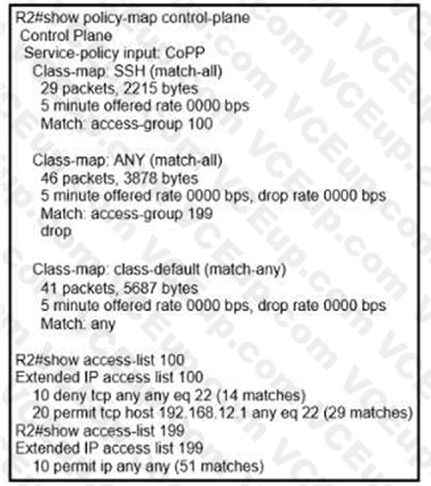

Refer to the exhibit. Which action limits the access to R2 from 192.168.12.1?
Swap sequence 10 with sequence 20 in access-list 100.
Modify sequence 20 to permit tcp host 192.168.12.1 eq 22 any to access-list 100
Swap sequence 20 with sequence 10 in access-list 100
Modify sequence 10 to deny tcp any eq 22 any to access-list 100.
Refer to the exhibit.

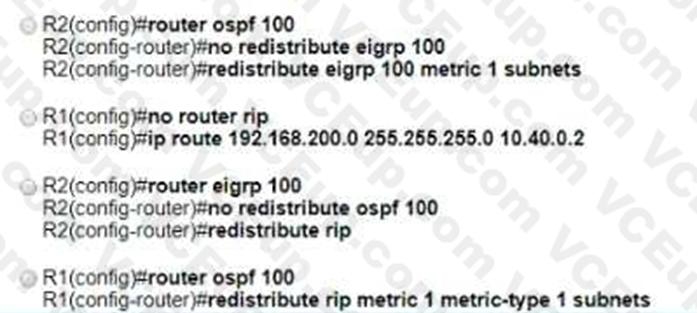

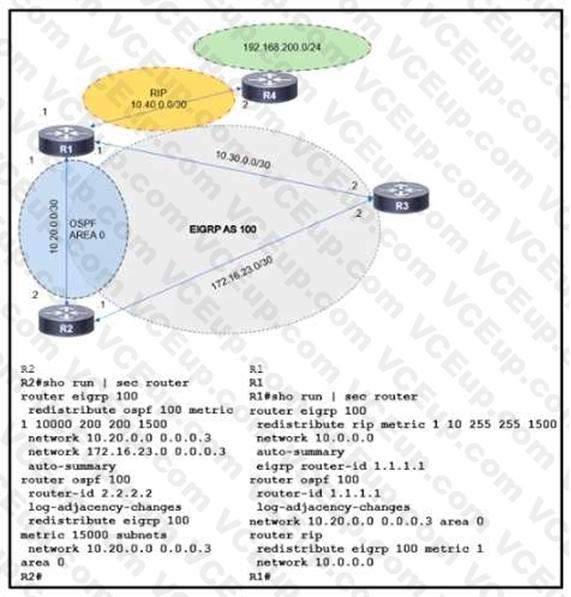

Refer to the exhibit The route to 192 168 200 0 is flapping between R1 and R2 Which set of configuration changes resolves the flapping route?
Option A
Option B
Option C
Option D
Refer to the exhibit.

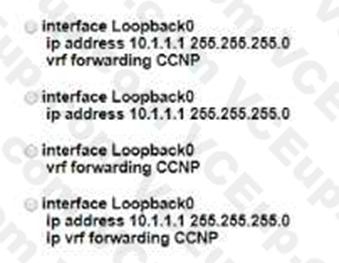

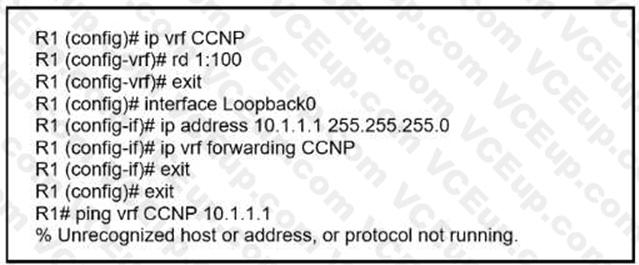

Refer to the exhibit Which command must be configured to make VRF CCNP work?
Option A
Option B
Option C
Option D
Refer to the exhibit.

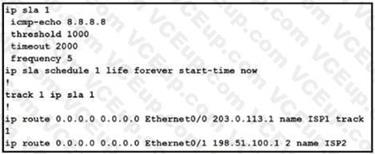

Refer to the exhibit. After recovering from a power failure. Ethernet0/1 stayed down while Ethernet0/0 returned to the up/up state The default route through ISP1 was not reinstated m the routing table until Ethernet0/1 also came up Which action resolves the issue?
Reference the track object 1 in both static default routes
Remove the references to the interface names from both static default routes
Configure the default route through ISP1 with a higher administrative distance than 2.
Add a static route to the 8 8.8 8/32 destination through the next hop 203.0.113.1
Refer to the exhibit.

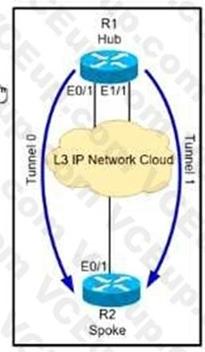

Refer to me exhibit. The hub and spoke are connected via two DMVPN tunnel interfaces The NHRP is configured and the tunnels are detected on the hub and the spoke Which configuration command adds an IPsec profile on both tunnel interfaces to encrypt traffic?
tunnel protection ipsec profile DMVPN multipoint
tunnel protection ipsec profile DMVPN tunnel1
tunnel protection ipsec profile DMVPN shared
tunnel protection ipsec profile DMVPN unique
Refer to the exhibit.

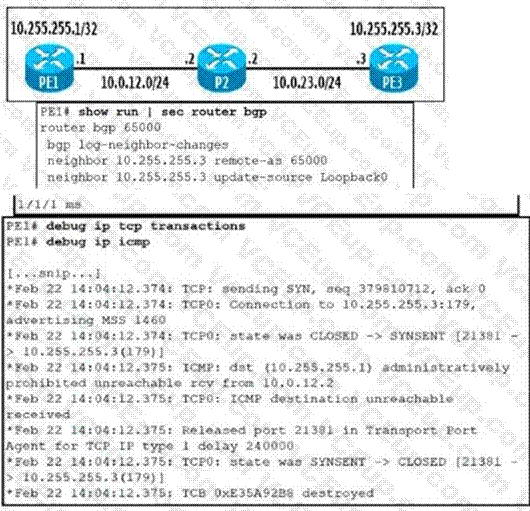

Refer to the exhibit. The administrator is troubleshooting a BGP peering between PE1 and PE3 that is unable to establish Which action resolves the issue?
P2 must have a route to PE3 to establish a BGP session to PE1
Disable sending ICMP unreachables on P2 to allow PE1 to establish a session with PE3
Ensure that the PE3 loopback address is used as a source for BGP peering to PE1
Remove the traffic filtering rules on P2 blocking the BGP communication between PE1 and PE3
