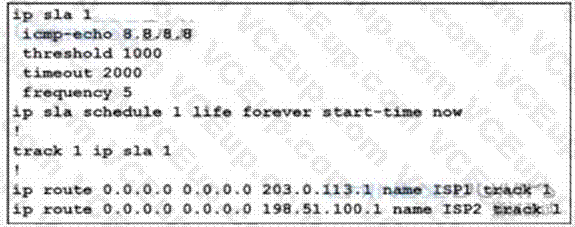

Refer to the exhibit.
An administrator configures a router to stop using a particular default route if the DNS server 8.8.8.8 is not reachable through that route. However, this configuration did not work as desired and the default route still works even if the DNS server 8.8.8 8 is unreachable. Which two configuration changes resolve the issue? (Choose two.)
Configure two static routes for the 8.8.8.8/32 destination to match the IP SLA probe for each ISP.
Associate every IP SLA probe with the proper WAN address of the router.
Reference the proper exit interfaces along with the next hops in both static default routes.
Use a separate track object to reference the existing IP SLA 1 probe for every static route.
Use a separate IP SLA probe and track object for every static route

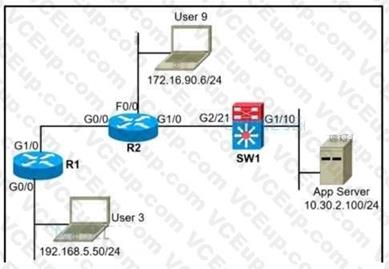

Refer to the exhibit.
A network administrator must block ping from user 3 to the App Server only. An inbound standard access list is applied to R1 interface G0/0 to block ping. The network administrator was notified that user 3 cannot even ping user 9 anymore.
Where must the access list be applied in the outgoing direction to resolve the issue?
R2 interface G1/0
R2 interface GO/0
SW1 interface G1/10
SW1 interface G2/21

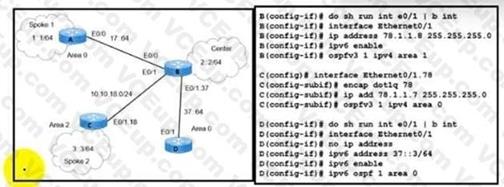

Refer to the exhibit.
Refer to the exhibit. A network engineer receives a report that Spoke 1 users can perform bank transactions with the server located at the Center site, but Spoke 2 users cannot. Which action resolves the issue?
Configure the Spoke 2 users IP on the router B OSPF domain
Configure encapsulation dot1q 78 on the router C interface.
Configure IPv6 on the routers B and C interfaces
Configure OSPFv2 on the routers B and C interfaces

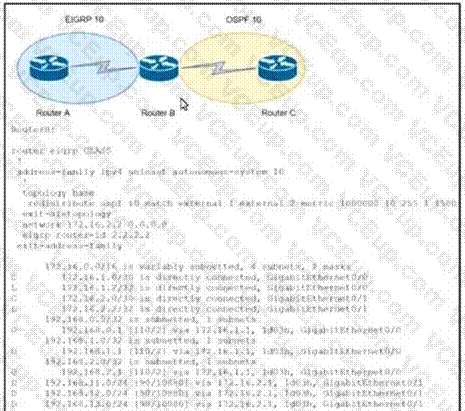

Refer to the exhibit.
Refer to the exhibit. An engineer configured route exchange between two different companies for a migration project EIGRP routes were learned in router C but no OSPF routes were learned in router A. Which configuration allows router A to receive OSPF routes?
Option A
Option B
Option C
Option D
A network administrator cannot connect to a device via SSH. The line vty configuration is as follows:
Which action resolves this issue?
Increase the session timeout
Change the stopbits to 10.
Configure the transport input SSH
initialize the SSH key

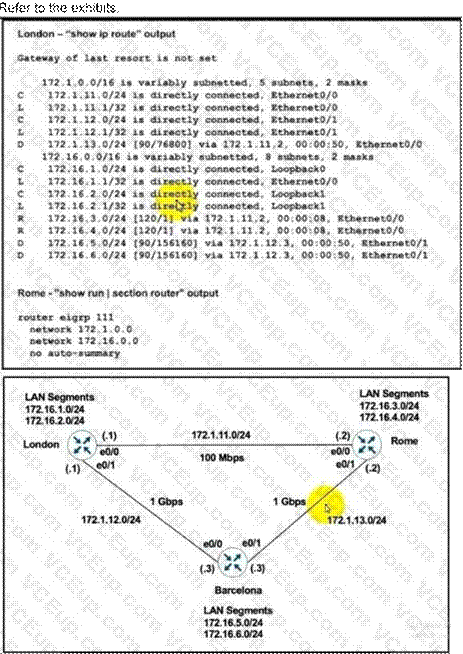

Refer to the exhibits.
London must reach Rome using a faster path via EIGRP if all the links are up but it failed to take this path Which action resolves the issue?
Increase the bandwidth of the link between London and Barcelona
Use the network statement on London to inject the 172 16 X 0/24 networks into EIGRP.
Change the administrative distance of RIP to 150
Use the network statement on Rome to inject the 172 16 X 0/24 networks into EIGRP

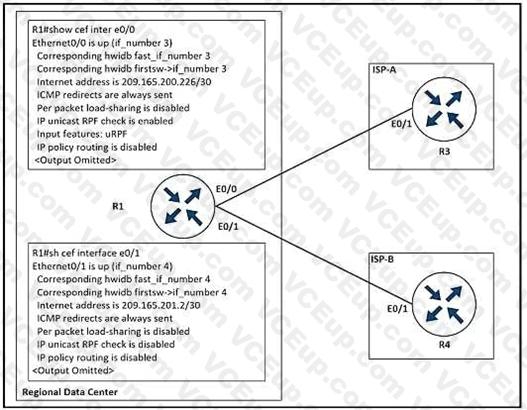

Refer to the exhibit.
Refer to the exhibit. The company implemented uRPF to address an antispoofing attack. A network engineer received a call from the IT security department that the regional data center is under an IP attack Which configuration must be implemented on R1 to resolve this issue?

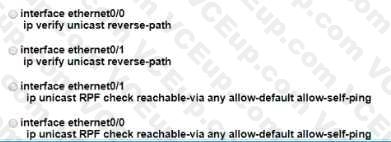

Option A
Option B
Option C
Option D
What is a function of BFD?
peer recovery after a Layer 3 protocol adjacency failure
peer recovery after a Layer 2 adjacency failure
failure detection independent of routing protocols and media types
failure detection dependent on routing protocols and media types

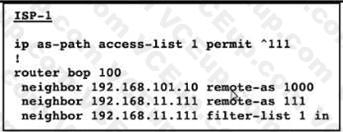

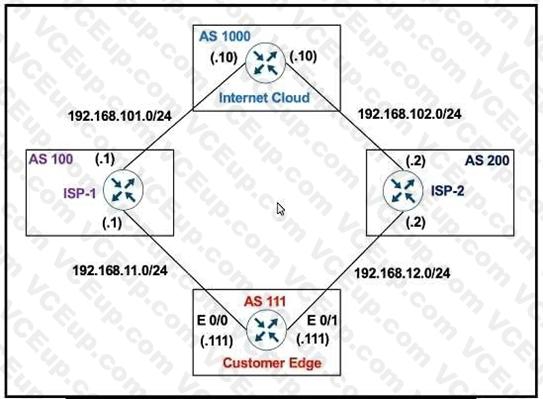

Refer to the exhibit.
Refer to the exhibit. AS 111 mut not be used as a transit AS, but ISP-1 is getting ISP-2 routes from AS 111. Which configuration stops Customer AS from being used as a transit path on ISP-1?
ip as-path access-list 1 permit ^$
ip as-path access-list 1 permit_111_
ip as-path access-list 1 permit."
ip as-path access-list 1 permit ^111$

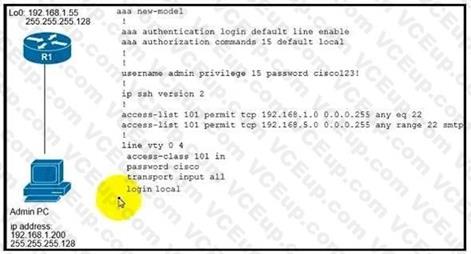

Refer to the exhibit.
Refer to the exhibit. An engineer configured user login based on authentication database on the router, but no one can log into the router. Which configuration resolves the issue?
aaa authentication login default enable
aaa authorization network default local
aaa authentication login default local
aaa authorization exec default local
