Question 591

(0)

Refer to the exhibit. Refer to the exhibit. R1 and R2 are directly connected, but the BGP session does not establish. Which action must be taken to build an eBGP session?

Question 592

(0)

If AP power level is increased from 25 mW to 100 mW. what is the power difference in dBm?

Question 593

(0)

Which signal strength and noise values meet the minimum SNR for voice networks?

Question 594

(0)

Which two methods are used by an AP that is typing to discover a wireless LAN controller? (Choose two.)

Question 595

(0)

SIMULATION Configure HSRP between DISTRO-SW1 and DISTRO-SW2 on VLAN 100 for hosts connected to ACCESSSW1 to achieve these goals:

Question 596

(0)

DRAG DROP Drag and drop the characteristics from the left onto the orchestration tool classifications on the right.

Question 597

(0)

Which two security features are available when implementing NTP? (Choose two.)

Question 598

(0)

Refer to the exhibit. Hosts PC1 PC2 and PC3 must access resources on Serve 1. An engineer configures NAT on Router R1 1e enable the communication and enters the show command to verify operation W

Question 599

(0)

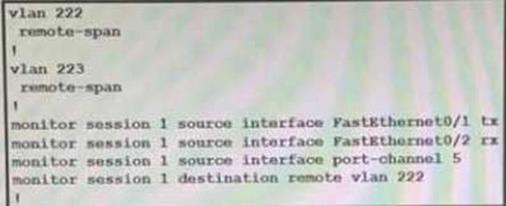

Refer to the exhibit. These commands have been added to the configuration of a switch Which command flags an error if it is added to this configuration?

Question 600

(0)

Refer to the exhibit. Which GRE tunnel configuration command is missing on R2?

Related questions

What are two differences between the RIB and the FIB? (Choose two.)

Which option works with a DHCP server to return at least one WLAN management interface IP address during the discovery phase and is dependent upon the VCI of the AP?

An engineer must update the local web authentication details on a Cisco 5520 WLC. The engineer has one active SSID configured for web authentication and plans to update the virtual interface with a nonroutable IP address. Which command must the engineer apply?

An engineer is troubleshooting the Ap join process using DNS. Which FQDN must be resolvable on the network for the access points to successfully register to the WLC?

Which port is required to allow APs to join a WLC when directed broadcasts are used on a Cisco iOS switch?

An engineer must configure a multicast UDP jitter operation. Which configuration should be applied? A) B) C) D)

Refer to the exhibit. An engineer must allow R1 to advertise the 192 168.1 0/24 network to R2 R1 must perform this action without sending OSPF packets to SW1 Which command set should be applied?

Refer to the Exhibit. Refer to the exhibit. Which action must be performed to allow RESTCONF access to the device?

Reter to the exhibit. Refer to the exhibit. A network engineer must be notified when a user switches to configuration mode. Which script should be applied to receive an SNMP trap and a critical-level log message?

A company has an existing Cisco 5520 HA cluster using SSO. An engineer deploys a new single Cisco Catalyst 9800 WLC to test new features. The engineer successfully configures a mobility tunnel between the 5520 cluster and 9800 WLC. Client connected to the corporate WLAN roam seamlessly between access points on the 5520 and 9800 WLC. After a failure on the primary 5520 WLC, all WLAN services remain functional; however, Client roam between the 5520 and 9800 controllers without dropping their connection. Which feature must be configured to remedy the issue?

Question 591

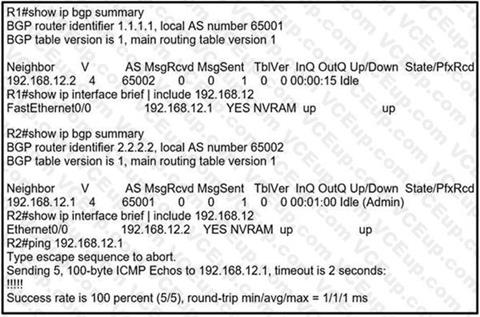

Refer to the exhibit.

Refer to the exhibit. R1 and R2 are directly connected, but the BGP session does not establish. Which action must be taken to build an eBGP session?

Configure ip route 1.1.1.1 0.0.0.0 192.168.12.1 on R2.

Configure neighbor 192.168.12.1 activate under R2 BGP process.

Configure neighbor 2.2.2.2 remote-as 65002 under R1 BGP process.

Configure no neighbor 192.168.12.1 shutdown under R2 BGP process.

Show Answer Comment (0)

Question 592

If AP power level is increased from 25 mW to 100 mW. what is the power difference in dBm?

6 dBm

14 dBm

17 dBm

20 dBm

Show Answer Comment (0)

Question 593

Which signal strength and noise values meet the minimum SNR for voice networks?

signal strength -67 dBm, noise 91 dBm

signal strength -69 dBm, noise 94 dBm

signal strength -68 dBm, noise 89 dBm

signal strength -66 dBm, noise 90 dBm

Show Answer Comment (0)

Question 594

Which two methods are used by an AP that is typing to discover a wireless LAN controller? (Choose two.)

Cisco Discovery Protocol neighbour

broadcasting on the local subnet

DNS lookup cisco-DNA-PRIMARY.localdomain

DHCP Option 43

querying other APs

Show Answer Comment (0)

Question 595

SIMULATION

Configure HSRP between DISTRO-SW1 and DISTRO-SW2 on VLAN 100 for hosts connected to ACCESSSW1 to achieve these goals:

Configure group number 1 using the virtual IP address of 192.168.1.1/24.

Configure DlSTRO-SW1 as the active router using a priority value of 110 and DISTRO-SW2 as the standby router.

Ensure that DISTRO-SW2 will take over the active role when DISTRO-SW1 goes down, and when DISTRO-SW1 recovers, it automatically resumes the active role.

DISTRO-SW2

See the solution below in

Show Answer Comment (0)

Question 596

DRAG DROP

Drag and drop the characteristics from the left onto the orchestration tool classifications on the right.

Show Answer Comment (0)

Question 597

Which two security features are available when implementing NTP? (Choose two.)

symmetric server passwords

dock offset authentication

broadcast association mode

encrypted authentication mechanism

access list-based restriction scheme

Show Answer Comment (0)

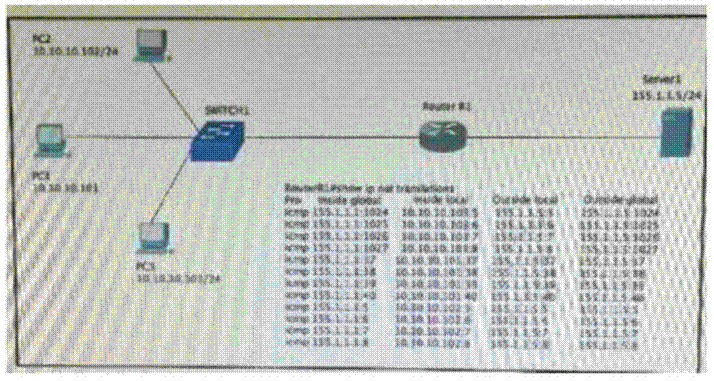

Hosts PC1 PC2 and PC3 must access resources on Serve 1. An engineer configures NAT on Router R1 1e enable the communication and enters the show command to verify operation Which IP address is used by the hosts when they communicate globally to Server1?

155.1.1.1

random addresses in the 155.1.1.0/24 range

their own address in the 10.10.10.0/24 rance

155.1.1.5

Show Answer Comment (0)
