Cisco 350-401 Practice Test - Questions Answers, Page 62

Question list

List of questions

Question 611

(0)

Which there application has the ability to make REST calls against Cisco DNA Center?

Question 612

(0)

What is difference between TCAM and the MAC address table?

Question 613

(0)

A company recently decided to use RESTCONF instead of NETCONF and many of their NETCONF scripts contain the operation <edit-config>(operation=”create”). Which RESTCONF operation must be used

Question 614

(0)

How is a data modelling language used?

Question 615

(0)

By default, which virtual MAC address does HSRP group 15 use?

Question 616

(0)

Refer to the exhibit. Which two commands ensure that DSW1 becomes root bridge for VLAN 10? (Choose two)

Question 617

(0)

Refer to the exhibit. Refer to the exhibit Which two commands are required on route» R1 to block FTP and allow all other traffic from the Branch 2 network’ (Choose two)

Question 618

(0)

Refer to the exhibit. An engineer must assign an IP address of 192.168.1.1/24 to the GigabitEtherenet1 interface. Which two commands must be added to the existing configuration to accomplish this

Question 619

(0)

DRAG DROP Drag and drop the LISP components on the left to the correct description on the right.

Question 620

(0)

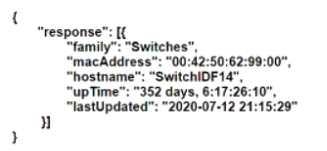

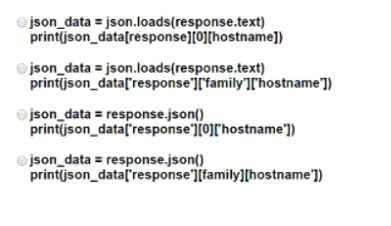

Based on the router's API output in JSON format below, which Python code will display the value of the “hostname" key?

Related questions

What are two differences between the RIB and the FIB? (Choose two.)

Which option works with a DHCP server to return at least one WLAN management interface IP address during the discovery phase and is dependent upon the VCI of the AP?

An engineer must update the local web authentication details on a Cisco 5520 WLC. The engineer has one active SSID configured for web authentication and plans to update the virtual interface with a nonroutable IP address. Which command must the engineer apply?

An engineer is troubleshooting the Ap join process using DNS. Which FQDN must be resolvable on the network for the access points to successfully register to the WLC?

Which port is required to allow APs to join a WLC when directed broadcasts are used on a Cisco iOS switch?

Refer to the exhibit. An engineer must allow R1 to advertise the 192 168.1 0/24 network to R2 R1 must perform this action without sending OSPF packets to SW1 Which command set should be applied?

Refer to the Exhibit. Refer to the exhibit. Which action must be performed to allow RESTCONF access to the device?

An engineer must configure a multicast UDP jitter operation. Which configuration should be applied? A) B) C) D)

Reter to the exhibit. Refer to the exhibit. A network engineer must be notified when a user switches to configuration mode. Which script should be applied to receive an SNMP trap and a critical-level log message?

A company has an existing Cisco 5520 HA cluster using SSO. An engineer deploys a new single Cisco Catalyst 9800 WLC to test new features. The engineer successfully configures a mobility tunnel between the 5520 cluster and 9800 WLC. Client connected to the corporate WLAN roam seamlessly between access points on the 5520 and 9800 WLC. After a failure on the primary 5520 WLC, all WLAN services remain functional; however, Client roam between the 5520 and 9800 controllers without dropping their connection. Which feature must be configured to remedy the issue?

Question 611

Which there application has the ability to make REST calls against Cisco DNA Center?

API Explorer

REST Explorer

Postman

Mozilla

Show Answer Comment (0)

Question 612

What is difference between TCAM and the MAC address table?

TCAM is used to make Lalyer 2 forwarding decisions CAM is used to build routing tables.

The MAC address table supports partial matches .TCAM requires an exact match.

The MAC address table is contained in CAM.ACL and QoS information is stored in TCAM.

Router prefix lookups happens in CAM.MAC address table lookups happen in TCAM.

Show Answer Comment (0)

Question 613

A company recently decided to use RESTCONF instead of NETCONF and many of their NETCONF scripts contain the operation <edit-config>(operation=”create”).

Which RESTCONF operation must be used to replace these statements?

POST

GET

PUT

CREATE

Show Answer Comment (0)

Question 614

How is a data modelling language used?

To provide human readability to scripting languages

To model the flows of unstructured data within the infrastructure

To represent finite and well-defined network elements that cannot be changed.

To enable data to be easily structured, grouped, validated, and replicated.

Show Answer Comment (0)

Question 615

By default, which virtual MAC address does HSRP group 15 use?

05:5e:ac:07:0c:0f

c0:42:34:03:73:0f

00:00:0c:07:ac:0f

05:af:1c:0f:ac:15

Show Answer Comment (0)

Question 616

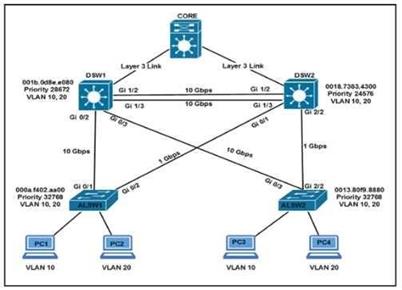

Refer to the exhibit.

Which two commands ensure that DSW1 becomes root bridge for VLAN 10? (Choose two)

DSW1(config)#spanning-tree vlan 10 priority 4096 Most Voted

DSW1(config)#spanning-tree vlan 10 priority root

DSW2(config)#spanning-tree vlan 10 priority 61440 Most Voted

DSW1(config)#spanning-tree vlan 10 port-priority 0

DSW2(config)#spanning-tree vlan 20 priority 0

Show Answer Comment (0)

Question 617

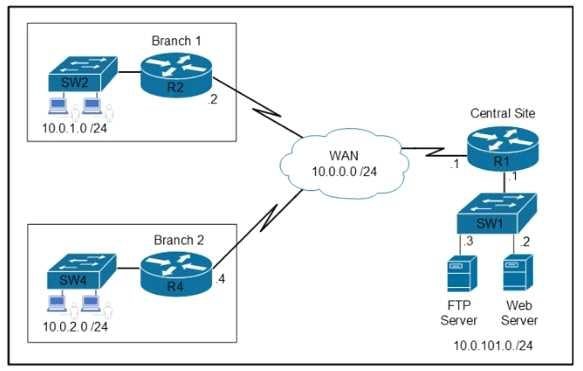

Refer to the exhibit.

Refer to the exhibit Which two commands are required on route» R1 to block FTP and allow all other traffic from the Branch 2 network’ (Choose two)

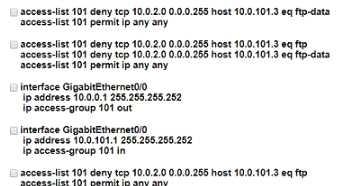

Option A

Option B

Option C

Option D

Option E

Show Answer Comment (0)

Question 618

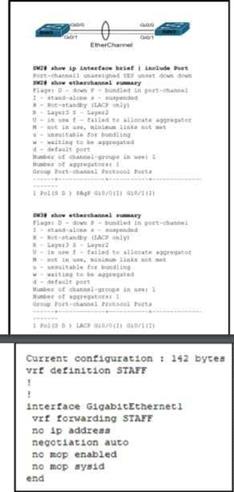

Refer to the exhibit.

An engineer must assign an IP address of 192.168.1.1/24 to the GigabitEtherenet1 interface. Which two commands must be added to the existing configuration to accomplish this task? (Choose two.)

Router(config-vrf)#ip address 192.168.1.1 255.255.255.0

Router(config-vrf)#address-family ipv4

Router(config-if)#address-family ipv4

Router(config-vrf)#address-family ipv6

Router(config-if)#ip address 192.168.1.1 255.255.255.0

Show Answer Comment (0)
