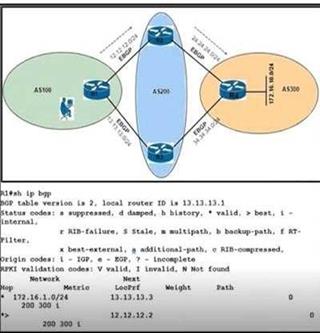

Refer to the exhibit.
An engineer is reaching network 172.16.10.0/24 via the R1-R2-R4 path. Which configuration forces the traffic to fake a path of R1-R3-R4?
An engineer applies this EEM applet to a router:
What does the applet accomplish?
It generates a syslog message every 600 seconds on the status of the specified MAC address.
It checks the MAC address table every 600 seconds to see if the specified address has been learned.
It compares syslog output to the MAC address table every 600 seconds and generates an event when there is a match.
It compares syslog output to the MAC address table every 600 seconds and generates an event when no match is found.
What is the result when an active route processor fails that combines NSF with SSO?
An NSF-capable device immediately updates the standby route processor RIB without churning the network.
The standby route processor immediately takes control and forwards packets along known routes.
An NSF-aware device immediately updates the standby route processor RIB without churning the network.
The standby route processor temporarily forwards packets until route convergence is complete.

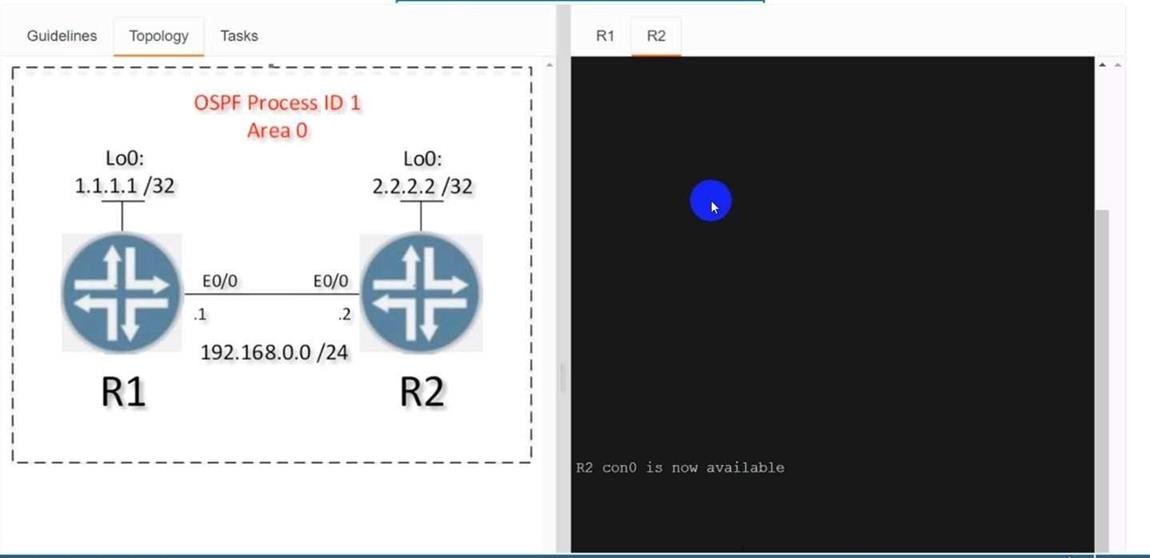

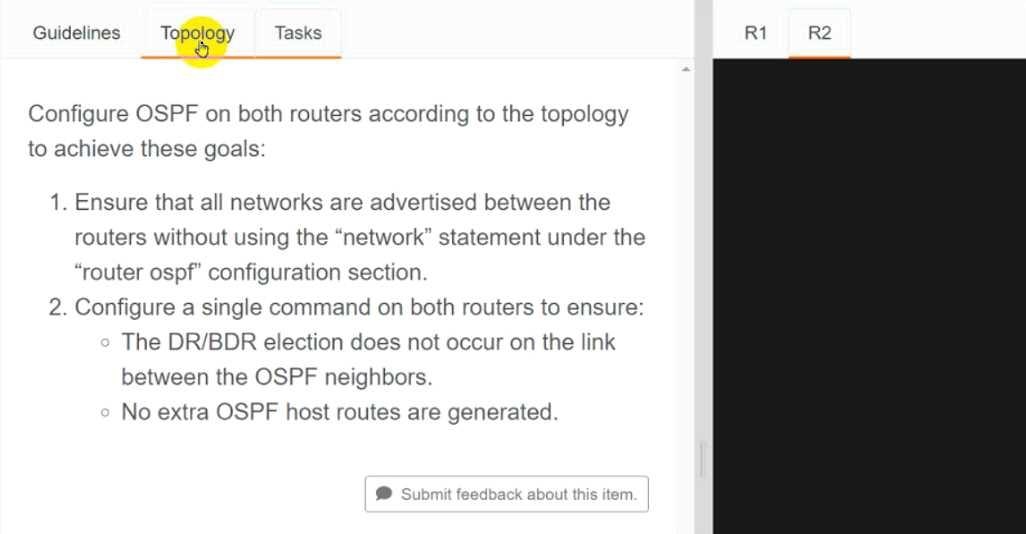

Configure OSPF on both routers according to the topology to achieve these goals:
What is the function of the fabric control plane node in a Cisco SD-Access deployment?
It is responsible for policy application and network segmentation in the fabric
It performs traffic encapsulation and security profiles enforcement in the fabric
It holds a comprehensive database that tracks endpoints and networks in the fabric
It provides integration with legacy nonfabric-enabled environments

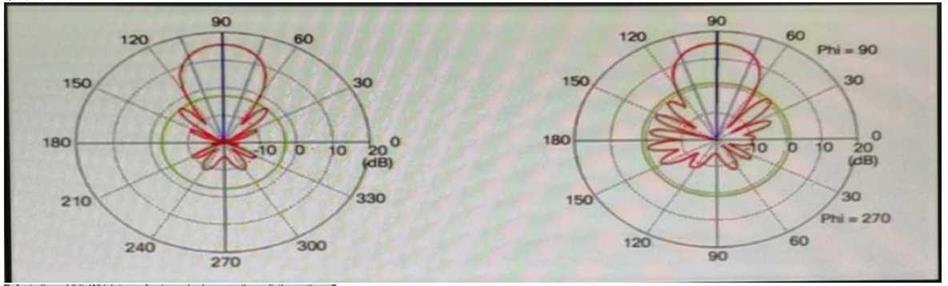

Refer to the exhibit.
Which type of antenna is shown on the radiation patterns?
Yagi
dipole
patch
omnidirectional
Which element is unique to a Type 2 hypervisor?
memory
VM OS
host OS
host hardware
What is one role of the VTEP in a VXLAN environment?
to forward packets to non-LISP sites
to encapsulate the tunnel
to maintain VLAN configuration consistency
to provide EID-to-RLOC mapping
Which two methods are used to interconnect two Cisco SD-Access Fabric sites? (Choose two.)
SD-Access transit
fabric interconnect
wireless transit
IP-based transit
SAN transit
How does Cisco Express Forwarding switching differ from process switching on Cisco devices?
Cisco Express Forwarding switching uses adjacency tables built by the CDP protocol, and process switching uses the routing table.
Cisco Express Forwarding switching uses dedicated hardware processors, and process switching uses the main processor.
Cisco Express Forwarding swithing saves memory by storing adjacency tables in dedicated memory on the line cards, and process switching stores all tables in the main memory.
Cisco Express Forwarding switching uses a proprietary protocol based on IS-IS for MAC address lookup, and process switching uses the MAC address table.
