What is a benefit of using a Cisco Wireless LAN Controller?

It eliminates the need to configure each access point individually

Central AP management requires more complex configurations

Unique SSIDs cannot use the same authentication method

It supports autonomous and lightweight APs

It eliminates the need to configure each access point individually

Refer to exhibit. Which statement explains the configuration error message that is received?

The router does not support /28 mask.

It belongs to a private IP address range.

Which command prevents passwords from being stored in the configuration as plain text on a router or switch?

username Cisco password encrypt

Two switches are connected and using Cisco Dynamic Trunking Protocol SW1 is set to Dynamic Desirable What is the result of this configuration?

The link is in an error disables state

The link is becomes an access port.

in Which way does a spine and-leaf architecture allow for scalability in a network when additional access ports are required?

A leaf switch can be added with connections to every spine switch

A spine switch and a leaf switch can be added with redundant connections between them

A spine switch can be added with at least 40 GB uplinks

A leaf switch can be added with a single connection to a core spine switch.

A leaf switch can be added with connections to every spine switch

Which two actions are performed by the Weighted Random Early Detection mechanism? (Choose two)

It drops lower-priority packets before it drops higher-priority packets

It can mitigate congestion by preventing the queue from filling up

It drops lower-priority packets before it drops higher-priority packets

It can identify different flows with a high level of granularity

It guarantees the delivery of high-priority packets

It can mitigate congestion by preventing the queue from filling up

When a floating static route is configured, which action ensures that the backup route is used when the primary route fails?

The floating static route must have a higher administrative distance than the primary route so it is used as a backup

The administrative distance must be higher on the primary route so that the backup route becomes secondary.

The floating static route must have a lower administrative distance than the primary route so it is used as a backup

The default-information originate command must be configured for the route to be installed into the routing table

How do TCP and UDP differ in the way that they establish a connection between two endpoints?

TCP uses the three-way handshake and UDP does not guarantee message delivery

TCP uses synchronization packets, and UDP uses acknowledgment packets.

UDP uses SYN, SYN ACK and FIN bits in the frame header while TCP uses SYN, SYN ACK and ACK bits

UDP provides reliable message transfer and TCP is a connectionless protocol

TCP uses the three-way handshake and UDP does not guarantee message delivery

Cisco 200-301 Practice Test 3 - Free Online Exam Prep & Questions

DRAG DROP

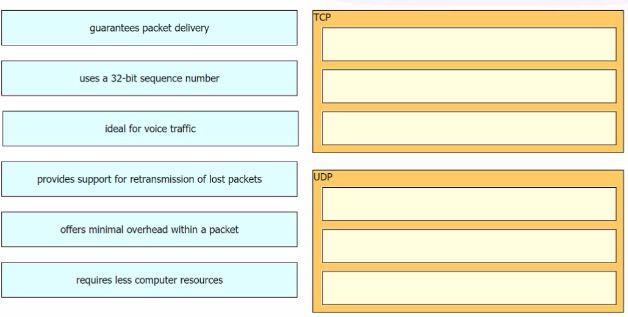

Drag and drop the characteristics of transport layer protocols from the left onto the corresponding protocols on the right.

Cisco 200-301 image Question 1 4598231 10072024124422000

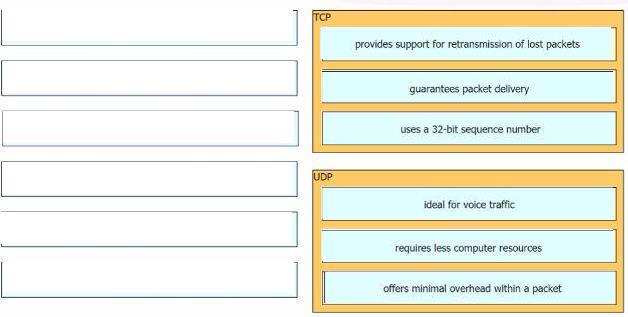

Correct answer:

Cisco 200-301 image answer Question 1 4598231 10072024124422000
