DRAG DROP
Drag and drop the IPv6 first hop security device roles from the left onto the corresponding descriptions on the right.
DRAG DROP
Drag and Drop the IPv6 First-Hop Security features from the left onto the definitions on the right.
DRAG DROP
Drag and drop the MPLS concepts from the left onto the descriptions on the right.
Refer to the exhibit.

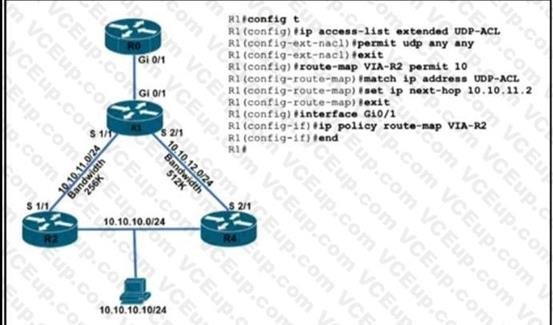

TCP traffic should be reaching host 10.10.10.10/24 via R2. Which action resolves the issue?
TCP traffic will reach the destination via R2 without any changes
Add a permit 20 statement in the route map to allow TCP traffic
Allow TCP in the access list with no changes to the route map
Set IP next-hop to 10.10.12.2 under the route-map permit 10 to allow TCP traffic.
A network administrator must optimize the segment size of the TCP packet on the DMVPN IPsec protected tunnel interface, which carries application traffic from the head office to a designated branch. The TCP segment size must not overwhelm the MTU of the outbound link. Which configuration must be applied to the router to improve the application performance?
Option A
Option B
Option C
Option D
Refer to the exhibit.

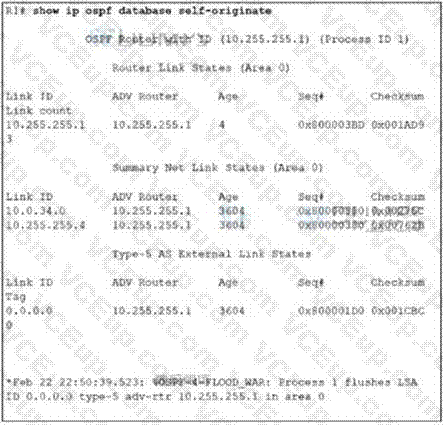

After configuring OSPF in R1, some external destinations in the network became unreachable. Which action resolves the issue?
Clear the OSPF process on R1 to flush stale LSAs sent by other routers.
Change the R1 router ID from 10.255.255.1 to a unique value and clear the process.
Increase the SPF delay interval on R1 to synchronize routes.
Disconnect the router with the OSPF router ID 0.0.0.0 from the network.
What is the function of BFD?
It provides uniform failure detection regardless of media type.
It creates high CPU utilization on hardware deployments.
It negotiates to the highest version if the neighbor version differs.
It provides uniform failure detection on the same media type.
Refer to the exhibit.

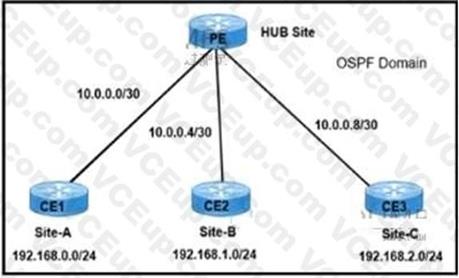

A network engineer must establish communication between three different customer sites with these requirements:
Site-A: must be restricted to access to any users at Site-B or Site-C.
Site-B and Site-C must be able to communicate between sites and share routes using OSPF.

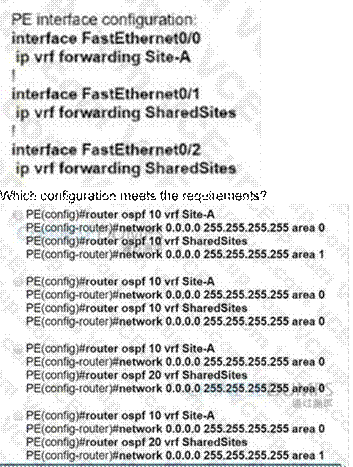

Which configuration meets the requirements?
Option A
Option B
Option C
Option D
Refer to the exhibit.

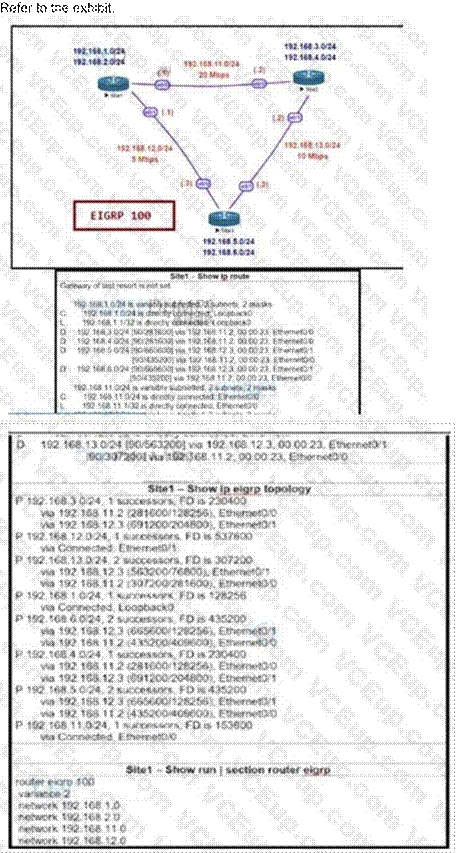

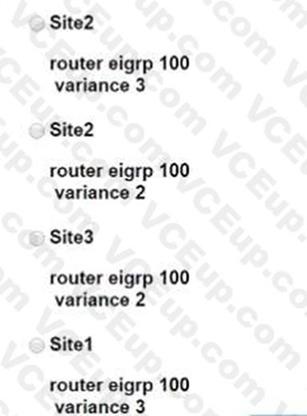

Refer to the exhibit. Site1 must perform unequal cost load balancing toward the segments behind Site2 and Site3. Some of the routes are getting load balanced but others are not. Which configuration allows Site1 to load balance toward all the LAN segments of the remote routers?
Option A
Option B
Option C
Option D
Refer to the exhibit.

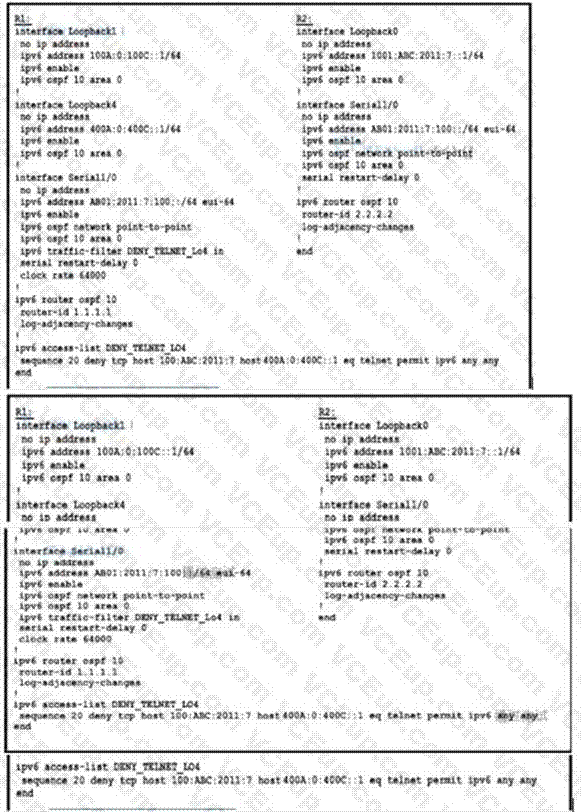

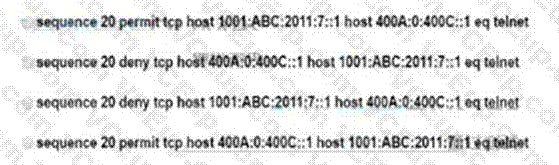

Refer to the exhibit. An engineer implemented an access list on R1 to allow anyone to Telnet except R2 Loopback0 to R1 Loopback4 How must sequence 20 be replaced on the R1 access list to resolve the issue?
Option A
Option B
Option C
Option D
