Cisco 200-301 Practice Test - Questions Answers, Page 16
Question list
List of questions
Related questions
What is a difference between local AP mode and FiexConnet AP mode?
Local AP mode creates two CAPWAP tunnels per AP to the WLC
FiexConnect AP mode fails to function if the AP loses connectivity with the WLC
FlexConnect AP mode bridges the traffic from the AP to the WLC when local switching is configured
Local AP mode causes the AP to behave as if it were an autonomous AP

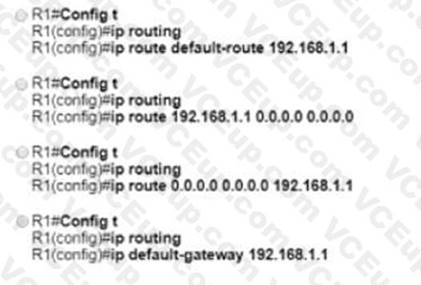

Router R1 must send all traffic without a matching routing-table entry to 192.168.1.1. Which configuration accomplishes this task?
Option A
Option B
Option C
Option D
Which function does the range of private IPv4 addresses perform?
allows multiple companies to each use the same addresses without conflicts
provides a direct connection for hosts from outside of the enterprise network
ensures that NAT is not required to reach the internet with private range addressing
enables secure communications to the internet for all external hosts
What event has occurred if a router sends a notice level message to a syslog server?
A TCP connection has been torn down
An ICMP connection has been built
An interface line has changed status
A certificate has expired.

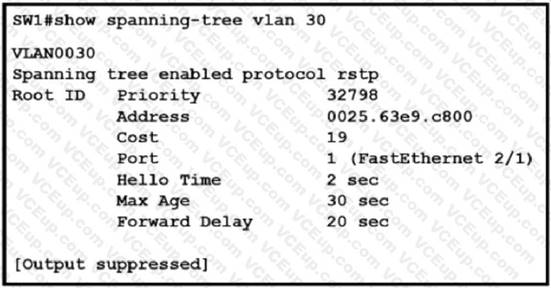

Refer to the exhibit.
What two conclusions should be made about this configuration? (Choose two )
The designated port is FastEthernet 2/1
This is a root bridge
The spanning-tree mode is Rapid PVST+
The spanning-tree mode is PVST+
The root port is FastEthernet 2/1
What are two fundamentals of virtualization? (choose two)
The environment must be configured with one hypervisor that serves solely as a network manager to monitor SNMP traffic
It allows logical network devices to move traffic between virtual machines and the rest of the physical network
It allows multiple operating systems and applications to run independently on one physical server.
It allows a physical router to directly connect NICs from each virtual machine into the network
It requires that some servers, virtual machines and network gear reside on the Internet
What is the difference regarding reliability and communication type between TCP and UDP?
TCP is reliable and is a connection-oriented protocol UDP is not reliable and is a connectionless protocol
TCP is not reliable and is a connection-oriented protocol; UDP is reliable and is a connectionless protocol
TCP is not reliable and is a connectionless protocol; UDP is reliable and is a connection-oriented protocol
TCP is reliable and is a connectionless protocol; UDP is not reliable and is a connection-oriented protocol
Refer to the exhibit.
How does the router manage traffic to 192.168.12.16?
It selects the RIP route because it has the longest prefix inclusive of the destination address.
It chooses the OSPF route because it has the longest prefix inclusive of the destination address.
it load-balances traffic between all three routes
It chooses the EIGRP route because it has the lowest administrative distance
How does Cisco DNA Center gather data from the network?
Network devices use different services like SNMP, syslog, and streaming telemetry to send data to the controller
Devices establish an iPsec tunnel to exchange data with the controller
Devices use the call-home protocol to periodically send data to the controller.
The Cisco CU Analyzer tool gathers data from each licensed network device and streams it to the controller.
Refer to the exhibit.
The network administrator wants VLAN 67 traffic to be untagged between Switch 1 and Switch 2 while all other VLANs are to remain tagged.
Which command accomplishes this task?
switchport access vlan 67
switchport trunk allowed vlan 67
switchport private-vlan association host 67
switchport trunk native vlan 67
