Cisco 200-301 Practice Test - Questions Answers, Page 19
Add to Whishlist
List of questions
Question 181

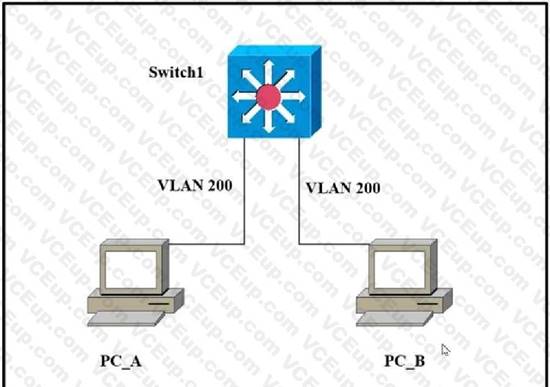

Refer to the exhibit.
Which outcome is expected when PC_A sends data to PC_B?
The switch rewrites the source and destination MAC addresses with its own.
The source MAC address is changed.
The source and destination MAC addresses remain the same.
The destination MAC address is replaced with ffff.ffff.ffff.
Question 182
How will Link Aggregation be Implemented on a Cisco Wireless LAN Controller?
One functional physical port is needed to pass client traffic.
The EthernetChannel must be configured in "mode active".
When enabled, the WLC bandwidth drops to 500 Mbps.
To pass client traffic, two or more ports must be configured.
https://www.cisco.com/c/en/us/td/docs/wireless/controller/7-5/configurationguide/b_cg75/b_cg75_chapter_0100010.html
Question 183

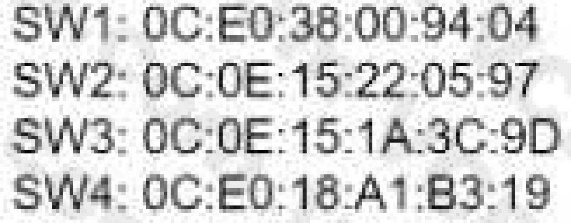

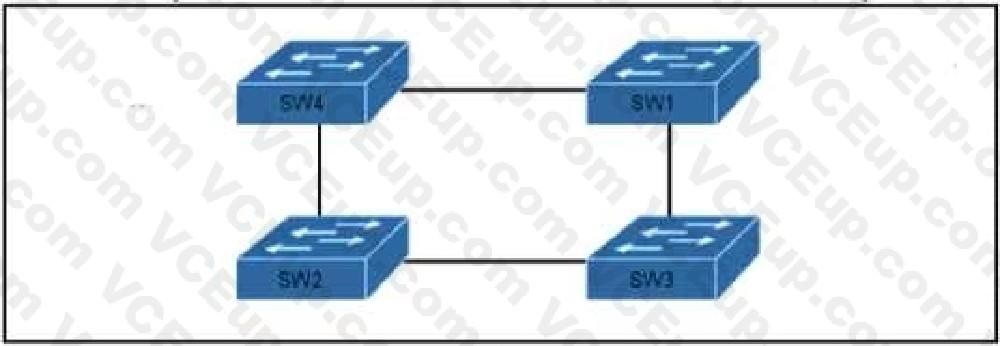

Refer to the exhibit.
Which switch in this configuration will be elected as the root bridge?
SW1
SW2
SW3
SW4
Question 184
Which device performs stateful inspection of traffic?
firewall
switch
access point
wireless controller
Question 185
Which configuration ensures that the switch is always the root for VLAN 750?
Switch(config)#spanning-tree vlan 750 priority 38003685
Switch(config)#spanning-tree vlan 750 root primary
Switch(config)#spanning-tree vlan 750 priority 614440
Switch(config)#spanning-tree vlan 750 priority 0
Although the spanning-tree vlan 10 root primary command will ensure a switch will have a bridge priority value lower than other bridges introduced to the network, the spanning-tree vlan 10 priority 0 command ensures the bridge priority takes precedence over all other priorities.
Question 186

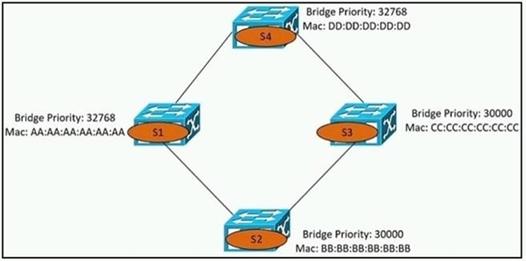

Refer to the exhibit.
Which switch becomes the root bridge?
S1
S2
S3
S4
Question 187
What protocol allows an engineer to back up 20 network router configurations globally while using the copy function?
SMTP
SNMP
TCP
FTP
Question 188
What software defined architecture plane assists network devices with making packet-forwarding decisions by providing Layer 2 reachability and Layer 3 routing information?
data plane
control plane
policy plane
management plane
Question 189
Which WAN access technology is preferred for a small office / home office architecture?
broadband cable access
frame-relay packet switching
dedicated point-to-point leased line
Integrated Services Digital Network switching.
Question 190
Which two WAN architecture options help a business scalability and reliability for the network?
(Choose two)
asychronous routing
single-homed branches
dual-homed branches
static routing
dynamic routing
