Cisco 200-301 Practice Test - Questions Answers, Page 3
List of questions
Question 21
DRAG DROP

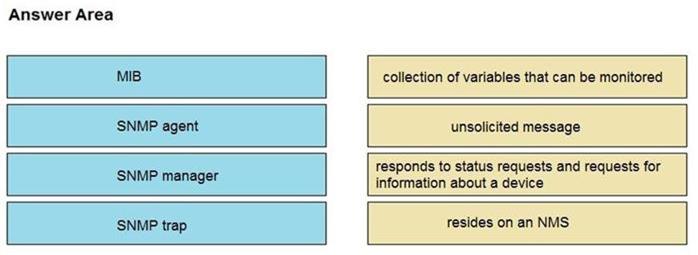

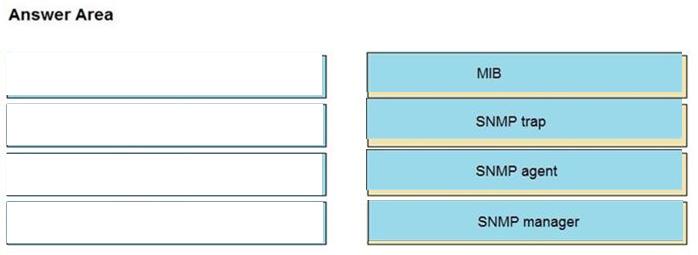

Drag and drop the SNMP components from the left onto the descriptions on the right.
Question 22
DRAG DROP

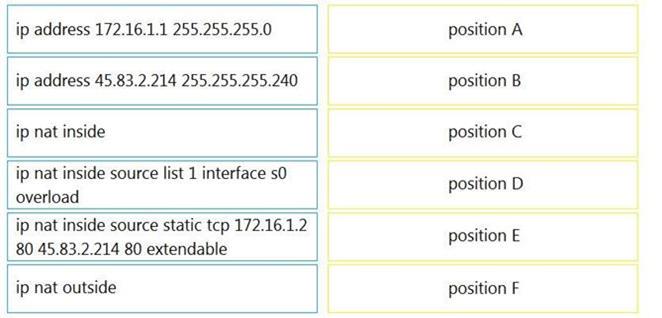

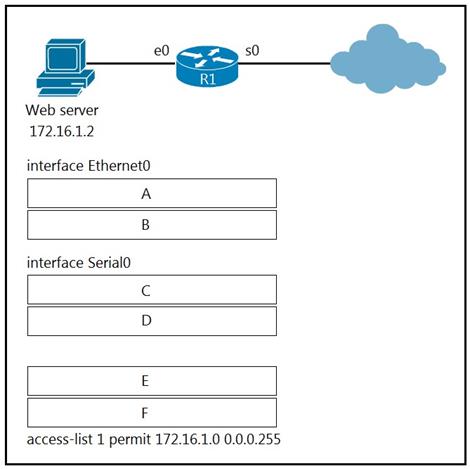

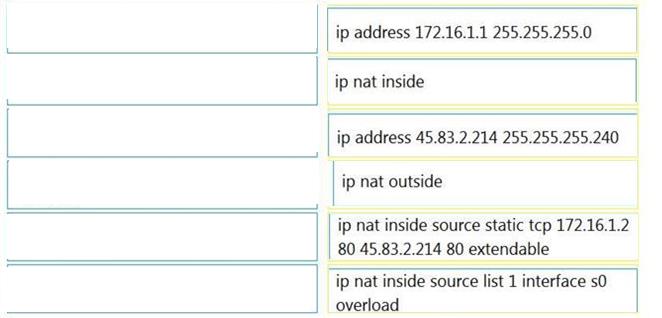

Refer to the exhibit. An engineer is configuring the router to provide static NAT for the webserver. Drag and drop the configuration commands from the left onto the letters that correspond to its position in the configuration on the fight.
Question 23
DRAG DROP

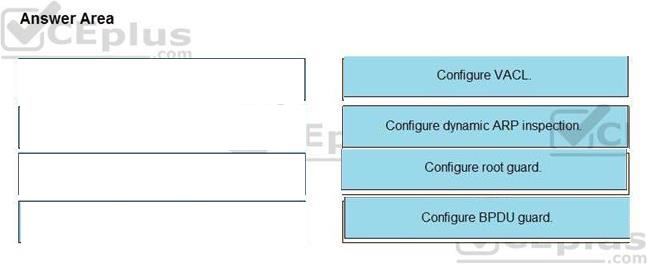

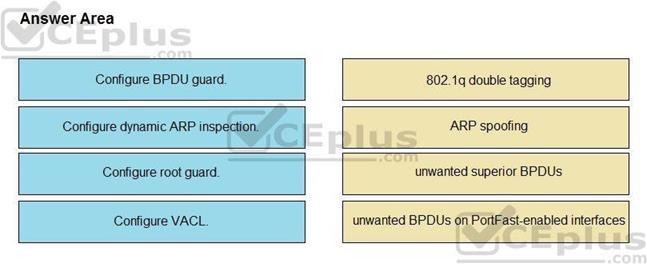

Drag and drop the threat-mitigation techniques from the left onto the types of threat or attack they mitigate on the right.

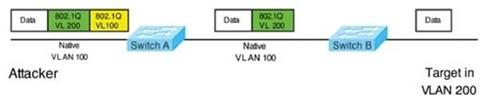

Double-Tagging attack:
In this attack, the attacking computer generates frames with two 802.1Q tags. The first tag matches the native VLAN of the trunk port (VLAN 10 in this case), and the second matches the VLAN of a host it wants to attack (VLAN 20).
When the packet from the attacker reaches Switch A, Switch A only sees the first VLAN 10 and it matches with its native VLAN 10 so this VLAN tag is removed. Switch A forwards the frame out all links with the same native VLAN 10.
Switch B receives the frame with an tag of VLAN 20 so it removes this tag and forwards out to the Victim computer.
Note: This attack only works if the trunk (between two switches) has the same native VLAN as the attacker.
To mitigate this type of attack, you can use VLAN access control lists (VACLs, which applies to all traffic within a VLAN. We can use VACL to drop attacker traffic to specific victims/servers) or implement Private VLANs.
ARP attack (like ARP poisoning/spoofing) is a type of attack in which a malicious actor sends falsified ARP messages over a local area network as ARP allows a gratuitous reply from a host even if an ARP request was not received. This results in the linking of an attacker’s MAC address with the IP address of a legitimate computer or server on the network. This is an attack based on ARP which is at Layer 2. Dynamic ARP inspection (DAI) is a security feature that validates
ARP packets in a network which can be used to mitigate this type of attack.
Question 24
DRAG DROP

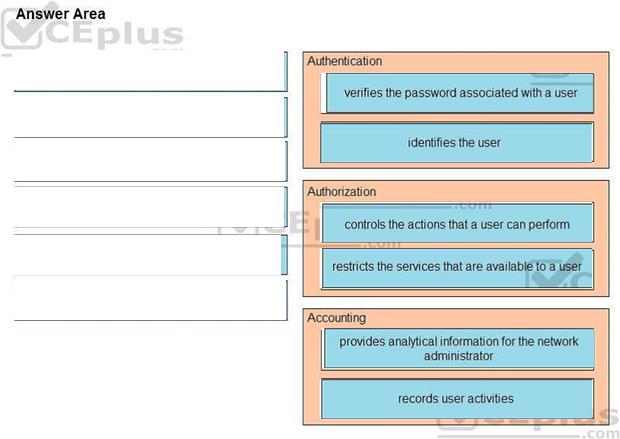

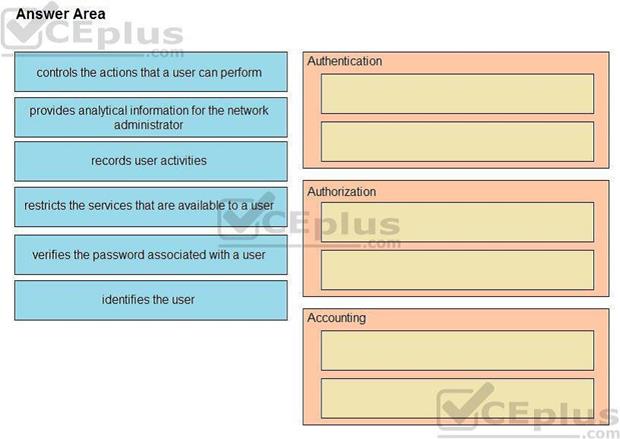

Drag and drop the AAA functions from the left onto the correct AAA services on the right.
Question 25
DRAG DROP

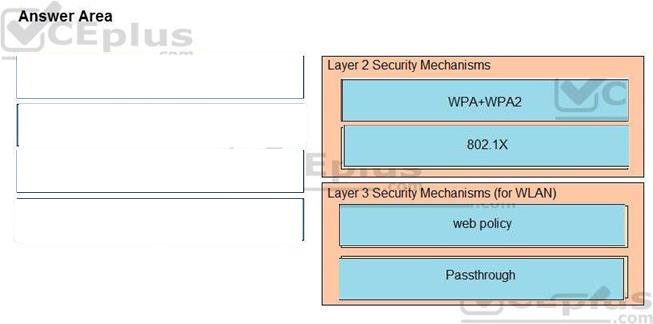

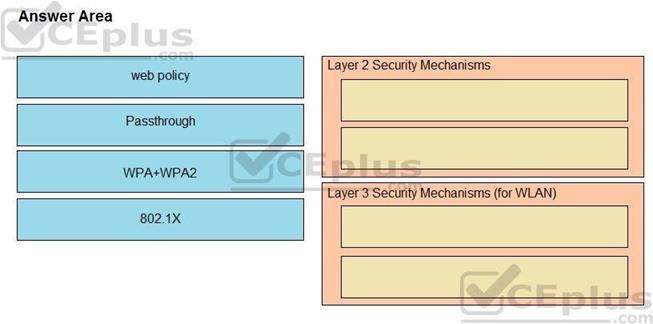

Drag and drop the Cisco Wireless LAN Controller security settings from the left onto the correct security mechanism categories on the right.
Question 26
DRAG DROP

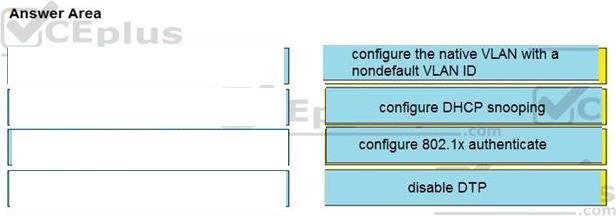

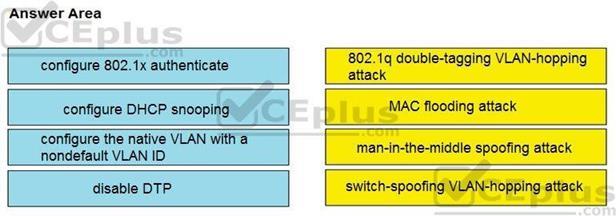

Drag and drop the attack-mitigation techniques from the left onto the types of attack that they mitigate on the right.
Question 27
DRAG DROP

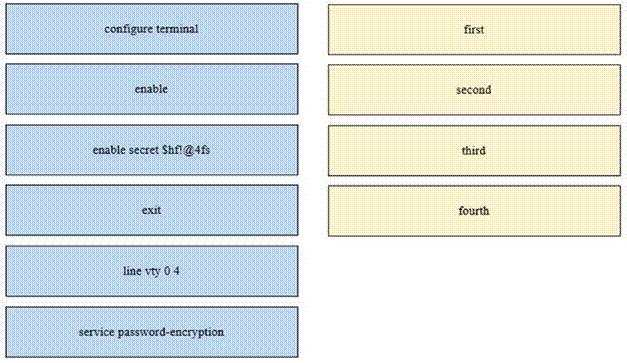

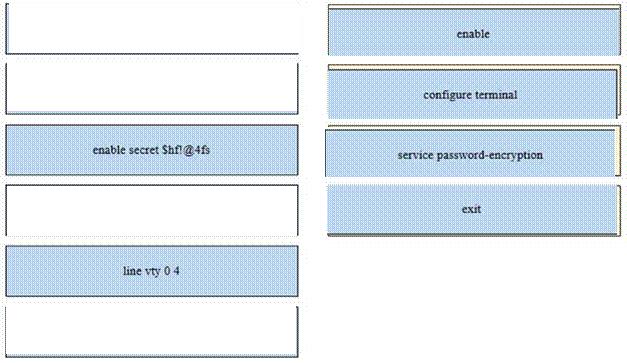

An engineer is configuring an encrypted password for the enable command on a router where the local user database has already been configured. Drag and drop the configuration commands from the left into the correct sequence on the right. Not all commands are used.
Question 28
DRAG DROP

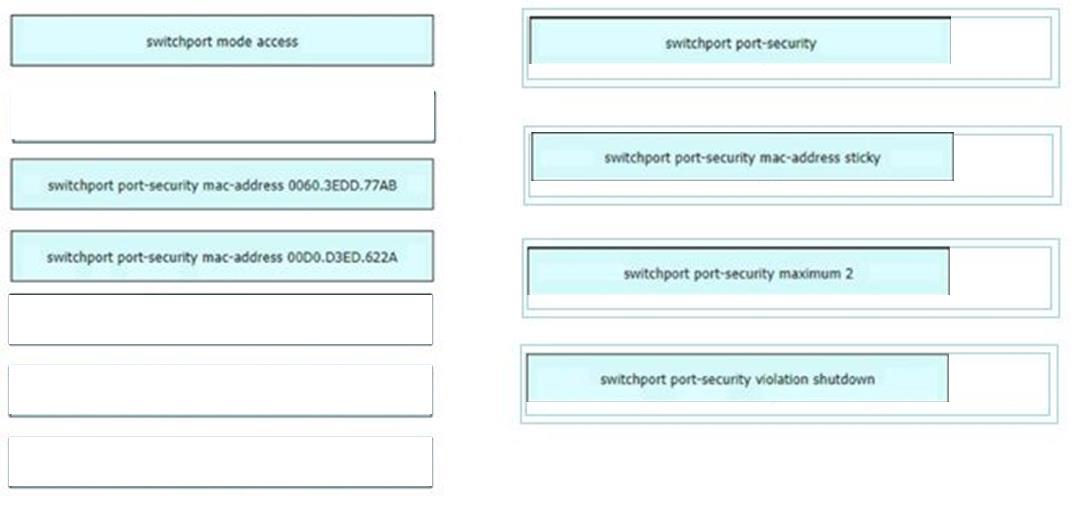

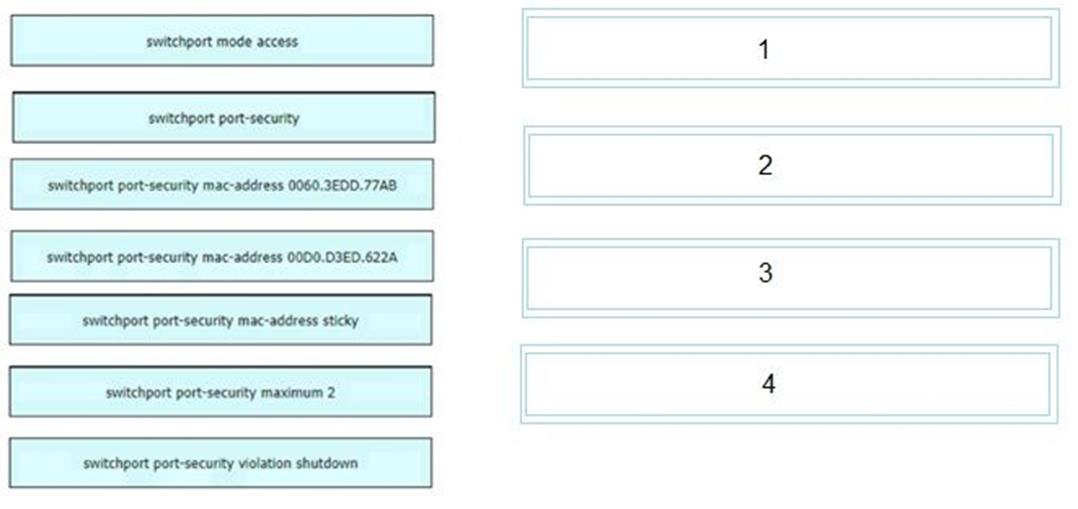

An engineer is tasked to configure a switch with port security to ensure devices that forward unicasts, multicasts, and broadcasts are unable to flood the port. The port must be configured to permit only two random MAC addresses at a time.
Drag and drop the required configuration commands from the left onto the sequence on the right. Not all commands are used.
https://www.cisco.com/en/US/docs/switches/lan/catalyst3850/software/release/3se/consolidated_guide/b_consolidated_3850_3se_cg_chapter_01000000.html
Question 29
DRAG DROP

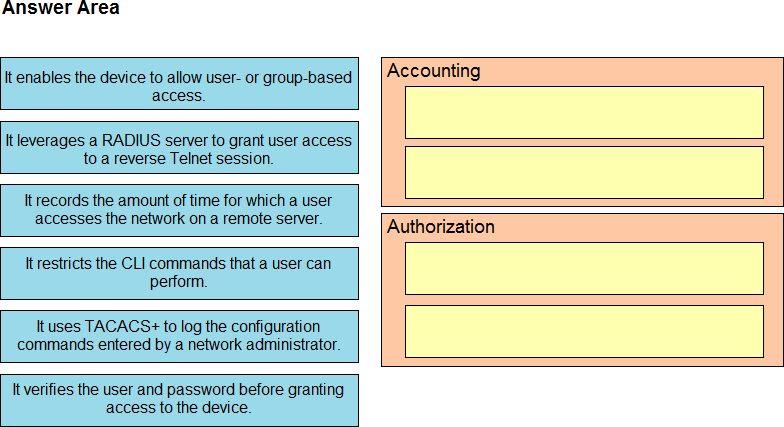

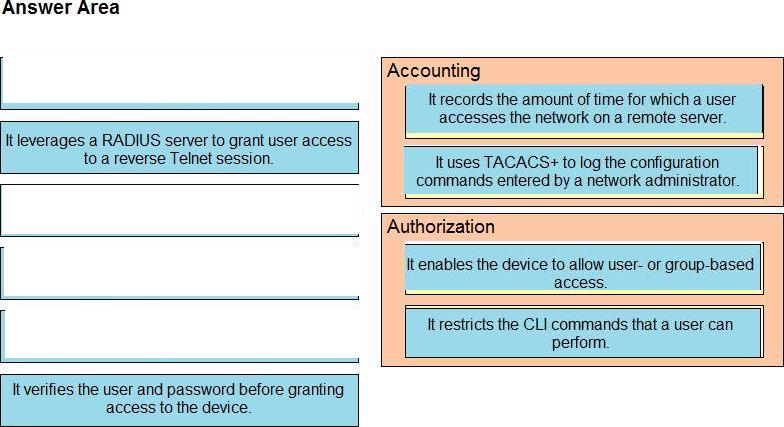

Drag and drop the AAA features from the left onto the corresponding AAA security services on the right. Not all options are used.
Question 30
DRAG DROP

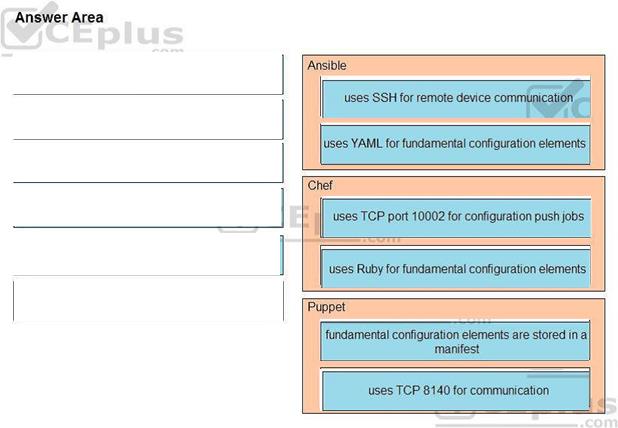

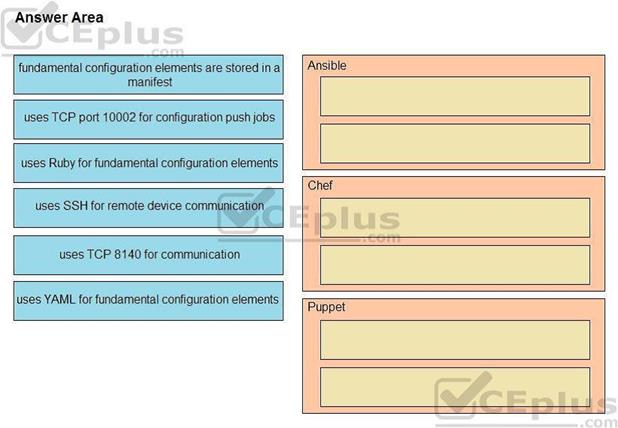

Drag and drop the descriptions from the left onto the configuration-management technologies on the right.
