What is a DHCP client?
a workstation that requests a domain name associated with its IP address
a host that is configured to request an IP address automatically
a server that dynamically assigns IP addresses to hosts.
a router that statically assigns IP addresses to hosts.
Which two functions are performed by the core layer in a three-tier architecture? (Choose two)
Provide uninterrupted forwarding service.
Police traffic that is sent to the edge of the network.
Provide direct connectivity for end user devices.
Ensure timely data transfer between layers.
Inspect packets for malicious activity.

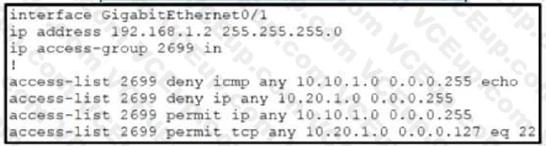

Refer to the exhibit.
A network administrator must permit SSH access to remotely manage routers in a network. The operations team resides on the 10.20.1.0/25 network. Which command will accomplish this task?
access-list 2699 permit udp 10.20.1.0 0.0.0.255
no access-list 2699 deny tcp any 10.20.1.0 0.0.0.127 eq 22
access-list 2699 permit tcp any 10.20.1.0 0.0.0.255 eq 22
no access-list 2699 deny ip any 10.20.1.0 0.0.0.255
What is a practice that protects a network from VLAN hopping attacks?
Enable dynamic ARP inspection
Configure an ACL to prevent traffic from changing VLANs
Change native VLAN to an unused VLAN ID
Implement port security on internet-facing VLANs

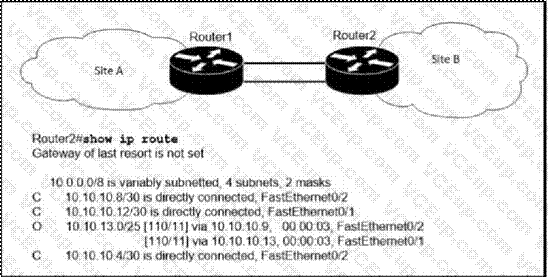

Refer to the exhibit.
If OSPF Is running on this network, how does Router2 handle traffic from Site B to 10.10.13.128/25 at Site A?
It load-balances traffic out of Fa0/1 and Fa0/2.
It is unreachable and discards the traffic.
It sends packets out of interface FaO/2.
It sends packets out of interface Fa0/1.
What is the purpose of traffic shaping?
to mitigate delays over slow links
to provide fair queuing for buffered flows
to limit the bandwidth that a flow can use to
be a marking mechanism that identifies different flows
Where does the configuration reside when a helper address Is configured lo support DHCP?
on the router closest to the server
on the router closest to the client
on every router along the path
on the switch trunk interface
What facilitates a Telnet connection between devices by entering the device name?
SNMP
DNS lookup
syslog
NTP
When implementing a router as a DHCP server, which two features must be configured'? (Choose two)
relay agent information
database agent
address pool
smart-relay
manual bindings
What is a role of wireless controllers in an enterprise network?
centralize the management of access points in an enterprise network
support standalone or controller-based architectures
serve as the first line of defense in an enterprise network
provide secure user logins to devices on the network.
