How do servers connect to the network in a virtual environment?
wireless to an access point that is physically connected to the network
a cable connected to a physical switch on the network
a virtual switch that links to an access point that is physically connected to the network
a software switch on a hypervisor that is physically connected to the network

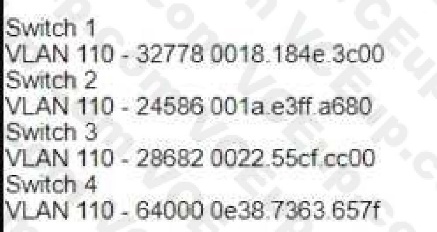

Refer to the exhibit.
Which switch becomes the root of the spanning tree for VLAN 110?
Switch 1
Switch 2
Switch 3
Switch 4
Which device tracks the state of active connections in order to make a decision to forward a packet through?
wireless access point
firewall
wireless LAN controller
router
How does a switch process a frame received on Fa0/1 with the destination MAC address of 0e38.7363.657b when the table is missing the address?
lt drops the frame immediately.
It forwards the frame back out of interface Fa0/1.
It floods the frame to all interfaces except Fa0/1.
It holds the frame until the MAC address timer expires and then drops the frame.
A network administrator must enable DHCP services between two sites. What must be configured for the router to pass DHCPDISCOVER messages on to the server?
a DHCP Relay Agent
DHCP Binding
a DHCP Pool
DHCP Snooping
What is recommended for the wireless infrastructure design of an organization?
group access points together to increase throughput on a given channel
configure the first three access points are configured to use Channels 1, 6, and 11
include a least two access points on nonoverlapping channels to support load balancing
assign physically adjacent access points to the same Wi-Fi channel

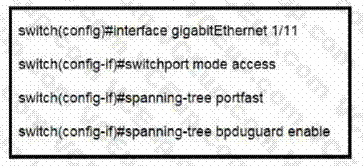

Refer to the exhibit.
What is the result if Gig1/11 receives an STP BPDU?
The port transitions to STP blocking
The port transitions to the root port
The port immediately transitions to STP forwarding.
The port goes into error-disable state
What does a switch use to build its MAC address table?
VTP
DTP
egress traffic
ingress traffic
Refer to the exhibit.
PC1 is trying to ping PC3 for the first time and sends out an ARP to S1 Which action is taken by S1?
It forwards it out G0/3 only
It is flooded out every port except G0/0.
It drops the frame.
It forwards it out interface G0/2 only.
What does a router do when configured with the default DNS lookup settings, and a URL is entered on the CLI?
initiates a ping request to the URL
prompts the user to specify the desired IP address
continuously attempts to resolve the URL until the command is cancelled
sends a broadcast message in an attempt to resolve the URL
