Which WLC port connects to a switch to pass normal access-point traffic?
redundancy
console
distribution system
service
An engineering team asks an implementer to configure syslog for warning conditions and error conditions. Which command does the implementer configure to achieve the desired result?
logging trap 5
logging trap 2
logging trap 4
logging trap 3
Which two protocols are supported on service-port interfaces? (Choose two.)
RADIUS
TACACS+
SCP
Telnet
SSH

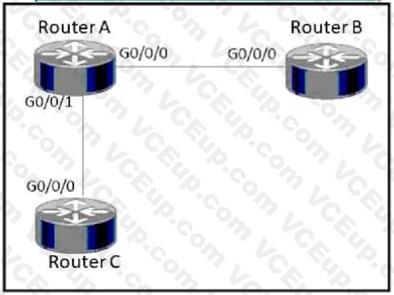

Refer to the exhibit.
How must router A be configured so that it only sends Cisco Discovery Protocol Information to router C?

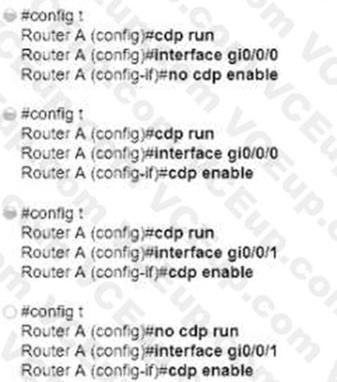

Option A
Option B
Option C
Option D
Which global command encrypt all passwords in the running configuration?
password-encrypt
enable password-encryption
enable secret
service password-encryption
What is the function of a hub-and-spoke WAN topology?
allows access restrictions to be implemented between subscriber sites.
provides direct connections between subscribers
supports Layer 2 VPNs
supports application optimization
What uses HTTP messages to transfer data to applications residing on different hosts?
OpenFlow
OpenStack
OpFlex
REST
Refer to Exhibit.
The loopback1 interface of the Atlanta router must reach the loopback3 interface of the Washington router. Which two static host routes must be configured on the NEW York router? (Choose two)
ipv6 route 2000::1/128 2012::1
ipv6 route 2000::3/128 2023::3
ipv6 route 2000::3/128 s0/0/0
ipv6 route 2000::1/128 2012::2
ipv6 route 2000::1/128 s0/0/1
Refer to the exhibit.
If OSPF is running on this network, how does Router 2 handle traffic from Site B to 10.10.13/25 at Site A?
It sends packets out of interface Fa0/2 only.
It sends packets out of interface Fa0/1 only.
It cannot send packets to 10.10.13 128/25
It load-balances traffic out of Fa0/1 and Fa0/2
How does HSRP provide first hop redundancy?
It load-balances traffic by assigning the same metric value to more than one route to the same destination m the IP routing table.
It load-balances Layer 2 traffic along the path by flooding traffic out all interfaces configured with the same VLAN.
It forwards multiple packets to the same destination over different routed links n the data path
It uses a shared virtual MAC and a virtual IP address to a group of routers that serve as the default gateway for hosts on a LAN
