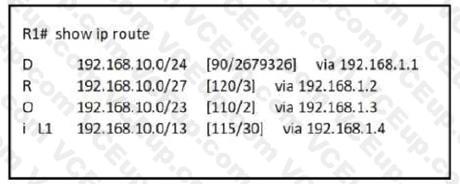

Refer to the exhibit.
How does router R1 handle traffic to 192.168.10.16?
It selects the IS-IS route because it has the shortest prefix inclusive of the destination address.
It selects the EIGRP route because it has the lowest administrative distance.
It selects the OSPF route because it has the lowest cost.
It selects the RIP route because it has the longest prefix inclusive of the destination address.
What role does a hypervisor provide for each virtual machine in server virtualization?
infrastructure-as-a-service.
Software-as-a-service
control and distribution of physical resources
services as a hardware controller.
What is the function of a server?
It transmits packets between hosts in the same broadcast domain.
It provides shared applications to end users.
It routes traffic between Layer 3 devices.
It Creates security zones between trusted and untrusted networks
Refer to the exhibit.
What is the effect of this configuration?
All ARP packets are dropped by the switch
Egress traffic is passed only if the destination is a DHCP server.
All ingress and egress traffic is dropped because the interface is untrusted
The switch discard all ingress ARP traffic with invalid MAC-to-IP address bindings.
What is a characteristic of private IPv4 addressing?
traverse the Internet when an outbound ACL is applied
issued by IANA in conjunction with an autonomous system number
composed of up to 65.536 available addresses
used without tracking or registration

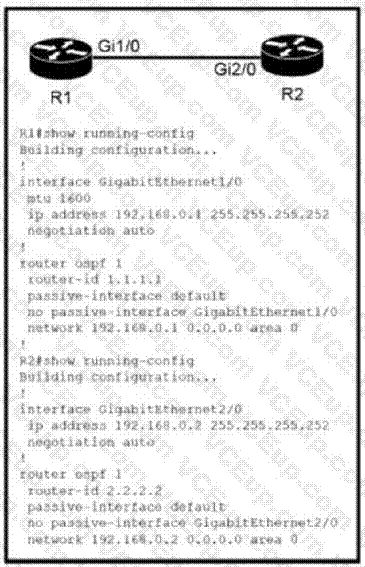

Refer to the exhibit.
Which configuration issue is preventing the OSPF neighbor relationship from being established between the two routers?
R2 is using the passive-interface default command
R1 has an incorrect network command for interface Gi1/0
R2 should have its network command in area 1
R1 interface Gil/0 has a larger MTU size

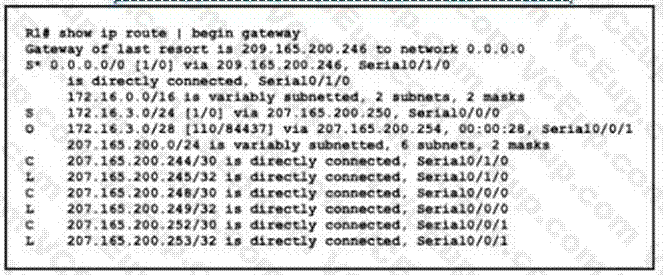

Refer to the exhibit.
A packet is being sent across router R1 to host 172.163.3.14. To which destination does the router send the packet?
207.165.200.246 via Serial0/1/0
207.165.200.254 via Serial0/0/1
207.165.200.254 via Serial0/0/0
207.165.200.250 via Serial/0/0/0
A network administrator needs to aggregate 4 ports into a single logical link which must negotiate layer 2 connectivity to ports on another switch What must be configured when using active mode on both sides of the connection?
802.1q trunks
Cisco vPC
LLDP
LACP
When a WPA2-PSK WLAN is configured in the wireless LAN Controller, what is the minimum number of characters that in ASCll format?
6
8
12
18
What are two differences between optical-fiber cabling and copper cabling? (Choose two)
Light is transmitted through the core of the fiber
A BNC connector is used for fiber connections
The glass core component is encased in a cladding
Fiber connects to physical interfaces using Rj-45 connections
The data can pass through the cladding
