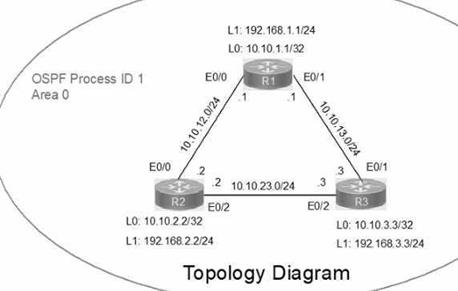

Refer to the exhibit.
IP connectivity between the three routers is configured. OSPF adjacencies must be established.
Configure R1 and R2 Router IDs using the interface IP addresses from the link that is shared between them.
Configure the R2 links with a max value facing R1 and R3. R2 must become the DR. R1 and R3 links facing R2 must remain with the default OSPF configuration for DR election. Verify the configuration after clearing the OSPF process.
Using a host wildcard mask, configure all three routers to advertise their respective Loopback1 networks.
Configure the link between R1 and R3 to disable their ability to add other OSPF routers.
Physical connectivity is implemented between the two Layer 2 switches, and the network connectivity between them must be configured
Configure an LACP EtherChannel and number it as 1; configure it between switches SW1 and SVV2 using interfaces Ethernet0/0 and Ethernet0/1 on both sides. The LACP mode must match on both ends
2 Configure the EtherChannel as a trunk link.
Configure the trunk link with 802.1 q tags.
Configure the native VLAN of the EtherChannel as VLAN 15.
Configure IPv4 and IPv6 connectivity between two routers. For IPv4, use a /28 network from the 192.168.1.0/24 private range. For IPv6, use the first /64 subnet from the 2001:0db8:aaaa::/48 subnet.
Using Ethernet0/1 on routers R1 and R2, configure the next usable/28 from the 192.168.1.0/24 range. The network 192.168.1.0/28 is unavailable.
For the IPv4 /28 subnet, router R1 must be configured with the first usable host address.
For the IPv4 /28 subnet, router R2 must be configured with the last usable host address.
For the IPv6 /64 subnet, configure the routers with the IP addressing provided from the topology.
A ping must work between the routers on the IPv4 and IPv6 address ranges.
Connectivity between four routers has been established. IP connectivity must be configured in the order presented to complete the implementation. No dynamic routing protocols are included.
Configure static routing using host routes to establish connectivity from router R3 to the router R1 Loopback address using the source IP of 209.165.200.230.
Configure an IPv4 default route on router R2 destined for router R4.
Configure an IPv6 default router on router R2 destined for router R4.
All physical cabling between the two switches is installed. Configure the network connectivity between the switches using the designated VLANs and interfaces.
Configure VLAN 100 named Compute and VLAN 200 named Telephony where required for each task.
Configure Ethernet0/1 on SW2 to use the existing VLAN named Available.
Configure the connection between the switches using access ports.
Configure Ethernet0/1 on SW1 using data and voice VLANs.
Configure Ethemet0/1 on SW2 so that the Cisco proprietary neighbor discovery protocol is turned off for the designated interface only.
Refer to the exhibit.
Three switches must be configured for Layer 2 connectivity. The company requires only the designated VLANs to be configured on their respective switches and permitted accross any links between switches for security purposes. Do not modify or delete VTP configurations.
The network needs two user-defined VLANs configured:
VLAN 110: MARKETING
VLAN 210: FINANCE
Configure the VLANs on the designated switches and assign them as access ports to the interfaces connected to the PCs.
Configure the e0/2 interfaces on Sw1 and Sw2 as 802.1q trunks with only the required VLANs permitted.
Configure the e0/3 interfaces on Sw2 and Sw3 as 802.1q trunks with only the required VLANs permitted.

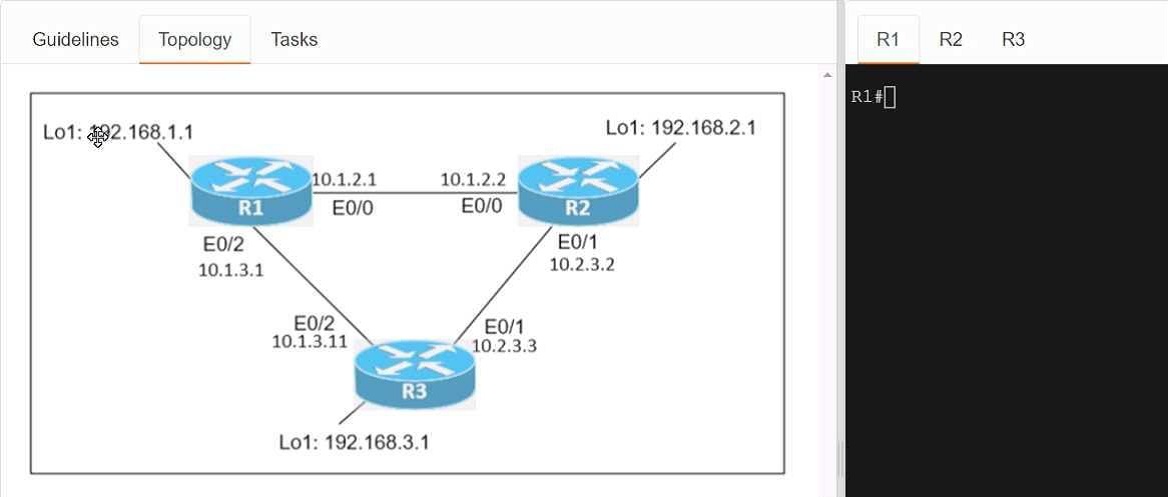

Connectivity between three routers has been established, and IP services must be configured jn the order presented to complete the implementation Tasks assigned include configuration of NAT, NTP, DHCP, and SSH services.
1. All traffic sent from R3 to the R1 Loopback address must be configured for NAT on R2. All source addresses must be translated from R3 to the IP address of Ethernet0/0 on R2, while using only a standard access list named NAT To verify, a ping must be successful to the R1 Loopback address sourced from R3. Do not use NVI NAT configuration.
2. Configure R1 as an NTP server and R2 as a client, not as a peer, using the IP address of the R1 Ethernet0/2 interface. Set the clock on the NTP server for midnight on January 1, 2019.
3. Configure R1 as a DHCP server for the network 10.1.3.0/24 in a pool named TEST. Using a single command, exclude addresses 1-10 from the range. Interface Ethernet0/2 on R3 must be issued the IP address of 10.1.3.11 via DHCP.
4. Configure SSH connectivity from R1 to R3, while excluding access via other remote connection protocols. Access for user root and password Cisco must be set on router R3 using RSA and 1024 bits.
Verify connectivity using an SSH session from router R1 using a destination address of 10.1.3.11. Do NOT modify console access or line numbers to accomplish this task.
See the Explanation below.
Refer to the exhibit.
IP connectivity and OSPF are preconfigured on all devices where necessary. Do not make any changes to the IP addressing or OSPF. The company policy uses connected interfaces and next hops when configuring static routes except for load balancing or redundancy without floating static. Connectivity must be established between subnet 172.20.20.128/25 on the Internet and the LAN at
192.168.0.0/24 connected to SW1:
1. Configure reachability to the switch SW1 LAN subnet in router R2.
2. Configure default reachability to the Internet subnet in router R1.
3. Configure a single static route in router R2 to reach to the Internet subnet considering both redundant links between routers R1 and R2. A default route is NOT allowed in router R2.
4. Configure a static route in router R1 toward the switch SW1 LAN subnet where the primary link must be through Ethernet0/1. and the backup link must be through Ethernet0/2 using a floating route. Use the minimal administrative distance value when required.
See the Explanation below.

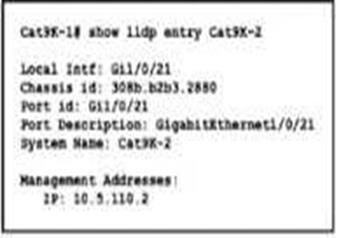

An engineer must configure neighbor discovery between the company router and an ISP
What is the next step to complete the configuration if the ISP uses a third-party router?
Enable LLDP globally.
Disable CDP on gi0/0.
Enable LLDP TLVs on the ISP router.
Disable auto-negotiation.
Refer to the exhibit.
What are two conclusions about this configuration? {Choose two.)
The spanning-tree mode is Rapid PVST+.
This is a root bridge.
The root port is FastEthernet 2/1.
The designated port is FastEthernet 2/1.
The spanning-tree mode is PVST+.
