What does a switch do when it receives a frame whose destination MAC address is missing from the MAC address table?
It floods the frame unchanged across all remaining ports in the incoming VLAN.
It appends the table with a static entry for the MAC and shuts down the port.
It updates the CAM table with the destination MAC address of the frame.
It changes the checksum of the frame to a value that indicates an invalid frame.
Which security method is used to prevent man-in-the-middle attack?
authorization
authentication
anti-replay
accounting
Refer to the exhibit.
R1 has just received a packet from host A that is destined to host B. Which route in the routing table is used by R1 to reac B?
10.10.13.0/25 [108/0] via 10.10.10.10
10.10.13.0/25 [110/2] via 10.10.10.2
10.10.13.0/25 [110/2] via 10.10.10.6
10.10.13.0/25 [1/0] via 10.10.10.2
Which IPsec transport mode encrypts the IP header and the payload?
pipe
control
transport
tunnel

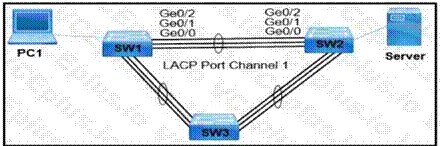

Refer to the exhibit.
PC1 regularly sends 1800 Mbps of traffic to the server. A network engineer needs to configure the EtherChannel to disable Port Channel 1 between SW1 and SW2 when the Ge0/0 and Ge0/1 ports on SW2 go down. Which configuration must the engineer apply to the switch?

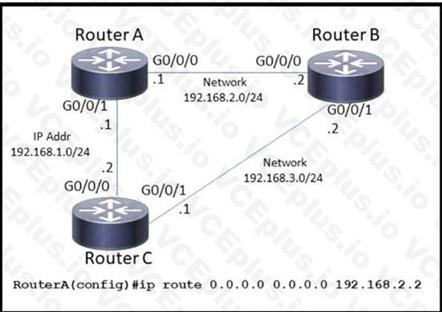

Refer to the exhibit.
Which command must be enable a floating default route on router A?
ip route 0.0.0.0 0.0.0.0 192.168.1.2
ip default-gateway 192.168.2.1
ip route 0.0.0.0 0.0.0.0 192.168.1.2 10
ip route 0.0.0.0 0.0.0.0 192.168.2.1 10

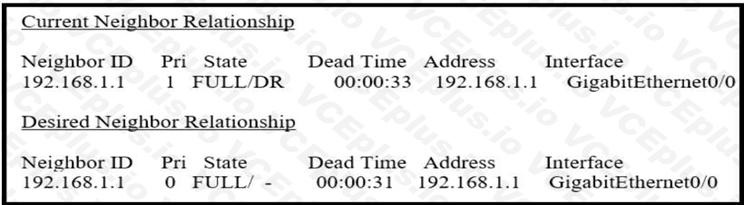

Refer to the exhibit.
How must OSPF be configured on the GigabitEthernet0/0 interface of the neighbor device to achieve.
What is the purpose of using First Hop Redundancy Protocol on a specific subnet?
ensures a loop-free physical topology
filters traffic based on destination IP addressing
sends the default route to the hosts on a network
forwards multicast hello messages between routers
Which two features introduced in SNMPv2 provides the ability to retrieve large amounts of data in one request
Get
GetNext
Set
GetBulk
Inform
Refer to the exhibit. A multivendor network exists and the company is implementing VoIP over the network for the first time.
