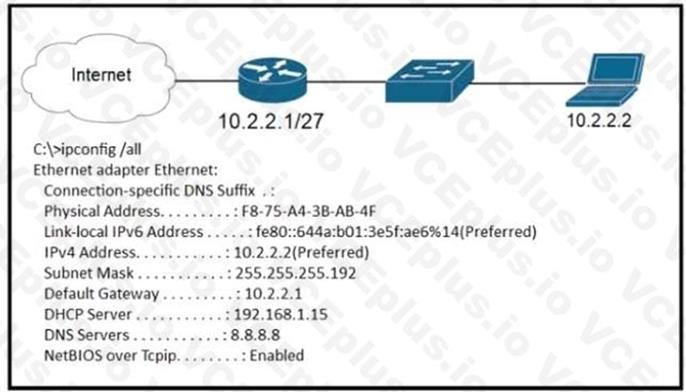

Refer to the exhibit.
A newly configured PC fails to connect to the internet using TCP port 80 to www cisco com Which setting must be modified for the connection to work?
Subnet Mask
DNS Servers
Default Gateway
DHCP Server

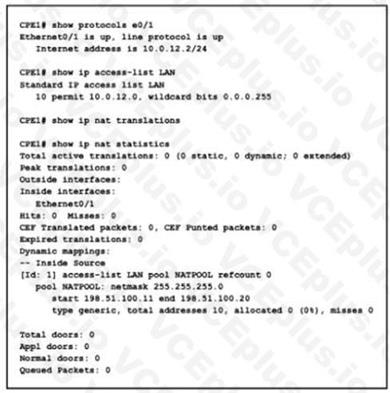

Refer to the exhibit.
What is the next step to complete the implementation for the partial NAT configuration shown?
Reconfigure the static NAT entries that overlap the NAT pool
Configure the NAT outside interface
Modify the access list for the internal network on e0/1
Apply the ACL to the pool configuration
The address block 192 168 32 0/24 must be subnetted into smaller networks The engineer must meet these requirements
• Create 8 new subnets
• Each subnet must accommodate 30 hosts
• Interface VLAN 10 must use the last usable IP in the first new subnet
• A Layer 3 interface is used
Which configuration must be applied to the interface?
What are two reasons a switch experiences frame flooding? (Choose two.)
A defective patch cable is connected to the switch port
Topology changes are occurring within spanning-tree
An aged MAC (able entry is causing excessive updates
Port-security is configured globally
The forwarding table has overflowed

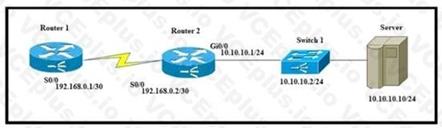

Refer to the exhibit.
A network engineer must configure router R1 with a host route to the server. Which command must the engineer configure?
R1(conftg)#lp route 10.10.10.0 255.255.255.0 192.168.0.2
R1(Config)#lp route 10.10.10.10 265.255.255.255 192 168.0.2
R1(config)#ip route 192.168.0.2 255.255.255.255 10.10.10.10
R1(config)3|p route 0.0.0.0 0.0 0.0 192 168.0.2
A Cisco engineer at a new branch office is configuring a wireless network with access points that connect to a controller that is based at corporate headquarters Wireless client traffic must terminate at the branch office and access-point survivability is required in the event of a WAN outage Which access point mode must be selected?
Lightweight with local switching disabled
Local with AP fallback enabled
OfficeExtend with high availability disabled
FlexConnect with local switching enabled
Refer to Itie exhibit
A network engineer started to configure port security on a new switch. These requirements must be met:
* MAC addresses must be learned dynamically
* Log messages must be generated without disabling the interface when unwanted traffic is seen Which two commands must be configured to complete this task"? (Choose two)
SW(ccnfig-if)=switchport port-security mac-address sticky
SW(confKj-if)=switchport port-security violation restrict
SW(config.if)sswitchport port-security mac-address 0010.7B84.45E6
SW(config-if)aswitchport port-security maximum 2
SW(ccnfig-if)=switchport port-security violation shutdown
Refer to the exhibit.
Traffic from R1 to the 10.10.2.0/24 subnet uses 192.168.1.2 as its next hop. An network engineer wants to update the R1 configuration so that traffic with destination 10.10.2.1 passes through router R3, and all other traffic to the 10.10.20/24 subnet passes through r2. Which command must be used?
Ip route 10.10.2.1 255.255.255.255 192.168.1.4 115
Ip route 10.10.2.0 255.255.255.0 192.168.1.4 100
Ip route 10.10.2.0 255.255.255.0 192.168.1.4 115
Ip route 10.10.2.1 255.255.255.255 192.168.1.4 100
Refer the exhibit.
What is the cause of poor performance on router R19?
excessive collisions
speed and duplex mismatch
port oversubscription
excessive CRC errors
