Cisco 200-301 Practice Test - Questions Answers, Page 77

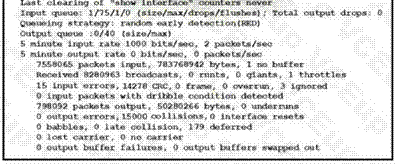

Refer to the exhibit.

An administrator received a call from a branch office regarding poor application performance hosted at the headquarters. Ethernet 1 is connected between Router1 and the LAN switch. What identifies the issue?

Refer to the exhibit.

What is represented by the word "switch’’ in line 2 of the JSON schema?

The clients and OHCP server reside on different subnets. Which command must be used to forward requests and replies between clients on the 10.10.0.1/24 subnet and the DHCP server at 192.168.10.1?

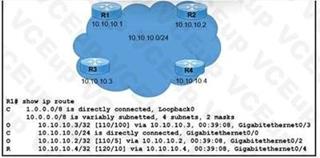

Refer to the exhibit.

Which next-hop IP address has the least desirable metric when sourced from R1?

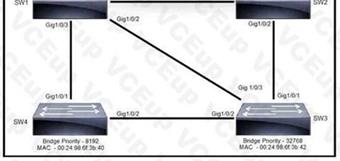

Refer to the exhibit.

Rapid PVST+ mode is on the same VLAN on each switch. Which switch becomes the root bridge and why?

PC1 tries to send traffic to newly installed PC2. The PC2 MAC address is not listed in the MAC address table of the switch, so the switch sends the packet to all ports in the same VLAN Which switching concept does this describe?

A network engineer is upgrading a small data center to host several new applications, including server backups that are expected to account for up to 90% of the bandwidth during peak times. The data center connects to the MPLS network provider via a primary circuit and a secondary circuit. How does the engineer inexpensively update the data center to avoid saturation of the primary circuit by traffic associated with the backups?

Refer to the exhibit.

A network engineer executes the show ip route command on router D. What is the next hop to network 192.168 1 0/24 and why?

Refer to the exhibit.

A Cisco engineer creates a new WLAN called lantest. Which two actions must be performed so that only high-speed 2.4-Ghz clients connect? (Choose two.)
