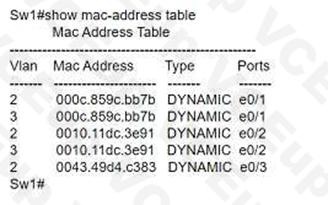

Refer to the exhibit.
Host A switch interface is configured in VLAN 2. Host D sends a unicast packet destined for the IP address of host A.
What does the switch do when it receives the frame from host D?
It creates a broadcast storm.
It drops the frame from the MAC table of the switch.
It shuts down the source port and places It In err-disable mode.
It floods the frame out of every port except the source port.
Which properly is shared by 10GBase-SR and 10GBase-LR interfaces?
Both require fiber cable media for transmission.
Both require UTP cable media for transmission.
Both use the single-mode fiber type.
Both use the multimode fiber type.
Refer to the exhibit.
A network engineer started to configure two directly-connected routers as shown. Which command sequence must the engineer configure on R2 so that the two routers become OSPF neighbors?

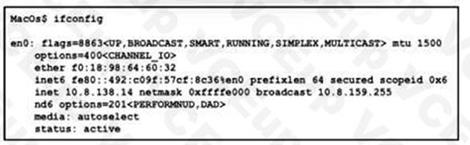

Refer to the exhibit.
A network engineer must provide configured IP addressing details to investigate a firewall rule Issue.
Which subnet and mask Identify what is configured on the en0 interface?
10.8.0.0/16
10.8.64.0/18
10.8.128.0/19
10.8.138.0/24

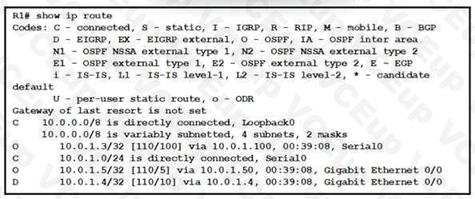

Refer to the exhibit.
What does route 10.0.1.3/32 represent in the routing table?
the 10.0.0.0 network
a single destination address
the source 10.0.1.100
all hosts in the 10.0.1.0 subnet
Refer to the exhibit.
A network administrator must permit traffic from the 10.10.0.0/24 subnet to the WAN on interlace Seria10. What is the effect of the configuration as the administrator applies the command?
The permit command fails and returns an error code.
The router accepts all incoming traffic to Seria10 with the last octet of the source IP set to 0.
The sourced traffic from IP range 10.0.0.0 -10.0.0.255 is allowed on Seria10.
The router fails to apply the access list to the interface.
What is the role of community strings in SNMP operations?
It serves as a sequence tag on SNMP traffic messages.
It serves as a password lo protect access to MIB objects.
It passes the Active Directory username and password that are required for device access
It translates alphanumeric MIB output values to numeric values.
Which access point mode relies on a centralized controller for management, roaming, and SSID configuration?
repeater mode
autonomous mode
bridge mode
lightweight mode
What are two characteristics of a small office / home office connection environment? (Choose two.)
It requires 10Gb ports on all uplinks.
It supports between 50 and 100 users.
It supports between 1 and 50 users.
It requires a core, distribution, and access layer architecture.
A router port connects to a broadband connection.
Which syslog severity level is considered the most severe and results in the system being considered unusable?
Alert
Error
Emergency
Critical
