Refer to the exhibit.
The nip server 192.168.0.3 command has been configured on router 1 to make it an NTP client of router 2. Which command must be configured on router 2 so that it operates in server-only mode and relies only on its internal clock?
Router2(config)#ntp passive
Router2(config)#ntp server 172.17.0.1
Router2(config)#ntp master 4
Router2(config)#ntp server 192.168.0.2
A network administrator enabled port security on a switch interface connected to a printer. What is the next configuration action in order to allow the port to learn the MAC address of the printer and insert it into the table automatically?
enable dynamic MAC address learning
implement static MAC addressing.
enable sticky MAC addressing
implement auto MAC address learning

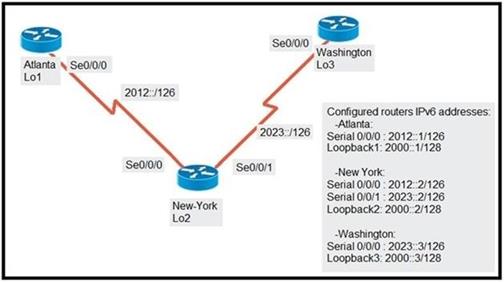

Refer to the exhibit.
The New York router is configured with static routes pointing to the Atlanta and Washington sites.
Which two tasks must be performed so that the Serial0/0/0 interfaces on the Atlanta and Washington routers can reach one another?
(Choose two.)
Configure the ipv6 route 2012::/126 2023::1 command on the Washington router.
Configure the ipv6 route 2023::/126 2012::1 command on the Atlanta router.
Configure the Ipv6 route 2012::/126 s0/0/0 command on the Atlanta router.
Configure the ipv6 route 2023::/126 2012::2 command on the Atlanta router.
Configure the ipv6 route 2012::/126 2023::2 command on the Washington router.
Where is the interface between the control plane and data plane within the software-defined architecture?
control layer and the infrastructure layer
application layer and the infrastructure layer
application layer and the management layer
control layer and the application layer
What are two benefits of using the PortFast feature? (Choose two )
Enabled interfaces are automatically placed in listening state
Enabled interfaces come up and move to the forwarding state immediately
Enabled interfaces never generate topology change notifications.
Enabled interfaces that move to the learning state generate switch topology change notifications
Enabled interfaces wait 50 seconds before they move to the forwarding state
What are two characteristics of an SSID? (Choose Two)
It can be hidden or broadcast in a WLAN
It uniquely identifies an access point in a WLAN
It uniquely identifies a client in a WLAN
It is at most 32 characters long.
IT provides secured access to a WLAN
What is the purpose of an SSID?
It provides network security
It differentiates traffic entering access posits
It identities an individual access point on a WLAN
It identifies a WLAN
Which plane is centralized by an SDN controller?
management-plane
control-plane
data-plane
services-plane
Refer to the exhibit.
A network administrator has been tasked with securing VTY access to a router Which access-list entry accomplishes this task?
access-list 101 permit tcp 10.1.10 0.0.0.255 172.16.10 0.0.0.255 eq ssh
access-list 101 permit tcp 10.11.0 0.0.0.255 172.16.10 0.0.0.255 eq scp
access-list 101 permit tcp 10.11.0 0.0.0.255 172.16.10 0.0.0.255 eq telnet
access-list 101 permit tcp 10.1.10 0.0.0.255 172.16.10 0.0.0.255 eq https
Which action is taken by a switch port enabled for PoE power classification override?
When a powered device begins drawing power from a PoE switch port a syslog message is generated
As power usage on a PoE switch port is checked data flow to the connected device is temporarily paused
If a switch determines that a device is using less than the minimum configured power it assumes the device has failed and disconnects
Should a monitored port exceeds the maximum administrative value for power, the port is shutdown and err-disabled
