Cisco 200-301 Practice Test - Questions Answers, Page 50
Question list
List of questions
Related questions
R1 has learned route 192.168.12.0/24 via IS-IS. OSPF, RIP. and Internal EIGRP Under normal operating conditions, which routing protocol is installed in the routing table?
IS-IS
RIP
Internal EIGRP
OSPF
What are two reasons that cause late collisions to increment on an Ethernet interface? (Choose two)
when the sending device waits 15 seconds before sending the frame again
when the cable length limits are exceeded
when one side of the connection is configured for half-duplex
when Carrier Sense Multiple Access/Collision Detection is used
when a collision occurs after the 32nd byte of a frame has been transmitted
Which QoS tool is used to optimize voice traffic on a network that is primarily intended for data traffic?
FIFO
WFQ
PQ
WRED
What are two characteristics of a controller-based network? (Choose two)
The administrator can make configuration updates from the CLI
It uses northbound and southbound APIs to communicate between architectural layers
It moves the control plane to a central point.
It decentralizes the control plane, which allows each device to make its own forwarding decisions
It uses Telnet to report system issues.
What is the benefit of configuring PortFast on an interface?
After the cable is connected, the interface uses the fastest speed setting available for that cable type
After the cable is connected, the interface is available faster to send and receive user data
The frames entering the interface are marked with higher priority and then processed faster by a switch.
Real-time voice and video frames entering the interface are processed faster

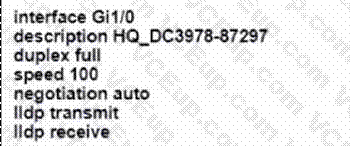

An engineer configures interface Gi1/0 on the company PE router to connect to an ISP Neighbor discovery is disabled
Which action is necessary to complete the configuration if the ISP uses third-party network devices?
Enable LLDP globally
Disable autonegotiation
Disable Cisco Discovery Protocol on the interface
Enable LLDP-MED on the ISP device
An implementer is preparing hardware for virtualization to create virtual machines on a host. What is needed to provide communication between hardware and virtual machines?
hypervisor
router
straight cable
switch
Refer to the exhibit.
Between which zones do wireless users expect to experience intermittent connectivity?
between zones 1 and 2
between zones 2 and 5
between zones 3 and 4
between zones 3 and 6
Refer to the exhibit.
A network engineer is in the process of establishing IP connectivity between two sites. Routers R1 and R2 are partially configured with IP addressing. Both routers have the ability to access devices on their respective LANs. Which command set configures the IP connectivity between devices located on both LANs in each site?
Option A
Option B
Option C
Option D
Refer to the exhibit.
Which IPv6 configuration is required for R17 to successfully ping the WAN interface on R18?
Question
