Which interface mode must be configured to connect the lightweight APs in a centralized architecture?
WLAN dynamic
management
trunk
access

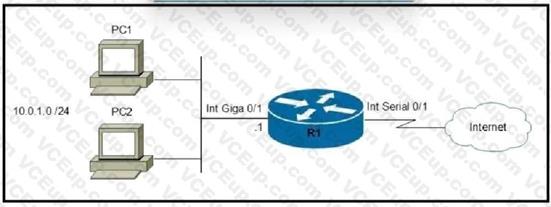

Refer to the exhibit.
Which two commands must be configured on router R1 to enable the router to accept secure remote-access connections? (Choose two )
transport input telnet
crypto key generate rsa
ip ssh pubkey-chain
login console
username cisco password 0 Cisco
Which type of network attack overwhelms the target server by sending multiple packets to a port until the half-open TCP resources of the target are exhausted?
SYIM flood
reflection
teardrop
amplification
Refer to the exhibit.
An engineer assumes a configuration task from a peer Router A must establish an OSPF neighbor relationship with neighbor 172 1 1 1 The output displays the status of the adjacency after 2 hours.
What is the next step in the configuration process for the routers to establish an adjacency?
Configure router A to use the same MTU size as router B.
Set the router B OSPF ID to a nonhost address.
Configure a point-to-point link between router A and router B.
Set the router B OSPF ID to the same value as its IP address

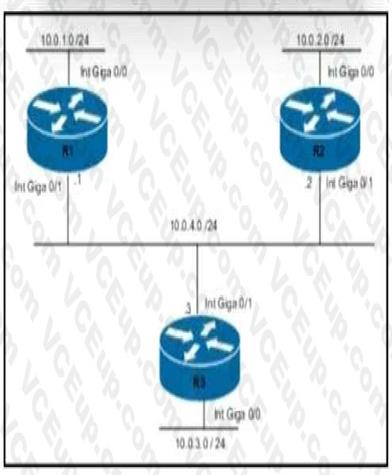

Refer to the exhibit.
Routers R1 and R3 have the default configuration The router R2 priority is set to 99 Which commands on R3 configure it as the DR in the 10.0 4.0/24 network?
R3(config)#interface Gig0/1 R3(config-if)#ip ospf priority 100
R3(config)#interface Gig0/0 R3(config-if)#ip ospf priority 100
R3(config)#interface Gig0/0 R3(config-if)i=ip ospf priority 1
R3(config)#interface Gig0/1 R3(config-if)#ip ospf priority 0

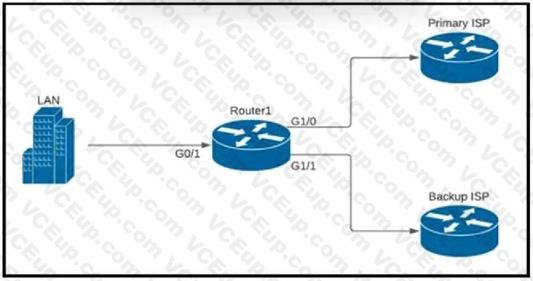

Refer to the exhibit.
A company is configuring a failover plan and must implement the default routes in such a way that a floating static route will assume traffic forwarding when the primary link goes down. Which primary route configuration must be used?
ip route 0.0.0.0 0.0.0.0 192.168.0.2 GigabitEthernetl/0
ip route 0.0.0.0 0.0.0.0 192.168.0.2 tracked
ip route 0.0.0.0 0.0.0.0 192.168.0.2 floating
ip route 0.0.0.0 0.0.0.0 192.168.0.2
What is one reason to implement LAG on a Cisco WLC?
to increase security and encrypt management frames
to provide link redundancy and load balancing
to allow for stateful and link-state failover
to enable connected switch ports to failover and use different VLANs
Which action implements physical access control as part of the security program of an organization?
configuring a password for the console port
backing up syslogs at a remote location
configuring enable passwords on network devices
setting up IP cameras to monitor key infrastructure
Drag and drop the REST API call methods for HTTP from the left onto the actions they perform on theright Not all methods are used.
Refer to the exhibit.
An engineer is asked to insert the new VLAN into the existing trunk without modifying anything previously configured Which command accomplishes this task?
switchport trunk allowed vlan 100-104
switchport trunk allowed vlan add 104
switchport trunk allowed vlan all
switchport trunk allowed vlan 104
