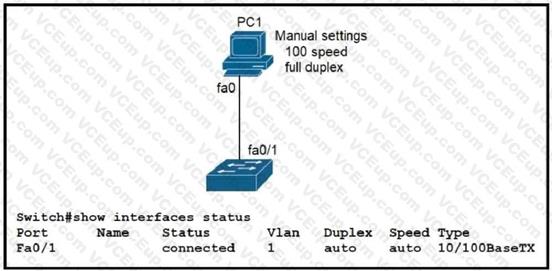

Refer to the exhibit.
The link between PC1 and the switch is up. but it is performing poorly. Which interface condition is causing the performance problem?
There is a duplex mismatch on the interface
There is an issue with the fiber on the switch interface.
There is a speed mismatch on the interface.
There is an interface type mismatch
Which PoE mode enables powered-device detection and guarantees power when the device is detected?
dynamic
static
active
auto
What is an expected outcome when network management automation is deployed?
A distributed management plane must be used.
Software upgrades are performed from a central controller
Complexity increases when new device configurations are added
Custom applications are needed to configure network devices
Drag and drop the functions of SNMP fault-management from the left onto the definitions on the right.

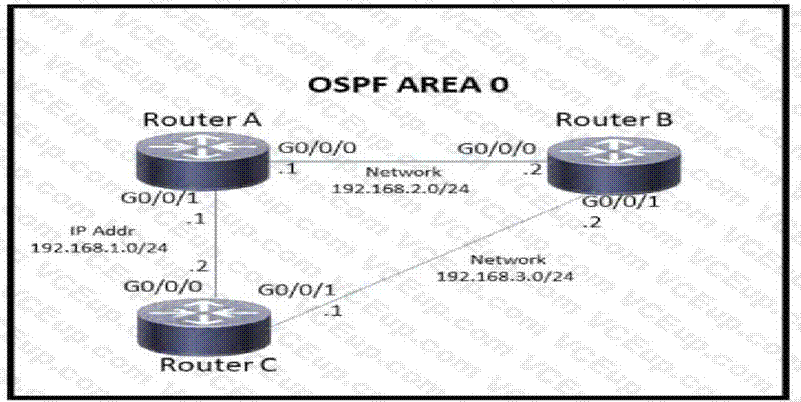

Refer to the exhibit.
Which action must be taken to ensure that router A is elected as the DR for OSPF area 0?
Configure the OSPF priority on router A with the lowest value between the three routers.
Configure router B and router C as OSPF neighbors of router A.
Configure the router A interfaces with the highest OSPF priority value within the area.
Configure router A with a fixed OSPF router ID

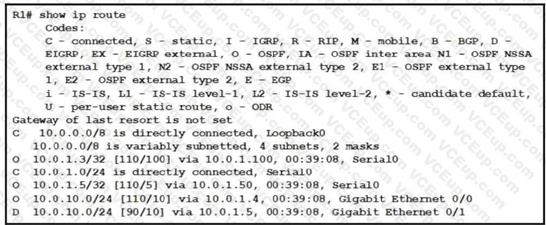

Refer to the exhibit.
Web traffic is coming in from the WAN interface. Which route takes precedence when the router is processing traffic destined for the LAN network at 10 0.10.0/24?
via next-hop 10.0.1.5
via next-hop 10 0 1.4
via next-hop 10.0 1.50
via next-hop 10.0 1 100
Which two components comprise part of a PKI? (Choose two.)
preshared key that authenticates connections
RSA token
CA that grants certificates
clear-text password that authenticates connections
one or more CRLs
Refer to the exhibit.
Drag and drop the prefix lengths from the left onto the corresponding prefixes on the right Not all prefixes are used
See the answer below
What are two benefits of FHRPs? (Choose two.)
They enable automatic failover of the default gateway.
They allow multiple devices to serve as a single virtual gateway for clients in the network.
They are able to bundle multiple ports to increase bandwidth.
They prevent loops in the Layer 2 network.
They allow encrypted traffic.
Refer to the exhibit.
Which command configures OSPF on the point-to-point link between routers R1 and R2?
router-id 10.0.0.15
neighbor 10.1.2.0 cost 180
ipospf priority 100
network 10.0.0.0 0.0.0.255 area 0
