Refer to the exhibit.

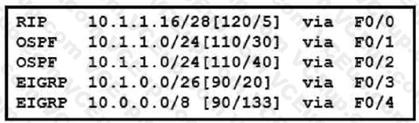

Packets received by the router from BGP enter via a serial interface at 209 165 201 1 Each route is present within the routing table Which interface is used to forward traffic with a destination IP of 10.1.1.19?
F0/4
F0/0
F0/1
F0/3
Refer to the exhibit.

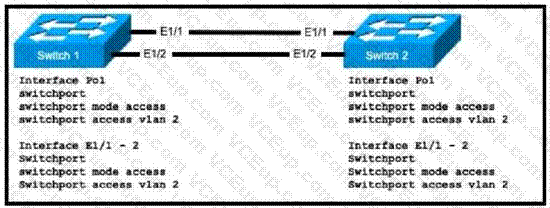

An engineer is configuring an EtherChannel using LACP between Switches 1 and 2 Which configuration must be applied so that only Switch 1 sends LACP initiation packets?
Switch 1 (config-if)#channel-group 1 mode on
Swrtch2(config-if)#channel-group 1 mode passive
Switch1(config-if)#channel-group 1 mode passive
Switch2(config-if)#channel-group 1 mode active
Switch1{config-if)£channel-group 1 mode active
Switch2(config-if)#channel-group 1 mode passive
Switch1(config-if)#channel-group 1 mode on
Switch2(config-if)#channel-group 1 mode active
Refer to the exhibit.

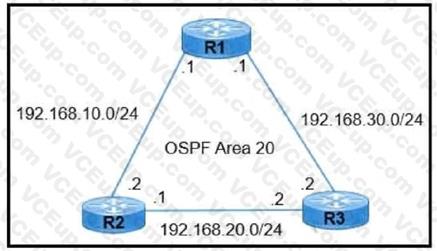

R1 learns all routes via OSPF Which command configures a backup static route on R1 to reach the 192 168.20.0/24 network via R3?
R1(config)#ip route 192.168.20.0 255.255.0.0 192.168.30.2
R1(config)#ip route 192.168.20.0 255.255.255.0 192.168.30.2 90
R1(config)#ip route 192.168.20.0 255.255.255.0 192.168.30.2 111
R1(config)#ip route 192.168.20.0 255.255.255.0 192.168.30.2
What is the difference between IPv6 unicast and anycast addressing?
IPv6 anycast nodes must be explicitly configured to recognize the anycast address, but IPv6 unicast nodes require no special configuration
IPv6 unicast nodes must be explicitly configured to recognize the unicast address, but IPv6 anycast nodes require no special configuration
An individual IPv6 unicast address is supported on a single interface on one node but an IPv6 anycast address is assigned to a group of interfaces on multiple nodes.
Unlike an IPv6 anycast address, an IPv6 unicast address is assigned to a group of interfaces on multiple nodes
Refer to the exhibit.

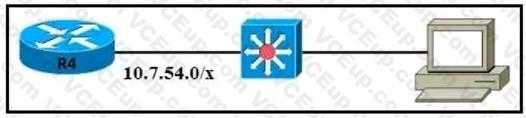

The router has been configured with a supernet to accommodate the requirement for 380 users on a subnet The requirement already considers 30% future growth. Which configuration verifies the IP subnet on router R4?
Refer to the exhibit.

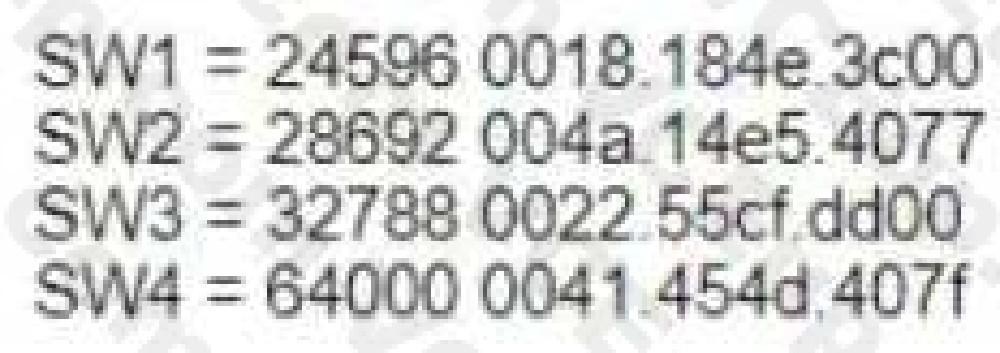

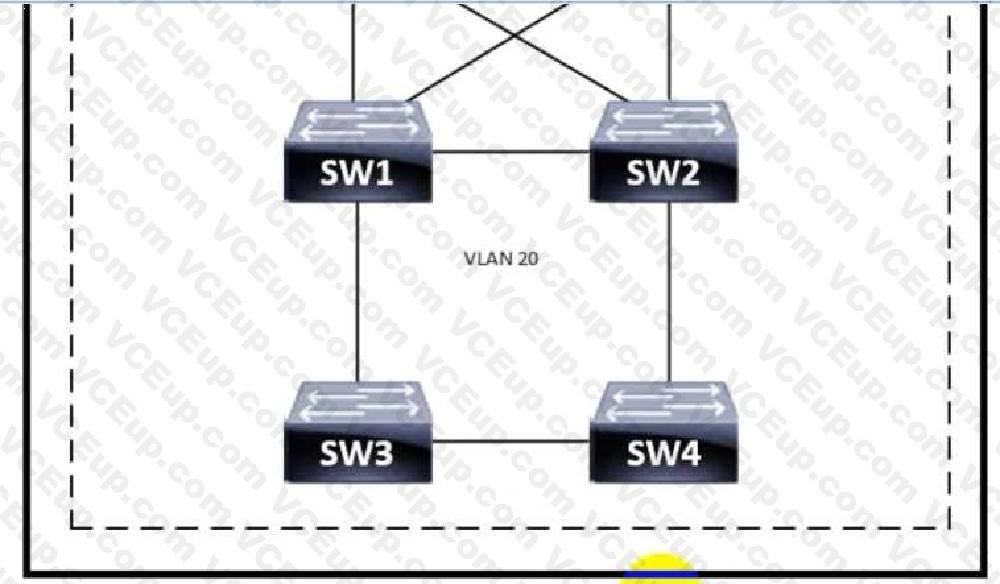

Which switch becomes the root of a spanning tree for VLAN 20 if all li links are of equal speed?
SW1
SW2
SW3
SW4
Which two spanning-tree states are bypassed on an interface running PortFast? (Choose two.)
disabled
listening
forwarding
learning
blocking
A Cisco engineer is configuring a factory-default router with these three passwords:
• The user EXEC password for console access is p4ssw0rd1
• The user EXEC password for Telnet access is s3cr3t2
• The password for privileged EXEC mode is pnv4t3p4ss Which command sequence must the engineer configured
How does Rapid PVST+ create a fast loop-free network topology?
lt requires multiple links between core switches
It generates one spanning-tree instance for each VLAN
It maps multiple VLANs into the same spanning-tree instance
It uses multiple active paths between end stations.
