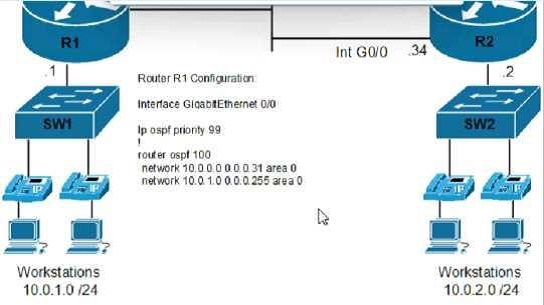

Refer to the exhibit.
An engineer must configure router R2 so it is elected as the DR on the WAN subnet. Which command sequence must be configured?
Refer to the exhibit.
What is represented by "R1" and "SW1" within the JSON output?
key
array
value
object
Refer to the exhibit.
How many objects are present in the given JSON-encoded data?
one
four
seven
nine
What are two examples of multifactor authentication? (Choose two.)
single sign-on
unique user knowledge
passwords that expire
soft tokens
shared password responsibility
Refer to the exhibit.
After configuring a new static route on the CPE. the engineer entered this series of commands to verify that the new configuration is operating normally When is the static default route installed into the routing table?
when 203 0 113.1 is no longer reachable as a next hop
when the default route learned over external BGP becomes invalid
when a route to 203.0 113 1 is learned via BGP
when the default route over external BGP changes its next hop
How does encryption project the wireless network?
via integrity checks to identify wireless forgery attacks in the frame
via specific ciphers to detect and prevent zero-day network attacks
via an algorithm to change wireless data so that only the access point and client understand it
via a policy to prevent unauthorized users from communicating on the wireless network
Which action implements physical access control as part of the security program of an organization1?
backing up syslogs at a remote location
configuring a password for the console port
configuring enable passwords on network devices
setting up IP cameras to monitor key infrastructure
Why implement VRRP?
to provide end users with a virtual gateway in a multivendor network
to leverage a weighting scheme to provide uninterrupted service
to detect link failures without the overhead of Bidirectional Forwarding Detection
to hand over to end users the autodiscovery of virtual gateways
A packet from a company s branch office is destined to host 172.31.0.1 at headquarters. The sending router has three possible matches in its routing table for the packet prefixes: 172. 31.0 .0/16.72.31.0.0724. and 172.31 0 0/25. How does the router handle the packet?
It sends the traffic via prefix 172.31.0.0/16
It sends the traffic via the default gateway 0.0.0.070.
It sends the traffic via prefix 172.31.0.0/24
It sends the traffic via prefix 172.31.0.0/25
Refer to the exhibit.
An engineer must configure the interface that connects to PC 1 and secure it in a way that only PC1 is allowed to use the port No VLAN tagging can be used except for a voice VLAN. Which command sequence must be entered to configure the switch?
