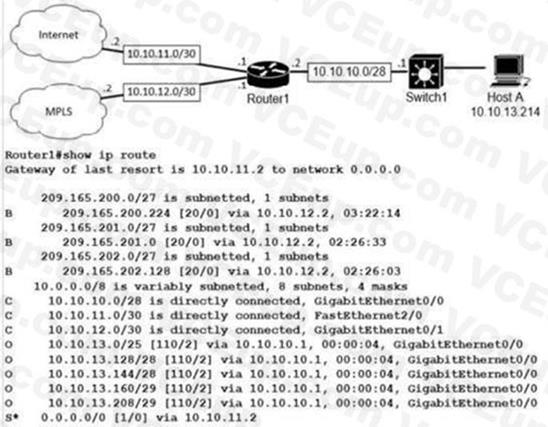

Refer to the exhibit.
What is the prefix length for the route that router1 will use to reach host A?
/25
/27
/28
/29

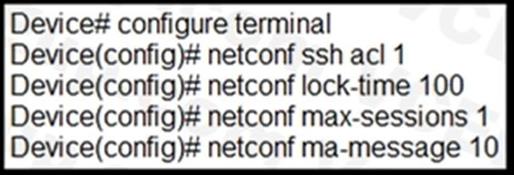

Refer to the exhibit.
A network engineer must configure NETCONF. After creating the configuration, the engineer gets output from the command show line but not from show running- config. Which command completes the configuration?
Device(config)# netconf lock-time 500
Device(config)# netconf max-message 1000
Device(config)# no netconf ssh acl 1
Device(config)# netconf max-sessions 100

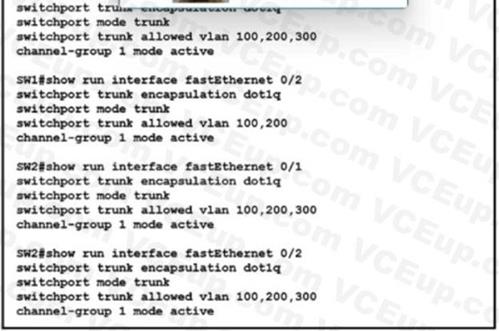

Refer to Exhibit.
Refer to the exhibit. An engineer is building a new Layer 2 LACP EtherChannel between SW1 and SW2. and they executed the given show commands to verify the work Which additional task must be performed so that the switches successfully bundle the second member in the LACP port-channel?
Configure the switchport trunk allowed vlan 300 command on SW1 port-channel 1
Configure the switchport trunk allowed vlan 300 command on interface Fa0/2 on SW1.
Configure the switchport trunk allowtd vlan add 300 command on interface FaO 2 on SW2.
Configure the switchport trunk allowtd vlan add 300 command on SW1 port-channel 1

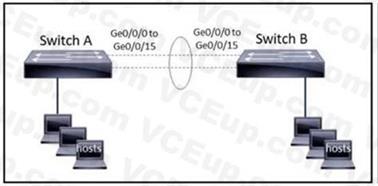

Refer to the exhibit.
The EtherChannel is configured with a speed of 1000 and duplex as full on both ends of channel group 1. What is the next step to configure the channel on switch A to respond to but not initiate LACP communication?
interface range gigabitethernet0/0/0-15 channel-group 1 mode on
interface range gigabitethernet0/0/0-15 channel-group 1 mode desirable
interface port-channel 1 channel-group 1 mode auto
interface port-channel 1 channel-group 1 mode passive

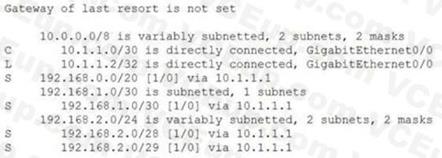

Refer to the exhibit.
An engineer is checking the routing table in the main router to identify the path to a server on the network. Which route does the router use to reach the server at 192.168.2.2?
S 192.168.0.0/20 [1/0] via 10.1.1.1
S 192.168.2.0/29 [1/0] via 10.1.1.1
S 192.168.2.0/28 [1/0] via 10.1.1.1
S 192.168.1.0/30 [1/0] via 10.1.1.1
Why would a network administrator choose to implement automation in a network environment?
To simplify the process of maintaining a consistent configuration state across all devices
To centralize device information storage
To implement centralized user account management
To deploy the management plane separately from the rest of the network

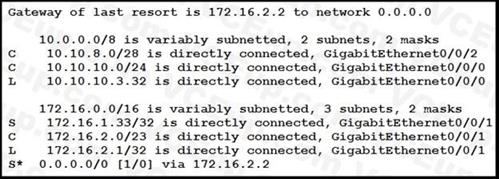

Refer to the exhibit.
A packet sourced from 10.10.10.1 is destined for 10.10.8.14. What is the subnet mask of the destination route?
255.255.254.0
255.255.255.240
255.255.255.248
255.255.255.252
Which two VPN technologies are recommended by Cisco for multiple branch offices and large-scale deployments? (Choose two.)
site-to-site VPN
IDMVPN
IGETVPN
IPsec remote access
clientless VPN
Two switches have been implemented and all interfaces are at the default configuration level. A trunk link must be implemented between two switches with these requirements:
• using an industry-standard trunking protocol
• permitting VLANs 1 -10 and denying other VLANs
How must the interconnecting ports be configured?
Why is a first-hop redundancy protocol implemented?
to protect against default gateway failures
to prevent loops in a network
to enable multiple switches to operate as a single unit
to provide load-sharing for a multilink segment
