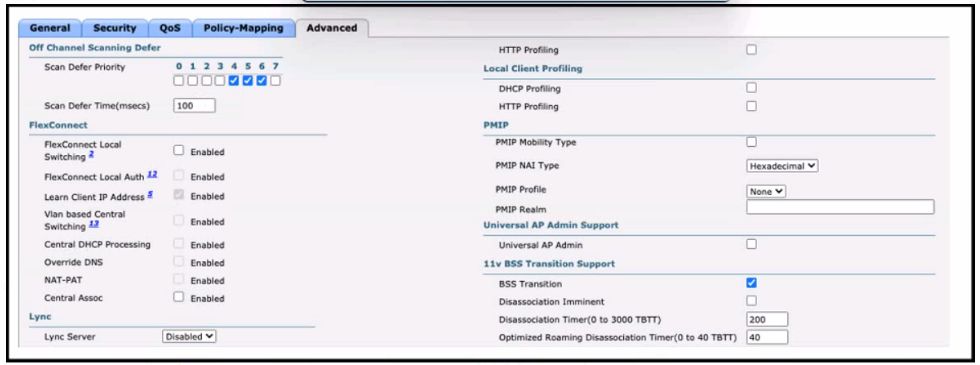

Refer to the exhibit.
An architect is managing a wireless network with APs from several branch offices connecting to the WLC in the data center. There is a new requirement for a single WLAN to process the client data traffic without sending it to the WLC. Which action must be taken to complete the request?
Enable local HTTP profiling.
Enable Disassociation Imminent.
Enable FlexConnect Local Switching.
Enable local DHCP Profiling.
What is the role of SNMP in the network?
to monitor network devices and functions using a TCP underlay that operates on the presentation layer
to collect data directly from network devices using an SSL underlay that operates on the transport layer
to monitor and manage network devices using a UDP underlay that operates on the application layer
to collect telemetry and critical information from network devices using an SSH underlay that operates on the network layer
What are two purposes of HSRP? (Choose two.)
It groups two or more routers to operate as one virtual router.
It improves network availability by providing redundant gateways.
It passes configuration information to hosts in a TCP/IP network.
It helps hosts on the network to reach remote subnets without a default gateway.
It provides a mechanism for diskless clients to autoconfigure their IP parameters during boot.

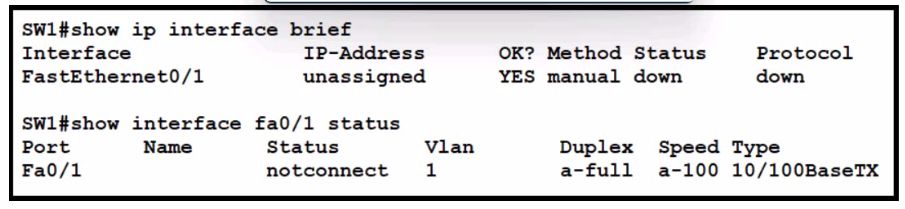

Refer to the Exhibit.
Refer to the exhibit. What is the cause of the issue?
STP
port security
wrong cable type
shutdown command

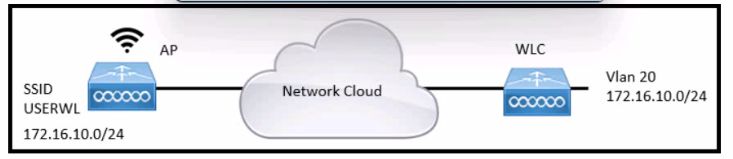

Refer to the exhibit.
A network engineer is configuring a WLAN to connect with the 172.16.10.0/24 network on VLAN 20. The engineer wants to limit the number of devices that connect to the WLAN on the USERWL SSID to 125. Which configuration must the engineer perform on the WLC?
In the Management Software activation configuration, set the Clients value to 125.
In the Controller IPv6 configuration, set the Throttle value to 125.
In the WLAN configuration, set the Maximum Allowed Clients value to 125.
In the Advanced configuration, set the DTIM value to 125.
Which interface or port on the WLC is the default for in-band device administration and communications between the controller and access points?
virtual interface
management interface
console port
service port
Which (unction generally performed by a traditional network device is replaced by a software-defined controller?
encryption and decryption for VPN link processing
building route tables and updating the forwarding table
changing the source or destination address during NAT operations
encapsulation and decapsulation of packets in a data-link frame
Refer to the exhibit.
Which IP route command created the best path for a packet destined for 10.10.10.3?
ip route 10.10.0.0 255.255.252.0 g0/0
ip route 10.0.0.0 255.0.0.0 g0/0
ip route 10.10.10.1 255.255.255.255 g0/0
ip route 10.10.10.0 255.255.255.240 g0/0
Refer to the exhibit.
How many arrays are present in the JSON data?
one
three
six
nine
A network engineer must configure an access list on a new Cisco IOS router. The access list must deny HTTP traffic to network 10.125.128.32/27 from the 192.168.240.0/20 network, but it must allow the 192.168.240.0/20 network to reach the rest of the 10.0.0.0/8 network. Which configuration must the engineer apply?
A)
B)
C)
D)
Option A
Option B
Option C
Option D
