Cisco 200-301 Practice Test - Questions Answers, Page 98

Add to Whishlist

List of questions

Question 971

A network administrator wants the syslog server to filter incoming messages into different files based on their Importance. Which filtering criteria must be used?

level

message body

process ID

facility

Show Answer Comment (0)

Question 972

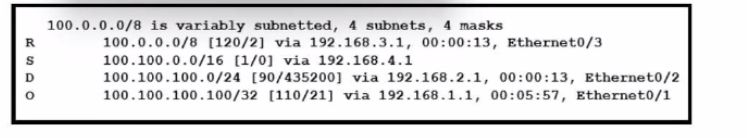

Refer to the exhibit.

Cisco 200-301 image Question 870 133809 12262024182304000000

Refer to the exhibit. How will the device handle a packet destined to IP address 100.100.100.100?

If will choose the route with the longest match. O 100.100.100.100'32 (110/21) via 192.168.1.1. 00:05:57. EmernetO/1.

It will always prefer the static route over dynamic routes and choose the route S 100.100.0.0/16(1/0] via 192.168.4.1.

It will choose the route with the highest metric. D 100.100.100.0/24 (90/435200) via 192.168.2.1. 00:00:13. EthernetO/2.

It will choose the route with the lowest metric, R 100.0.0.0/8 [120/2] via 192.168.3.1. 00:00:13. EthernetO/3.

Show Answer Comment (0)

Question 973

An engineer must configure a core router with a floating static default route to the backup router at 10.200.0.2. Which command meets the requirements?

ip route 0.0.0.0 0.0.0.0 10.200.0.2 1

Ip route 0.0.0.0 0.0.0.0 10.200.0.2 floating

ip route 0.0.0.0 0.0.0.0 10.200.0.2

Ip route 0.0.0.0 0.0.0.0 10.200.0.2 10

Show Answer Comment (0)

Question 974

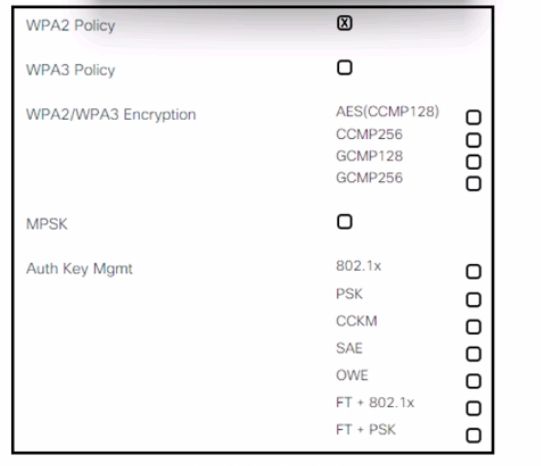

Refer to the exhibit.

Cisco 200-301 image Question 872 133811 12262024182304000000

Refer to the exhibit. An engineer is creating a secure preshared key based SSID using WPA2 for a wireless network running on 2.4 GHz and 5 GHz. Which two tasks must the engineer perform to complete the process? (Choose two.)

Select the 802.1 x option for Auth Key Management.

Select the WPA Policy option.

Select the PSK option for Auth Key Management.

Select the AES option for Auth Key Management.

Select the AES (CCMP128) option for WPA2/WPA3 Encryption.

Show Answer Comment (0)

Question 975

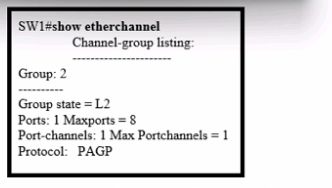

Refer to the exhibit.

Cisco 200-301 image Question 873 133812 12262024182304000000

Refer to the exhibit. A network engineer updates the existing configuration on interface fastethernet1/1 switch SW1. It must establish an EtherChannel by using the same group designation with another vendor switch. Which configuration must be performed to complete the process?

interface port-channel 2 channel-group 2 mode desirable

interface fasteinernet 1/1 channel-group 2 mode active

interface fasteinernet 1/1 channel-group 2 mode on

interface port-channel 2 channel-group 2 mode auto

Show Answer Comment (0)

Question 976

A HCP pool has been created with the name CONTROL. The pool uses the next to last usable IP address as the default gateway for the DHCP clients. The server is located at 172.16 32.15. What is the step in the process for clients on the 192.168.52.0/24 subnet to reach the DHCP server?

ip forward-protocol udp 137

ip default-network 192.168.52.253

ip helper-address 172.16.32.15

ip default-gateway 192.168.52.253

Show Answer Comment (0)

Question 977

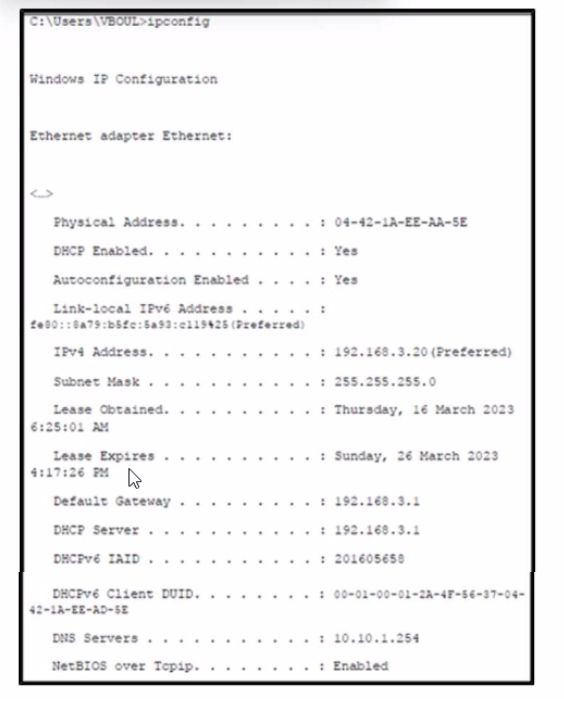

Refer to the exhibit. The user has connectivity to devices on network 192.168.3 0/24 but cannot reach users on the network 10.10.1.0724.

What is the first step to verify connectivity?

Cisco 200-301 image Question 875 133814 12262024182304000000

Is the internet reachable?

Is the default gateway reachable?

Is the DNS server reachable?

Show Answer Comment (0)

Question 978

Which CRUD operation corresponds to me HTTP GET method?

delete

create

update

read

Show Answer Comment (0)

Question 979

What is the main difference between traditional networks and controller-based networking?

Controller-based networks increase TCO for the company, and traditional networks require less investment.

Controller-based networks provide a framework for Innovation, and traditional networks create efficiency.

Controller-based networks are open for application requests, and traditional networks operate manually.

Controller-based networks are a closed ecosystem, and traditional networks take advantage of programmability.

Show Answer Comment (0)

Question 980

Which WLC management connection type is vulnerable to man-in-the-middIe attacks?

Telnet

console

HTTPS

SSH

Show Answer Comment (0)
