Which type of traffic Is sent with pure iPsec?
broadcast packets from a switch that is attempting to locate a MAC address at one of several remote sites
multicast traffic from a server at one site to hosts at another location
spanning-tree updates between switches that are at two different sites
unicast messages from a host at a remote site lo a server at headquarters
R1 has learned route 10.10.10.0/24 via numerous routing protocols. Which route is installed?
route with the lowest cost
route with the next hop that has the highest IP
route with the shortest prefix length
route with the lowest administrative distance
Which configuration management mechanism uses TCP port 22 by default when communicating with managed nodes?
Ansible
Python
Puppet
Chef
Which 802.11 frame type is indicated by a probe response after a client sends a probe request?
action
management
control
data
Which two must be met before SSH can operate normally on a Cisco IOS switch? (Choose two)
The switch must be running a k9 (crypto) IOS image
The Ip domain-name command must be configured on the switch
IP routing must be enabled on the switch
A console password must be configured on the switch
Telnet must be disabled on the switch

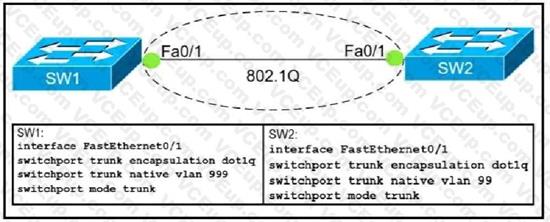

Refer to Exhibit.
Which action do the switches take on the trunk link?
The trunk does not form and the ports go into an err-disabled status.
The trunk forms but the mismatched native VLANs are merged into a single broadcast domain.
The trunk does not form, but VLAN 99 and VLAN 999 are allowed to traverse the link.
The trunk forms but VLAN 99 and VLAN 999 are in a shutdown state.

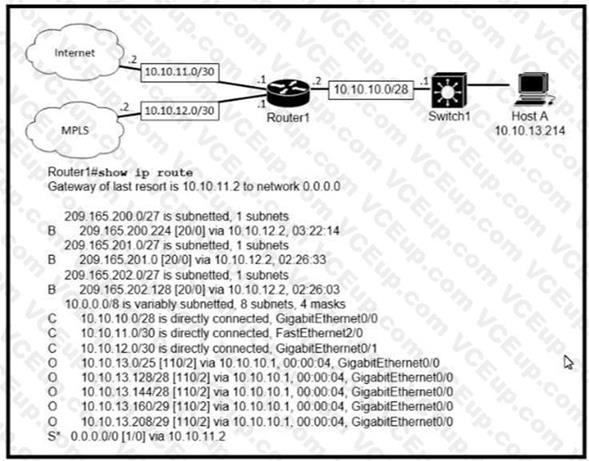

Refer to the exhibit.
Which prefix does Router 1 use for traffic to Host A?
10.10.10.0/28
10.10.13.0/25
10.10.13.144/28
10.10.13.208/29
Refer to the exhibit.
Router R2 is configured with multiple routes to reach network 10 1.1 0/24 from router R1. What protocol is chosen by router R2 to reach the destination network 10.1 1 0/24?
eBGP
static
OSPF
EIGRP
Refer to the exhibit.
Which two prefixes are included in this routing table entry? (Choose two.)
192.168.1.17
192.168.1.61
192.168.1.64
192.168.1.127
192.168.1.254
which IPv6 address block forwards packets to a multicast address rather than a unicast address?
2000::/3
FC00::/7
FE80::/10
FF00::/12
