What are two recommendations for protecting network ports from being exploited when located in an office space outside of an IT closer? (Choose two.)
enable the PortFast feature on ports
implement port-based authentication
configure static ARP entries
configure ports to a fixed speed
shut down unused ports
Refer to the exhibit.
Which route type does the routing protocol Code D represent in the output?
internal BGP route
/24 route of a locally configured IP
statically assigned route
route learned through EIGRP
which type of IPv6 address is publicly routable in the same way as IPv4 public address?
global unicast
link-local
unique local
multicast

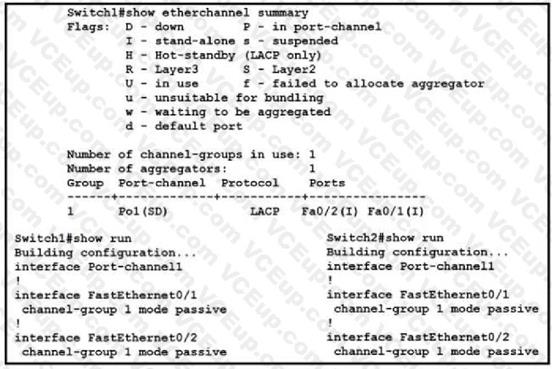

Refer to the exhibit.
Which change to the configuration on Switch? allows the two switches to establish an GtherChannel?
Change the protocol to EtherChannel mode on.
Change the LACP mode to active
Change the LACP mode to desirable
Change the protocol to PAqP and use auto mode
What Is the path for traffic sent from one user workstation to another workstation on a separate switch In a Ihree-lter architecture model?
access - core - distribution - access
access - distribution - distribution - access
access - core - access
access -distribution - core - distribution - access

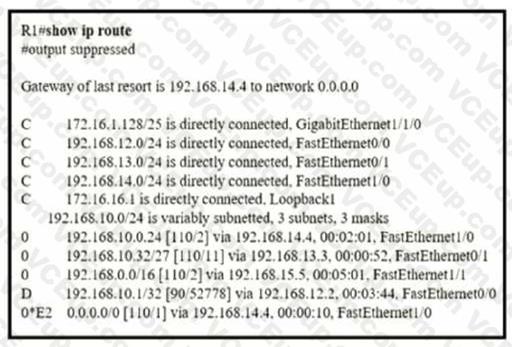

Refer to the exhibit.
If R1 receives a packet destined to 172.161.1, to which IP address does it send the packet?
192.168.12.2
192.168.13.3
192.168.14.4
192.168.15.5
A packet is destined for 10.10.1.22. Which static route does the router choose to forward the packet?
ip route 10.10.1.0 255.255.255.240 10.10.255.1
ip route 10.10.1.16 255.255.255.252 10.10.255.1
ip route 10.10.1.20 255.255.255.252 10.10.255.1
ip route 10.10.1.20 255.255.255.254 10.10.255.1
An office has 8 floors with approximately 30-40 users per floor What command must be configured on the router Switched Virtual Interface to use address space efficiently?
ip address 192.168.0.0 255.255.0.0
ip address 192.168.0.0 255.255.254.0
ip address 192.168.0.0 255.255.255.128
ip address 192.168.0.0 255.255.255.224
Which command must be entered when a device is configured as an NTP server?
ntp authenticate
ntp server
ntp peer
ntp master
Which command must be entered to configure a DHCP relay?
ip helper-address
ip address dhcp
ip dhcp pool
ip dhcp relay
