Refer to the exhibit.
Which route type is configured to reach the internet?
host route
default route
floating static route
network route
An engineer needs to configure LLDP to send the port description time length value (TLV). What command sequence must be implemented?
switch(config-line)#IIdp port-description
switch(config)#IIdp port-description
switch(config-if)#IIdp port-description
switch#IIdp port-description
A user configured OSPF and advertised the Gigabit Ethernet interface in OSPF By default, which type of OSPF network does this interface belong to?
point-to-multipoint
point-to-point
broadcast
nonbroadcast
What benefit does controller-based networking provide versus traditional networking?
moves from a two-tier to a three-tier network architecture to provide maximum redundancy
provides an added layer of security to protect from DDoS attacks
allows configuration and monitoring of the network from one centralized port
combines control and data plane functionality on a single device to minimize latency
What are two benefits of FHRPs? (Choose two.)
They prevent (oops in the Layer 2 network.
They allow encrypted traffic.
They are able to bundle muftlple ports to increase bandwidth
They enable automatic failover of the default gateway.
They allow multiple devices lo serve as a single virtual gateway for clients in the network

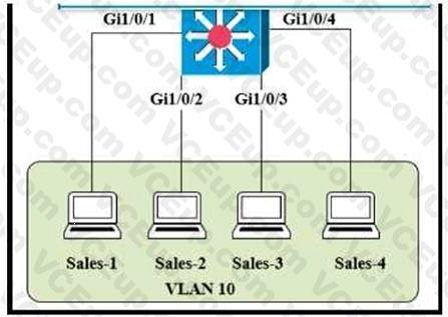

Refer to the exhibit.

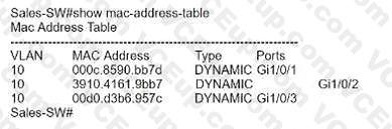

The entire contents of the MAC address table are shown. Sales-4 sends a data frame to Sales-1.
What does the switch do as it receives the frame from Sales-4?
Perform a lookup in the MAC address table and discard the frame due to a missing entry.
Insert the source MAC address and port into the forwarding table and forward the frame to Sales- 1.
Map the Layer 2 MAC address to the Layer 3 IP address and forward the frame.
Flood the frame out of all ports except on the port where Sales-1 is connected.
How does CAPWAP communicate between an access point in local mode and a WLC?
The access point must directly connect to the WLC using a copper cable
The access point must not be connected to the wired network, as it would create a loop
The access point must be connected to the same switch as the WLC
The access point has the ability to link to any switch in the network, assuming connectivity to the WLC
Where does wireless authentication happen?
SSID
radio
band
Layer 2
Refer to the exhibit. An engineer must add a subnet for a new office that will add 20 users to the network. Which IPv4 network and subnet mask combination does the engineer assign to minimize wasting addresses?
10.10.225.48 255.255.255.240
10.10.225.32 255.255.255.240
10.10.225.48 255.255.255.224
10.10.225.32 255.255.255.224
Which WPA3 enhancement protects against hackers viewing traffic on the Wi-Fi network?
TKiP encryption
AES encryption
scrambled encryption key
SAE encryption
