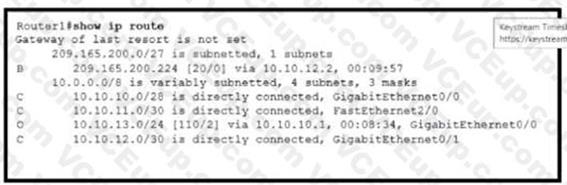

Refer to me exhibit.
Which action is taken by the router when a packet is sourced from 10.10.10.2 and destined for 10.10.10.16?
It uses a route that is similar to the destination address
It discards the packets.
It floods packets to all learned next hops.
It Queues the packets waiting for the route to be learned.

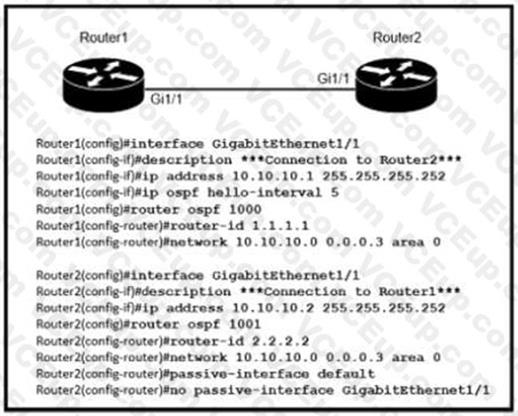

Refer to the exhibit. After the configuration is applied, the two routers fail to establish an OSPF neighbor relationship. what is the reason for the problem?
The OSPF router IDs are mismatched.
Router2 is using the default hello timer.
The network statement on Router1 is misconfigured.
The OSPF process IDs are mismatched.
Which design element is a best practice when deploying an 802.11b wireless infrastructure?
disabling TPC so that access points can negotiate signal levels with their attached wireless devices.
setting the maximum data rate to 54 Mbps on the Cisco Wireless LAN Controller
allocating nonoverlapping channels to access points that are in close physical proximity to one another
configuring access points to provide clients with a maximum of 5 Mbps

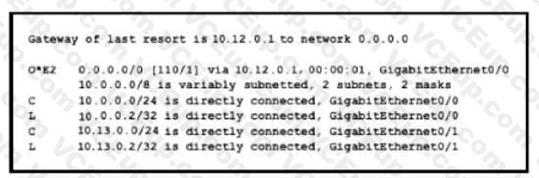

Refer to the exhibit.
If configuring a static default route on the router with the ip route 0.0.0.0 0.0.0.0 10.13.0.1 120 command how does the router respond?
It ignores the new static route until the existing OSPF default route is removed
It immediately replaces the existing OSPF route in the routing table with the newly configured static route
It starts load-balancing traffic between the two default routes
It starts sending traffic without a specific matching entry in the routing table to GigabitEthernetO/1
What does an SDN controller use as a communication protocol to relay forwarding changes to a southbound API?
OpenFlow
Java
REST
XML

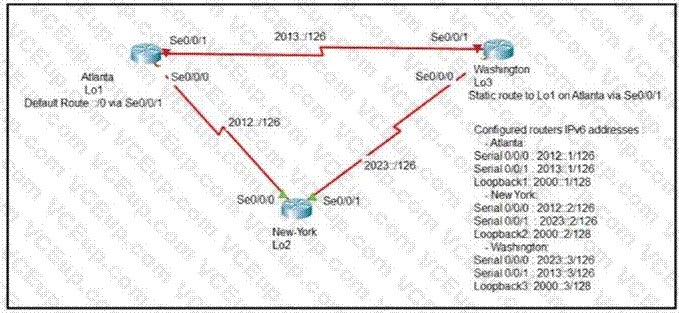

Refer to Exhibit.
An engineer is configuring the NEW York router to reach the Lo1 interface of the Atlanta router using interface Se0/0/0 as the primary path. Which two commands must be configured on the New York router so that it can reach the Lo1 interface of the Atlanta router via Washington when the link between New York and Atlanta goes down? (Choose two)
ipv6 router 2000::1/128 2012::1
ipv6 router 2000::1/128 2012::1 5
ipv6 router 2000::1/128 2012::2
ipv6 router 2000::1/128 2023::2 5
ipv6 router 2000::1/128 2023::3 5
Which statement correctly compares traditional networks and controller-based networks?
Only traditional networks offer a centralized control plane
Only traditional networks natively support centralized management
Traditional and controller-based networks abstract policies from device configurations
Only controller-based networks decouple the control plane and the data plane
How does the dynamically-learned MAC address feature function?
The CAM table is empty until ingress traffic arrives at each port
Switches dynamically learn MAC addresses of each connecting CAM table.
The ports are restricted and learn up to a maximum of 10 dynamically-learned addresses
It requires a minimum number of secure MAC addresses to be filled dynamically
Refer to the exhibit.
Which route does R1 select for traffic that is destined to 192 168.16.2?
192.168.16.0/21
192.168.16.0/24
192.168 26.0/26
192.168.16.0/27
Which technology can prevent client devices from arbitrarily connecting to the network without state remediation?
802.1x
IP Source Guard
MAC Authentication Bypass
802.11n
