An engineer observes high usage on the 2.4GHz channels and lower usage on the 5GHz channels.
What must be configured to allow clients to preferentially use 5GH2 access points?
Re- Anchor Roamed Clients
11ac MU-MIMO
OEAP Split Tunnel
Client Band Select

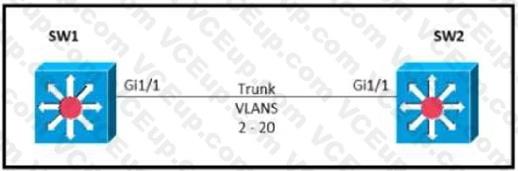

Refer to the exhibit.
Which command must be executed for Gi1.1 on SW1 to become a trunk port if Gi1/1 on SW2 is configured in desirable or trunk mode?
switchport mode trunk
switchport mode dot1-tunnel
switchport mode dynamic auto
switchport mode dynamic desirable
Which IPv6 address type provides communication between subnets and is unable to route on the Internet?
global unicast
unique local
link-local
multicast
What are two descriptions of three-tier network topologies? (Choose two)
The core and distribution layers perform the same functions
The access layer manages routing between devices in different domains
The network core is designed to maintain continuous connectivity when devices fail.
The core layer maintains wired connections for each host
The distribution layer runs Layer 2 and Layer 3 technologies

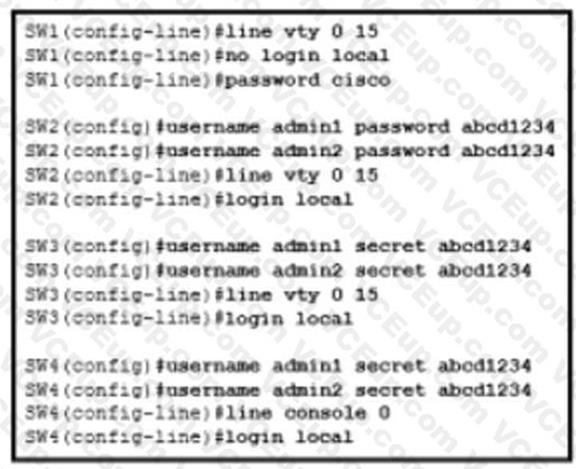

Refer to the exhibit.
An administrator configures four switches for local authentication using passwords that are stored in a cryptographic hash. The four switches must also support SSH access for administrators to manage the network infrastructure. Which switch is configured correctly to meet these requirements?
SW1
SW2
SW3
SW4
What is a role of access points in an enterprise network?
connect wireless devices to a wired network
support secure user logins to devices or the network
integrate with SNMP in preventing DDoS attacks
serve as a first line of defense in an enterprise network
What is a function of TFTP in network operations?
transfers a backup configuration file from a server to a switch using a username and password
transfers files between file systems on a router
transfers a configuration files from a server to a router on a congested link
transfers IOS images from a server to a router for firmware upgrades
A network engineer must create a diagram of a multivendor network. Which command must be configured on the Cisco devices so that the topology of the network can be mapped?
Device(Config)#lldp run
Device(Config)#cdp run
Device(Config-if)#cdp enable
Device(Config)#flow-sampler-map topology
What is the same for both copper and fiber interfaces when using SFP modules?
They support an inline optical attenuator to enhance signal strength
They provide minimal interruption to services by being hot-swappable
They offer reliable bandwidth up to 100 Mbps in half duplex mode
They accommodate single-mode and multi-mode in a single module
When a WLAN with WPA2 PSK is configured in the Wireless LAN Controller GUI which format is supported?
Unicode
base64
decimal
ASCII
