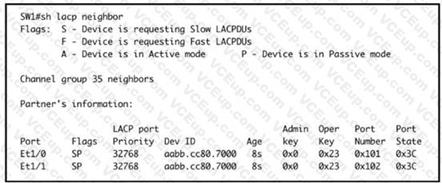

Refer to the exhibit.
Based on the LACP neighbor status, in which mode is the SW1 port channel configured?
passive
mode on
auto
active
Which result occurs when PortFast is enabled on an interface that is connected to another switch?
Spanning tree may fail to detect a switching loop in the network that causes broadcast storms
VTP is allowed to propagate VLAN configuration information from switch to switch automatically.
Root port choice and spanning tree recalculation are accelerated when a switch link goes down
After spanning tree converges PortFast shuts down any port that receives BPDUs.
What is the primary different between AAA authentication and authorization?
Authentication verifies a username and password, and authorization handles the communication between the authentication agent and the user database.
Authentication identifies a user who is attempting to access a system, and authorization validates the users password
Authentication identifies and verifies a user who is attempting to access a system, and authorization controls the tasks the user can perform.
Authentication controls the system processes a user can access and authorization logs the activities the user initiates

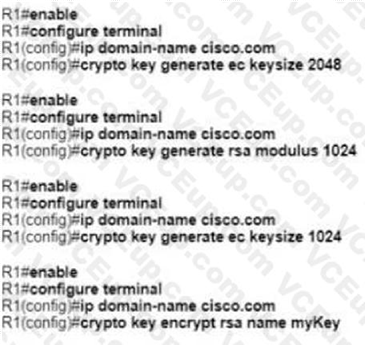

A network administrator must to configure SSH for remote access to router R1 The requirement is to use a public and private key pair to encrypt management traffic to and from the connecting client.
Which configuration, when applied, meets the requirements?
Option A
Option B
Option C
Option D
A network engineer must configure the router R1 GigabitEthernet1/1 interface to connect to the router R2 GigabitEthernet1/1 interface. For the configuration to be applied the engineer must compress the address 2001:0db8:0000:0000:0500:000a:400F:583B. Which command must be issued on the interface?
ipv6 address 2001:0db8::5: a: 4F 583B
ipv6 address 2001:db8::500:a:400F:583B
ipv6 address 2001 db8:0::500:a:4F:583B
ipv6 address 2001::db8:0000::500:a:400F:583B
Refer to the exhibit.
A network administrator assumes a task to complete the connectivity between PC A and the File Server. Switch A and Switch B have been partially configured with VLAN 10, 11, 12, and 13. What is the next step in the configuration?
Add PC A to VLAN 10 and the File Server to VLAN 11 fa VLAN segmentation
Add VLAN 13 to the trunk links on Switch A and Switch B for VLAN propagation
Add a router on a stick between Switch A and Switch B allowing for Inter-VLAN routing.
Add PC A to the same subnet as the Fie Server allowing for intra-VLAN communication.
Which goal is achieved by the implementation of private IPv4 addressing on a network?
provides an added level of protection against Internet exposure
provides a reduction in size of the forwarding table on network routers
allows communication across the Internet to other private networks
allows servers and workstations to communicate across public network boundaries
What is a characteristic of spine-and-leaf architecture?
Each device is separated by the same number of hops
It provides variable latency
It provides greater predictability on STP blocked ports.
Each link between leaf switches allows for higher bandwidth.
A router running EIGRP has learned the same route from two different paths Which parameter does the router use to select the best path?
cost
adminstrative distance
metric
as-path
Refer to the exhibit.
An engineer must configure GigabitEthernet1/1 to accommodate voice and data traffic Which configuration accomplishes this task?
Option A
Option B
Option C
Option D
