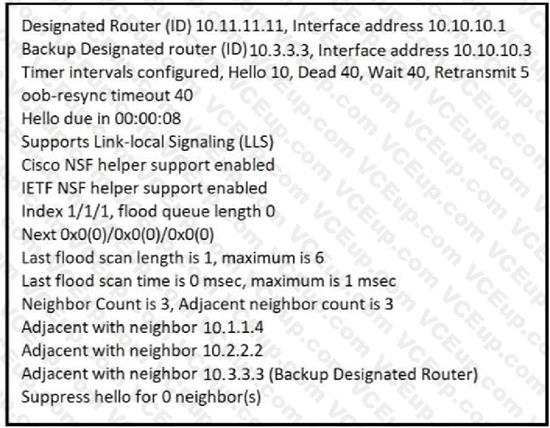

Refer to the exhibit.
The show ip ospf interface command has been executed on R1 How is OSPF configured?
The interface is not participating in OSPF
A point-to-point network type is configured
The default Hello and Dead timers are in use
There are six OSPF neighbors on this interface
Refer to the exhibit.
An engineer is bringing up a new circuit to the MPLS provider on the Gi0/1 interface of Router1 The new circuit uses eBGP and teams the route to VLAN25 from the BGP path What s the expected behavior for the traffic flow for route 10.10.13.0/25?
Traffic to 10.10.13.0.25 is load balanced out of multiple interfaces
Route 10.10.13.0/25 is updated in the routing table as being learned from interface Gi0/1.
Traffic to 10.10.13.0/25 is asymmeteical
Route 10.10.13.0/25 learned via the Gi0/0 interface remains in the routing table

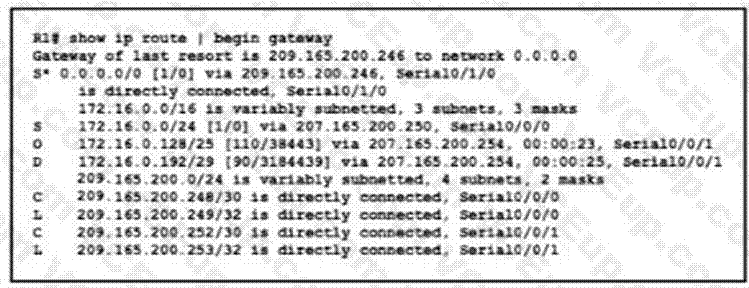

Refer to the exhibit.
With which metric was the route to host 172.16.0.202 learned?
0
110
38443
3184439

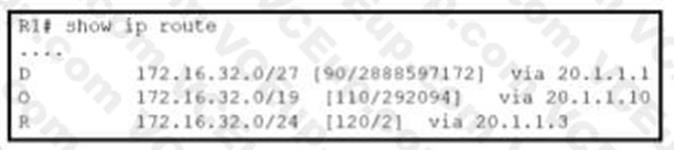

Refer to the exhibit.
Router R1 is running three different routing protocols. Which route characteristic is used by the router to forward the packet that it receives for destination IP 172.16.32.1?
longest prefix
metric
cost
administrative distance
What are two benefits of network automation? (Choose two)
reduced operational costs
reduced hardware footprint
faster changes with more reliable results
fewer network failures
increased network security
An administrator must secure the WLC from receiving spoofed association requests. Which steps must be taken to configure the WLC to restrict the requests and force the user to wait 10 ms to retry an association request?
Enable Security Association Teardown Protection and set the SA Query timeout to 10
Enable MAC filtering and set the SA Query timeout to 10
Enable 802.1x Layer 2 security and set me Comeback timer to 10
Enable the Protected Management Frame service and set the Comeback timer to 10
Which function does an SNMP agent perform?
it sends information about MIB variables in response to requests from the NMS
it requests information from remote network nodes about catastrophic system events.
it manages routing between Layer 3 devices in a network
it coordinates user authentication between a network device and a TACACS+ or RADIUS server
What is the effect when loopback interfaces and the configured router ID are absent during the OSPF Process configuration?
No router ID is set, and the OSPF protocol does not run.
The highest up/up physical interface IP address is selected as the router ID.
The lowest IP address is incremented by 1 and selected as the router ID.
The router ID 0.0.0.0 is selected and placed in the OSPF process.
Refer to the exhibit.
The default-information originate command is configured under the R1 OSPF configuration After testing workstations on VLAN 20 at Site B cannot reach a DNS server on the Internet Which action corrects the configuration issue?
Add the default-information originate command onR2
Configure the ip route 0.0.0.0 0.0.0.0 10.10.10.18 command on R1
Configure the ip route 0.0.0.0 0.0.0.0 10.10.10.2 command on R2
Add the always keyword to the default-information originate command on R1
Refer to Exhibit.
How does SW2 interact with other switches in this VTP domain?
It processes VTP updates from any VTP clients on the network on its access ports.
It receives updates from all VTP servers and forwards all locally configured VLANs out all trunk ports
It forwards only the VTP advertisements that it receives on its trunk ports.
It transmits and processes VTP updates from any VTP Clients on the network on its trunk ports
