Which technology must be implemented to configure network device monitoring with the highest security?
IP SLA
syslog
NetFlow
SNMPv3

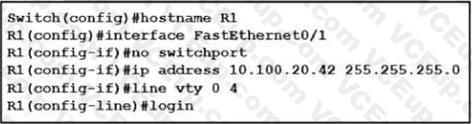

Refer to the exhibit.

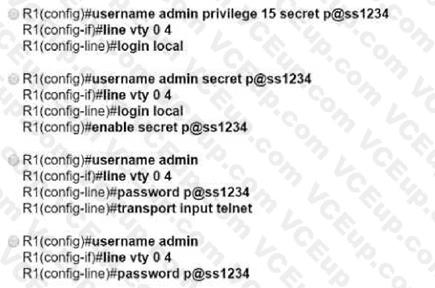

An engineer booted a new switch and applied this configuration via the console port. Which additional configuration must be applied to allow administrators to authenticate directly to enable privilege mode via Telnet using a local username and password?
Option A
Option B
Option C
Option D
Which two actions influence the EIGRP route selection process? (Choose two)
The router calculates the reported distance by multiplying the delay on the exiting Interface by 256.
The router calculates the best backup path to the destination route and assigns it as the feasible successor.
The router calculates the feasible distance of all paths to the destination route
The advertised distance is calculated by a downstream neighbor to inform the local router of the bandwidth on the link
The router must use the advertised distance as the metric for any given route
Which mode must be set for APs to communicate to a Wireless LAN Controller using the Control and Provisioning of Wireless Access Points (CAPWAP) protocol?
bridge
route
autonomous
lightweight
Which configuration is needed to generate an RSA key for SSH on a router?
Configure the version of SSH
Configure VTY access.
Create a user with a password.
Assign a DNS domain name
What makes Cisco DNA Center different from traditional network management applications and their management of networks?
It only supports auto-discovery of network elements in a greenfield deployment.
It modular design allows someone to implement different versions to meet the specific needs of an organization
IT abstracts policy from the actual device configuration
It does not support high availability of management functions when operating in cluster mode
Which two primary drivers support the need for network automation? (Choose two.)
Eliminating training needs
Increasing reliance on self-diagnostic and self-healing
Policy-derived provisioning of resources
Providing a ship entry point for resource provisioning
Reducing hardware footprint
Using direct sequence spread spectrum, which three 2.4-GHz channels are used to limit collisions?
1,6,11
1,5,10
1,2,3
5,6,7
Which port type supports the spanning-tree portfast command without additional configuration?
access ports
Layer 3 main Interfaces
Layer 3 suninterfaces
trunk ports
Refer to the exhibit.
An administrator is tasked with configuring a voice VLAN. What is the expected outcome when a Cisco phone is connected to the GigabitEfriemet3/1/4 port on a switch?
The phone and a workstation that is connected to the phone do not have VLAN connectivity
The phone and a workstation that is connected to the phone send and receive data in VLAN 50.
The phone sends and receives data in VLAN 50, but a workstation connected to the phone has no VLAN connectivity
The phone sends and receives data in VLAN 50, but a workstation connected to the phone sends and receives data in VLAN 1
